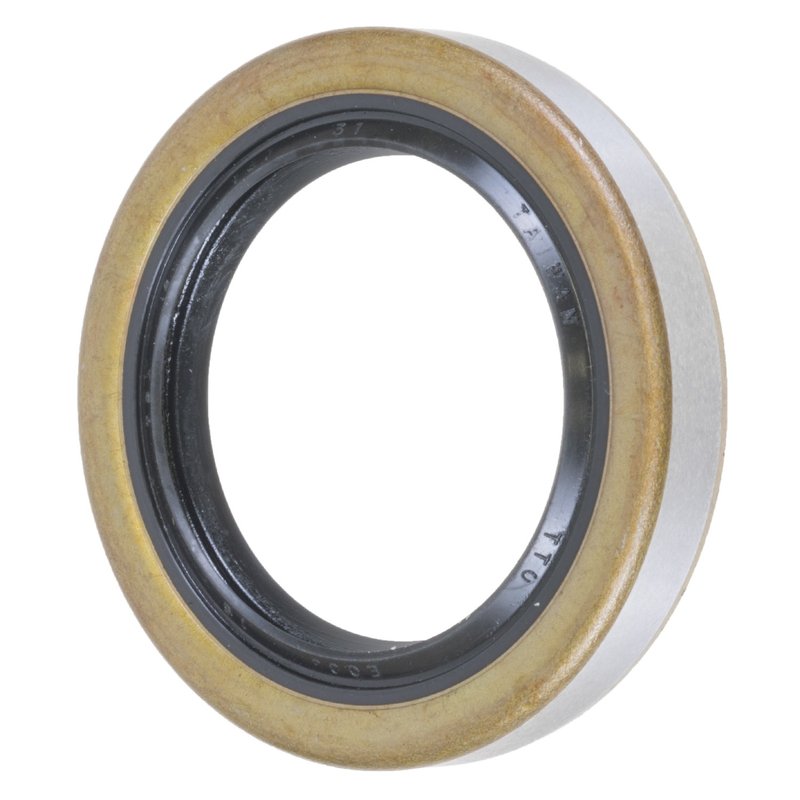

FAG SS2395 Manual Transmission Seal - Rear

Overview of FAG SS2395 Manual Transmission Seal for Chevrolet Corvette

The FAG SS2395 manual transmission seal is engineered specifically for Chevrolet Corvette models, providing reliable sealing performance. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oil and wear
• Bore Diameter: 50.8 mm (2 inches) for precise fitment
• Seal Outside Diameter: Approximately 50.9 mm (2.004 inches)
• Seal Width: 7.95 mm (1.375 inches) for optimal sealing surface

Technical Details and Specifications

The FAG SS2395 manual transmission seal features a robust construction combining a metal case with a spring-loaded auxiliary lip, which maintains consistent pressure against the shaft to prevent fluid leakage. The nitrile sealing material offers excellent resistance to transmission fluids and temperature variations commonly encountered in Chevrolet Corvette transmissions. With a bore diameter of 50.8 mm and an outside diameter near 50.9 mm, this seal fits precisely within the manual transmission housing, ensuring a secure and durable seal. The 7.95 mm width provides sufficient surface area to maintain sealing integrity under operational stresses.

Compatible Vehicles and Applications

This manual transmission seal is compatible with Chevrolet Corvette models requiring a 50.8 mm bore diameter seal. It is designed to replace worn or damaged seals in the transmission system, helping to maintain proper fluid retention and prevent contamination.

• Prevents manual transmission fluid leaks
• Reduces risk of transmission contamination
• Eliminates noise caused by worn seals
• Maintains transmission efficiency and longevity
• Addresses seal wear from heat and mechanical stress

Installation Notes and Tips

When installing the FAG SS2395 seal, ensure the transmission housing and shaft are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip. Lubricate the seal lip with transmission fluid before installation to reduce initial wear. Verify correct orientation of the auxiliary lip to face the fluid side for optimal sealing performance.

Quality Assurance and Warranty

FAG manufactures the SS2395 manual transmission seal to meet strict quality standards, ensuring durability and reliable performance in Chevrolet Corvette transmissions. The seal is produced with precision materials and tested for dimensional accuracy. Warranty coverage details should be confirmed with the supplier or manufacturer.
