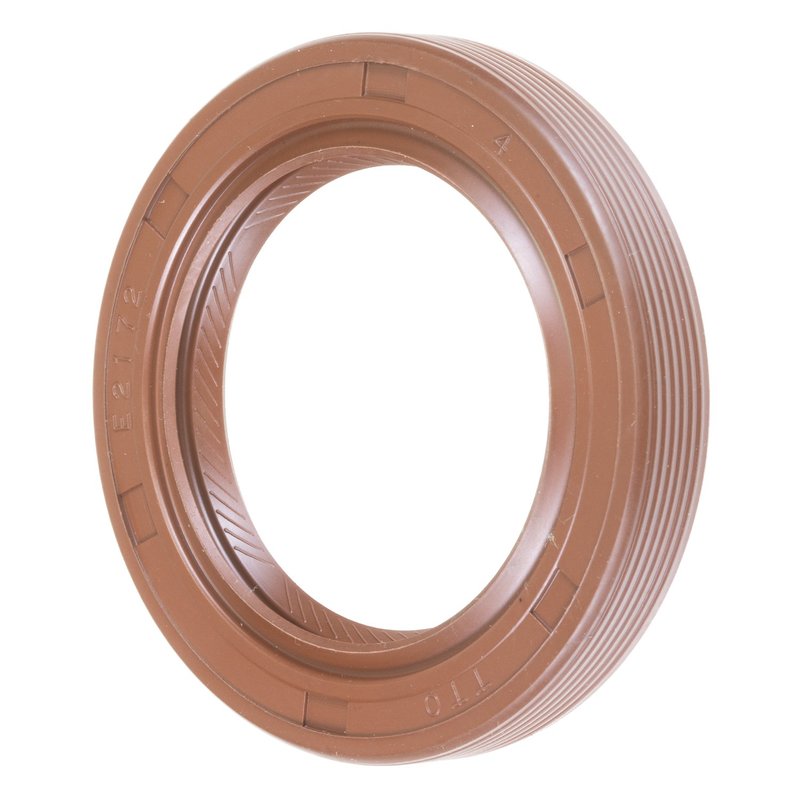

FAG SS2403 Engine Camshaft Seal

Overview of FAG SS2403 Engine Camshaft Seal

The FAG SS2403 engine camshaft seal is designed to provide reliable sealing performance for a variety of vehicle makes and models. Engineered with nitrile sealing material and a rubber spring auxiliary lip, this camshaft seal ensures effective protection against oil leaks and contamination.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound resistant to oil and heat
• Bore Diameter: Approximately 2.047 inches (51.994 mm)
• Seal Outside Diameter: Approximately 2.058 inches (52.273 mm)
• Seal Width: 1.378 inches (8.001 mm)

Technical Details and Specifications

The FAG SS2403 camshaft seal features a precise bore diameter of 2.047 inches (51.994 mm) and an outside diameter of 2.058 inches (52.273 mm), ensuring a secure fit in the engine assembly. The seal width of 1.378 inches (8.001 mm) provides adequate surface area for effective sealing. Constructed from nitrile, the sealing material offers resistance to oil, heat, and wear, which is critical for maintaining engine integrity over time. The rubber seal incorporates a spring and auxiliary lip design to maintain consistent pressure and prevent leaks under varying operating conditions.

Compatible Vehicles and Applications

This engine camshaft seal is compatible with a range of vehicles, including popular models from BMW, Chevrolet, Chrysler, Dodge, Ford, Geo, Mitsubishi, Plymouth, Suzuki, and Toyota. Notable compatible models include BMW 318i, 320i, 325i, 525i, 535i, 635CSi, 740i, and 850Ci; Dodge Caravan and Charger; Ford F-150 and Explorer; Mitsubishi Lancer; Toyota Avalon; and many others. The part number SS2403 is specifically designed to meet the sealing requirements of these vehicles' camshaft assemblies.

Common Issues Addressed by the SS2403 Camshaft Seal

• Prevents oil leaks around the camshaft area
• Reduces engine contamination from external debris
• Maintains proper oil pressure within the engine
• Minimizes wear on camshaft bearings and related components
• Helps avoid costly engine repairs due to seal failure

Installation Notes and Tips

When installing the FAG SS2403 camshaft seal, ensure the sealing surface and bore are clean and free of debris. Proper alignment during installation is critical to avoid damage to the seal or camshaft. Use appropriate tools to press the seal evenly into place without distortion. It is recommended to inspect the camshaft and surrounding components for wear or damage before installation to ensure optimal performance.

Quality Assurance and Warranty

FAG manufactures the SS2403 camshaft seal to meet stringent quality standards, utilizing high-grade nitrile material and precision engineering. While specific warranty details are not provided, FAG products are generally backed by manufacturer quality controls to ensure durability and reliability in automotive applications.
