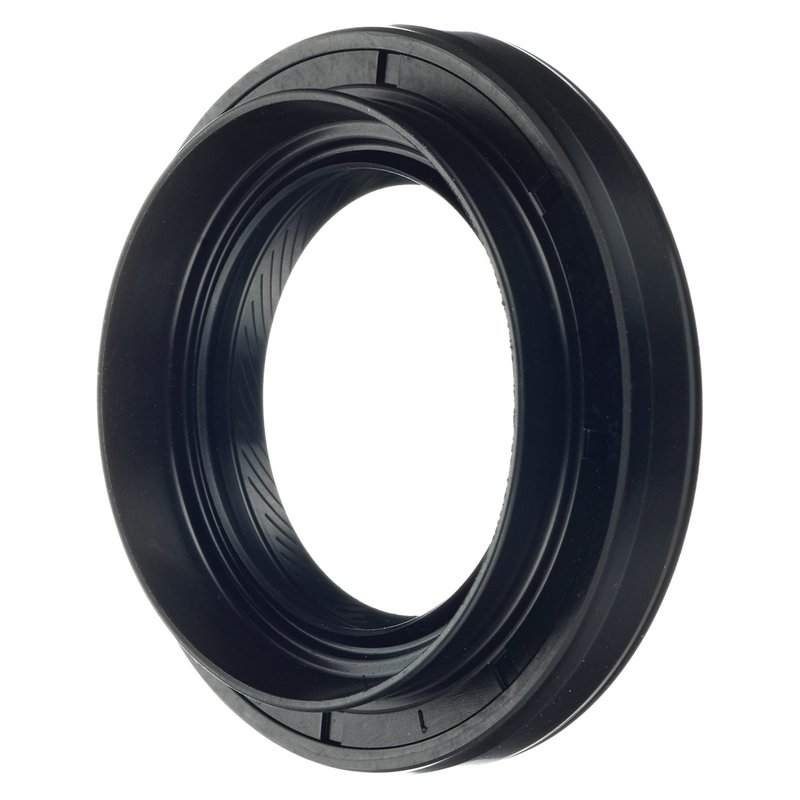

FAG SS2404 Automatic Transmission Output Shaft Seal - Left or Right

Reliable Automatic Transmission Output Shaft Seal for Toyota and Scion

The FAG SS2404 automatic transmission output shaft seal is engineered to provide durable sealing performance for select Toyota and Scion models. Designed with precision, this seal helps maintain transmission integrity by preventing fluid leaks and contamination.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Polyacrylate for chemical and temperature resistance
• Bore Diameter: Approximately 2.244 inches (56.998 mm)
• Seal Outside Diameter: Approximately 2.249 inches (57.125 mm)
• Seal Width: Approximately 1.378 inches (8.992 mm)

Technical Details and Specifications

The FAG SS2404 output shaft seal features a robust rubber construction combined with a spring and auxiliary lip design to ensure a tight seal around the transmission output shaft. The polyacrylate sealing material offers resistance to transmission fluids and high operating temperatures, contributing to long service life. With precise bore and outside diameters, this seal fits securely within the transmission housing, minimizing the risk of leaks. The dimensions include a bore diameter of 2.244 inches (56.998 mm), an outside diameter of 2.249 inches (57.125 mm), and a seal width of 1.378 inches (8.992 mm), making it suitable for specific Toyota and Scion transmissions.

Compatible Vehicles and Applications

This automatic transmission output shaft seal is compatible with the following makes and models:

• Toyota Corolla
• Toyota Matrix
• Toyota Prius
• Scion xD

Use the FAG SS2404 seal when servicing or repairing the automatic transmission output shaft on these vehicles to ensure proper sealing and transmission performance.

Common Issues Addressed by the SS2404 Seal

• Prevents transmission fluid leaks from the output shaft area
• Reduces contamination ingress that can damage transmission components
• Maintains proper hydraulic pressure within the transmission
• Helps avoid premature wear of transmission bearings and gears
• Supports smooth and reliable transmission operation

Installation Notes and Tips

• Ensure the transmission output shaft and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the seal with the spring and auxiliary lip facing the fluid side
• Check for proper fitment dimensions to avoid leaks or seal failure
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

FAG manufactures the SS2404 output shaft seal to meet strict quality standards, using durable materials designed for automotive transmission applications. While specific warranty details may vary, FAG products typically come with a limited warranty against manufacturing defects. Always verify warranty terms with the parts provider or vehicle service documentation.
