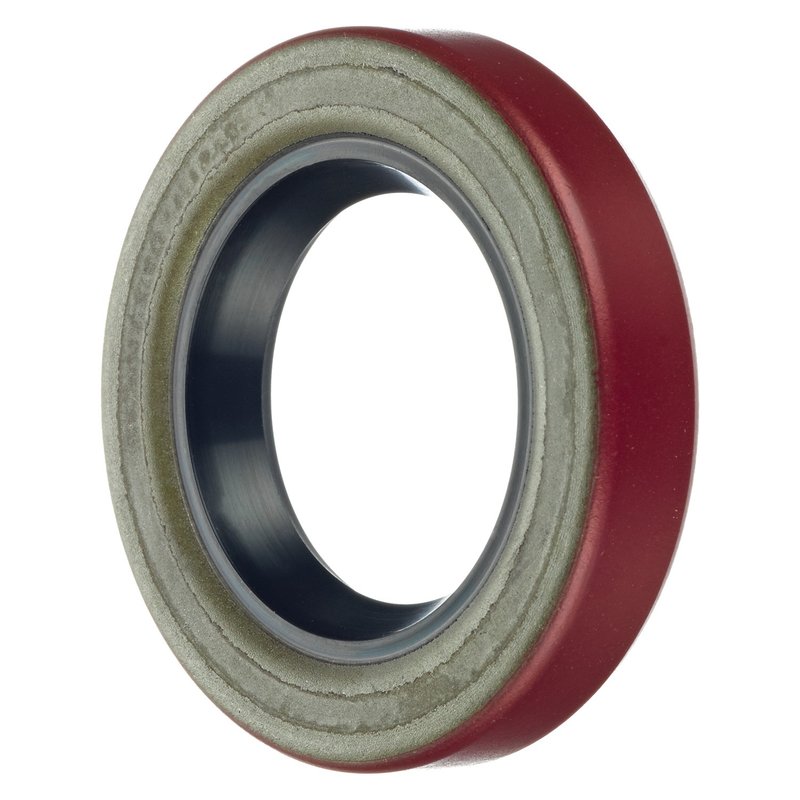

FAG SS2419 Manual Transmission Seal - Rear

Overview of FAG SS2419 Manual Transmission Seal

The FAG SS2419 manual transmission seal is engineered for reliable sealing performance in select Ford, Hyundai, and Mercury vehicles. Designed with durable nitrile sealing material and a metal spring seal type, this part ensures effective protection against leaks in manual transmission systems.

• Seal Type: Metal with spring for secure fit
• Sealing Material: Nitrile for resistance to oils and wear
• Bore Diameter: 2.374 inches (60.3 mm)
• Seal Outside Diameter: 2.378 inches (60.401 mm)
• Seal Width: 1.375 inches (11.049 mm)

Technical Details and Specifications

The SS2419 manual transmission seal features a precise bore diameter of 2.374 inches (60.3 mm) and an outside diameter of 2.378 inches (60.401 mm), ensuring a tight and secure fit within the transmission housing. The seal width of 1.375 inches (11.049 mm) provides adequate surface area for effective sealing. Constructed with nitrile sealing material, it offers resistance to transmission fluids and maintains flexibility under varying temperatures. The metal spring design helps maintain consistent pressure on the sealing lip, reducing the risk of leaks over time.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a range of Ford, Hyundai, and Mercury models, including the Ford Bronco, Colony Park, Cougar, E-100 Econoline, Econoline, LTD, Marauder, Montego, Pony, Stellar, and Thunderbird. The part number SS2419 is specifically designed to meet the sealing requirements of these vehicles' manual transmissions, ensuring proper fit and function.

• Prevents manual transmission fluid leaks
• Reduces contamination ingress into transmission
• Maintains transmission pressure and performance
• Helps avoid premature wear of transmission components
• Supports smooth gear operation by preserving seal integrity

Installation Notes and Tips

When installing the FAG SS2419 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Lubricate the sealing lip with compatible transmission fluid to facilitate proper seating. Verify the seal is fully seated and evenly positioned to prevent leaks. Follow vehicle-specific service manual instructions for torque specifications and installation procedures.

Quality Assurance and Warranty

FAG manufactures the SS2419 manual transmission seal to meet stringent quality standards, using durable materials designed for long service life. While specific warranty details may vary, FAG products typically come with manufacturer-backed warranties covering defects in materials and workmanship. This seal is engineered to provide consistent performance in manual transmission applications for Ford, Hyundai, and Mercury vehicles.
