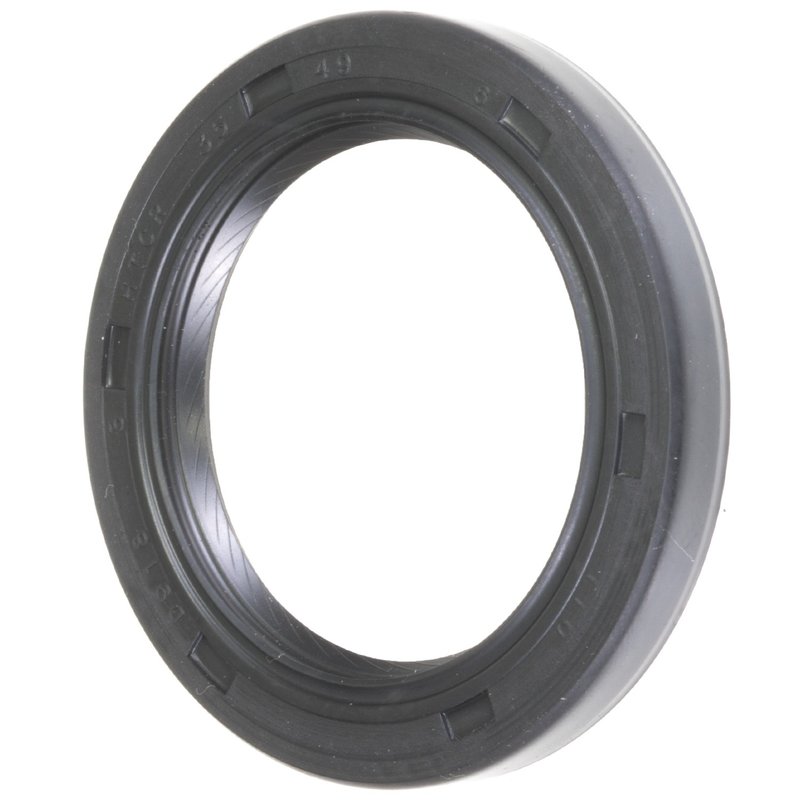

FAG SS2433 Manual Transmission Seal - Front or Rear

Reliable Manual Transmission Seal for Select Toyota and Chevrolet Models

The FAG SS2433 manual transmission seal is engineered to provide durable sealing performance for a range of vehicles including Toyota Corolla, Celica, Supra, and Chevrolet Nova. Designed with nitrile sealing material and a rubber spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound resistant to oil and heat
• Bore Diameter: 1.929 inches (49.0 mm) for precise fitment
• Seal Outside Diameter: Approximately 1.942 inches (49.3 mm)
• Seal Width: 1.378 inches (5.994 mm) for optimal sealing surface

Technical Details and Specifications

The FAG SS2433 manual transmission seal features a nitrile sealing material known for its resistance to petroleum-based fluids and high temperatures, making it suitable for manual transmissions in vehicles such as the Toyota MR2, Tercel, and Chevrolet Pickup. The rubber seal incorporates a spring and auxiliary lip design to maintain consistent pressure against the shaft, preventing fluid leaks and ingress of dirt or debris. With precise bore and outside diameters, this seal fits securely within the transmission housing, ensuring reliable operation over time.

Compatible Vehicles and Applications

This manual transmission seal is compatible with various makes and models, including:

• Toyota Avanza, Celica, Corolla, Cressida, MR2, Paseo, Prizm, Supra, Tercel
• Chevrolet Nova, Pickup
• Geo I-Mark, Impulse
• Isuzu LUV

It is designed specifically for manual transmission sealing systems, helping to maintain transmission fluid integrity and prevent leaks that can lead to transmission damage.

Common Issues Addressed by the FAG SS2433 Seal

• Prevents manual transmission fluid leaks
• Protects against contamination from dirt and debris
• Reduces wear on transmission components by maintaining proper lubrication
• Helps avoid costly transmission repairs due to seal failure
• Maintains consistent sealing pressure with spring-loaded auxiliary lip

Installation Notes and Tips

• Ensure the transmission housing and shaft surfaces are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the seal with the spring and auxiliary lip facing the fluid side
• Check fitment against vehicle specifications for the part number SS2433
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

FAG manufactures the SS2433 manual transmission seal to meet industry standards for durability and performance. The use of nitrile sealing material and precision engineering ensures long service life under normal operating conditions. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support reliability in automotive applications.
