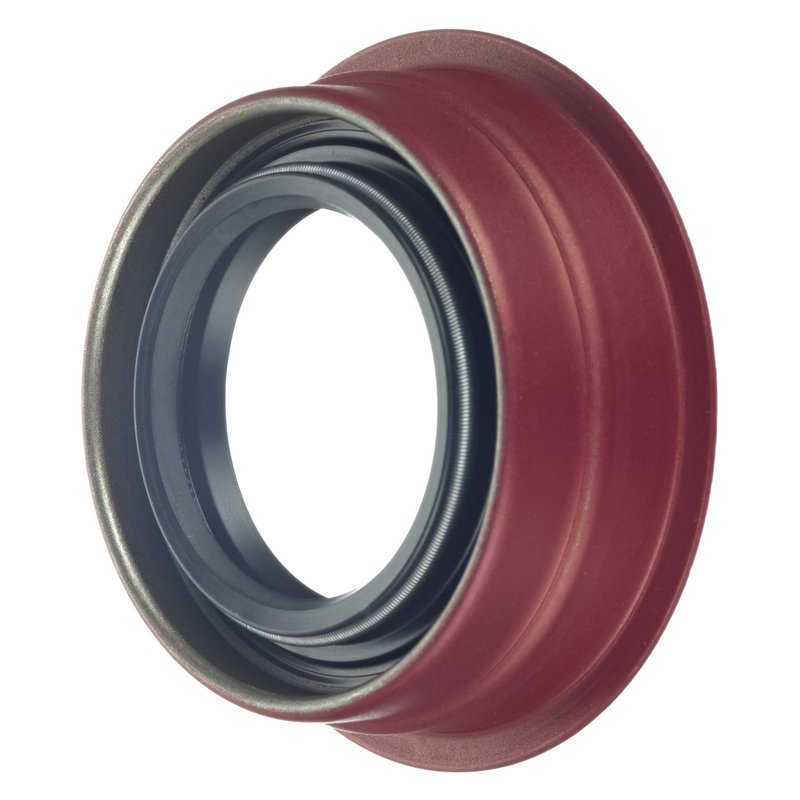

FAG SS2457 Automatic Transmission Output Shaft Seal - Left

Automatic Transmission Output Shaft Seal for GM Applications

FAG SS2457 is an automatic transmission output shaft seal built for left-side applications across a wide range of Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac vehicles. It uses a silicone sealing material with a metal spring and auxiliary lip design to help maintain a tight seal at the transmission output shaft.

For buyers searching for a Buick LeSabre transmission output shaft seal, a Cadillac DeVille output shaft seal, or a Chevrolet Lumina automatic transmission seal, SS2457 provides a direct-fit service part for the listed applications.

Key Features

• Part number: SS2457
• Automatic transmission output shaft seal for left-side applications
• Seal type: metal, spring, auxiliary lip
• Sealing material: silicone
• Bore diameter: 2.24 in. / 56.896 mm
• Seal outside diameter: 2.244 in. / 56.998 mm
• Seal width: 1.378 in. / 19.406 mm
• Cross-reference part numbers include BBB Industries 13959 and National 710096

Detailed Description

FAG SS2457 is engineered for transmission sealing service where dimensional accuracy and material selection matter. The silicone sealing element, spring tension, and auxiliary lip work together to help retain transmission fluid at the output shaft while supporting consistent sealing performance in demanding driveline environments. This part number is listed for numerous GM front-wheel-drive and transaxle applications, including Buick Century, Buick Regal, Buick LeSabre, Cadillac DeVille, Chevrolet Lumina, Oldsmobile Cutlass Supreme, and Pontiac Grand Prix models.

This part cross-references BBB Industries 13959 and National 710096 for the same application. Use SS2457 when replacing a worn or leaking output shaft seal on the specified vehicles, including 1984-1996 Chevrolet Celebrity and 1988-1997 Buick Regal applications.

What It Helps Fix

• Transmission fluid leaking from the output shaft area
• Fluid seepage around the left-side transaxle seal
• Contamination entering the sealed transmission opening
• Seal wear caused by age, heat, and mileage
• Loss of sealing integrity during drivetrain operation

Installation Notes and Tips

Verify the vehicle year, make, model, and left-side application before ordering. Match the seal dimensions to the original part and inspect the shaft surface for scoring, corrosion, or wear before installation. Clean the sealing bore thoroughly and install the seal squarely to avoid distortion. For best results, confirm the transmission code and application notes on vehicles such as Buick Century, Cadillac Fleetwood, and Chevrolet Impala before service.

Quality Assurance

FAG designs sealing components to meet vehicle manufacturer specifications and works with suppliers to maintain FAG quality standards. SS2457 is built to the listed dimensional and material requirements for the confirmed applications.

Compatible Vehicles

• Fits 1998-1999 Buick Century, Left
• Fits 1984-1993 Buick Century, Left
• Fits 1994-1999 Buick LeSabre, Left
• Fits 1994-1999 Buick Park Avenue, Left
• Fits 1995-1999 Buick Riviera, Left
• Fits 1999 Oldsmobile Cutlass, Left
• Fits 1988-1996 Oldsmobile Cutlass, Left
• Fits 1994-1998 Buick Skylark, Left
• Fits 1997-1998 Oldsmobile Silhouette, Left
• Fits 1988-1997 Buick Regal, Left
• Fits 1994-1997 Oldsmobile Cutlass Supreme, Left
• Fits 1988-1992 Oldsmobile Cutlass Supreme, Left
• Fits 1992-1997 Pontiac Trans Sport, Left
• Fits 1994-1996 Chevrolet Corsica, Left
• Fits 1994-1996 Chevrolet Impala, Left
• Fits 1994-1996 Chevrolet Lumina, Left
• Fits 1990-1992 Chevrolet Lumina, Left
• Fits 1992-1996 Chevrolet Lumina APV, Left
• Fits 1995-1996 Chevrolet Monte Carlo, Left
• Fits 1985-1996 Oldsmobile 98, Left
• Fits 1987-1996 Pontiac Bonneville, Left
• Fits 1985-1995 Cadillac DeVille, Left
• Fits 1994-1995 Cadillac Fleetwood, Left
• Fits 1985-1992 Cadillac Fleetwood, Left
• Fits 1992-1995 Oldsmobile 88, Left
• Fits 1985-1993 Buick LeSabre, Left, w/ Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1985-1993 Buick LeSabre, Left, w/Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1991-1993 Buick Park Avenue, Left, w/Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1991-1993 Buick Park Avenue, Left, w/ Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1993 Cadillac 60 Special, Left
• Fits 1986-1993 Cadillac Eldorado, Left
• Fits 1986-1993 Cadillac Seville, Left
• Fits 1983-1993 Oldsmobile Cutlass Ciera, Left
• Fits 1989-1993 Oldsmobile Cutlass Cruiser, Left
• Fits 1987-1992 Cadillac Allante, Left
• Fits 1986-1992 Oldsmobile Toronado, Left
• Fits 1988-1992 Pontiac Grand Am, Left
• Fits 1988-1992 Pontiac Grand Prix, Left
• Fits 1988-1992 Pontiac Sunbird, Left
• Fits 1988-1991 Buick Reatta, Left, w/ Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1988-1991 Buick Reatta, Left, w/Final Drive Assy.; Schaeffler Seal Global Number 413 2457 100
• Fits 1985-1991 Oldsmobile Delta 88, Left
• Fits 1984-1991 Pontiac 6000, Left
• Fits 1984-1990 Chevrolet Celebrity, Left
