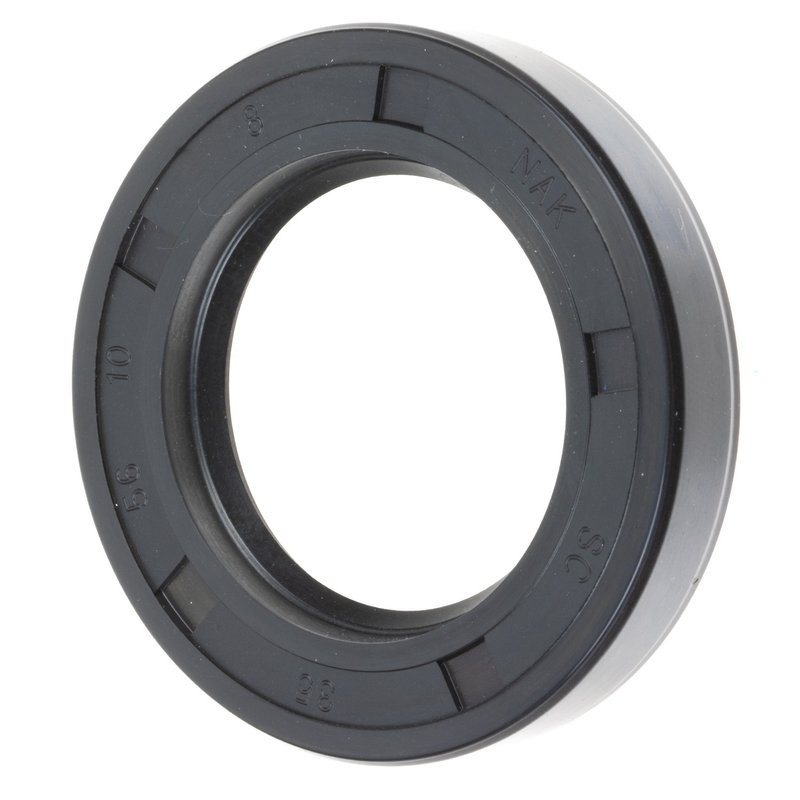

FAG SS2469 Manual Transmission Output Shaft Seal - Left

Reliable Manual Transmission Output Shaft Seal for Honda and Hyundai

The FAG SS2469 manual transmission output shaft seal is engineered to provide durable sealing performance for select Honda, Hyundai, and Mitsubishi models. Designed with nitrile sealing material and a rubber spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound resistant to oil and heat
• Bore Diameter: 56.007 mm (2.205 inches)
• Seal Outside Diameter: 56.261 mm (2.215 inches)
• Seal Width: 10.008 mm (1.378 inches)

Technical Details and Specifications

The FAG SS2469 output shaft seal features a precise bore diameter of 56.007 mm and an outside diameter of 56.261 mm, ensuring a secure fit within the manual transmission housing. The seal width of 10.008 mm provides adequate surface area for effective sealing. Constructed from nitrile, the sealing material offers resistance to transmission fluids and high temperatures, while the rubber spring and auxiliary lip design maintain consistent pressure against the shaft to prevent leaks.

Compatible Vehicles and Applications

This manual transmission output shaft seal is compatible with various Honda, Hyundai, and Mitsubishi models, including the Honda Fit and Precis, Hyundai Elantra, Excel, Sonata, and Mitsubishi Scoupe. The part number SS2469 is specifically designed to meet the sealing requirements of these vehicles' manual transmissions, ensuring proper fit and function.

• Prevents transmission fluid leaks from the output shaft area
• Protects transmission internals from dirt and contaminants
• Maintains proper lubrication within the manual transmission
• Reduces wear on transmission components by maintaining seal integrity

Installation Notes and Tips

When installing the FAG SS2469 output shaft seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect the shaft for wear or damage before installation to prevent premature seal failure.

Quality Assurance and Warranty

FAG manufactures the SS2469 output shaft seal to meet strict quality standards, using high-grade nitrile material and precision molding techniques. This part is designed for durability and reliable performance in manual transmissions. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support long-term use in compatible Honda, Hyundai, and Mitsubishi vehicles.
