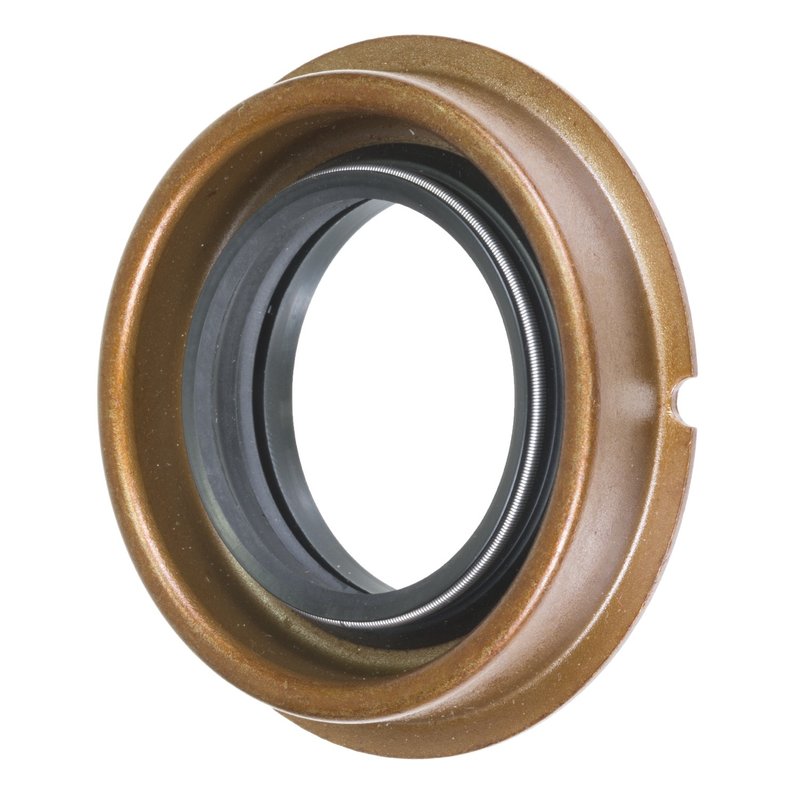

FAG SS2483 Manual Transmission Output Shaft Seal - Front, Left or Right

Reliable Manual Transmission Output Shaft Seal for Select Vehicles

The FAG SS2483 manual transmission output shaft seal is engineered to provide effective sealing and durability for various manual transmission applications. Designed with precision, this seal is compatible with multiple makes and models including Chevrolet, Dodge, Geo, Mitsubishi, Plymouth, and Toyota vehicles.

Key Features of the FAG SS2483 Output Shaft Seal

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing performance
• Sealing Material: Polyacrylate, offering resistance to transmission fluids and wear
• Bore Diameter: 54 mm (2.126 inches) ensuring a precise fit
• Seal Outside Diameter: 54.28 mm (2.137 inches) for secure installation
• Seal Width: 7.01 mm (1.417 inches) providing optimal sealing depth

Detailed Description and Specifications

The FAG SS2483 output shaft seal is constructed with a rubber compound reinforced by a spring and an auxiliary lip, which helps maintain a tight seal under varying operating conditions. The polyacrylate sealing material is selected for its compatibility with transmission fluids and its ability to withstand temperature fluctuations and mechanical stress. With a bore diameter of 54 mm and an outside diameter of 54.28 mm, this seal fits precisely in the manual transmission output shaft housing, minimizing the risk of leaks and contamination.

This seal is suitable for use in manual transmissions of several vehicle models such as the Toyota Celica, Corolla, Echo, MR2, and Tercel; Mitsubishi Eclipse, Galant, Laser, and Expo; Chevrolet Nova; Dodge Colt and Plymouth Prizm. The part number SS2483 ensures you receive the exact replacement part designed for these applications.

Common Applications and Issues Addressed

• Prevents transmission fluid leaks from the output shaft area
• Reduces contamination ingress that can damage transmission components
• Maintains proper lubrication within the manual transmission system
• Helps avoid premature wear of transmission bearings and gears
• Ensures consistent transmission performance and longevity

Installation Notes and Tips

• Ensure the transmission output shaft and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify the seal orientation matches the original part to maintain proper sealing
• Check for any signs of wear or damage on the shaft that could affect seal performance
• Consult vehicle-specific service manuals for torque specifications and installation procedures

Quality Assurance and Warranty Information

FAG manufactures the SS2483 output shaft seal to meet strict quality standards, ensuring reliable performance in demanding automotive environments. The seal undergoes rigorous testing for material integrity and dimensional accuracy. While specific warranty details may vary, FAG products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
