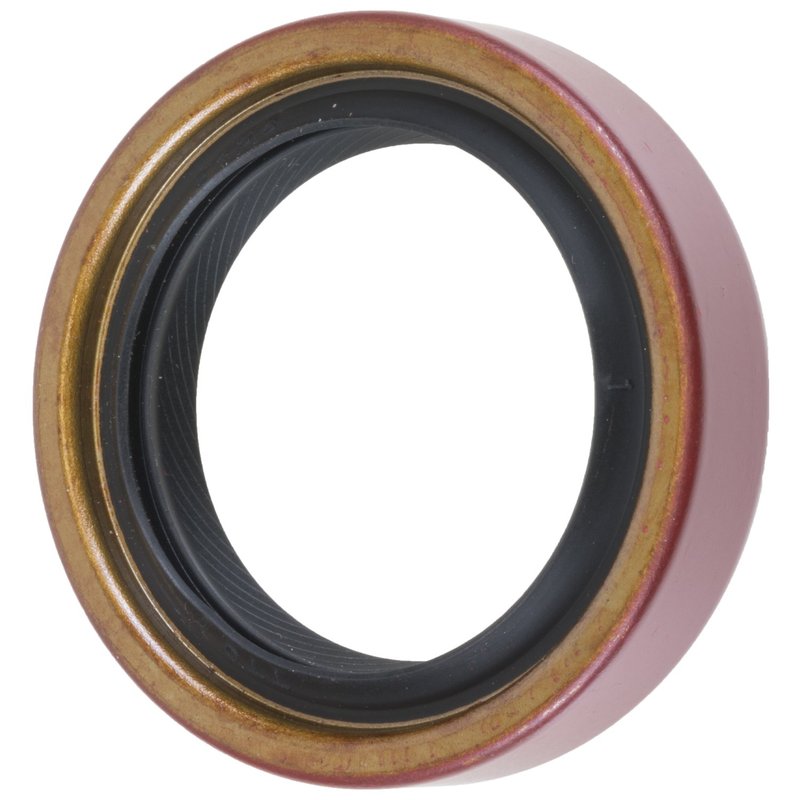

FAG SS2514 Manual Transmission Seal - Rear

Reliable Manual Transmission Seal for Chevrolet and GMC Vehicles

The FAG SS2514 manual transmission seal is engineered to provide durable sealing performance for select Chevrolet and GMC models. Designed with nitrile sealing material and a rubber spring seal type, this part ensures effective protection against leaks and contamination.

• Seal Type: Rubber with spring for secure fit
• Sealing Material: Durable nitrile compound
• Bore Diameter: 54 mm (2.126 inches)
• Seal Outside Diameter: 54.28 mm (2.137 inches)
• Seal Width: 10.008 mm (1.496 inches)

Technical Details and Specifications

The FAG SS2514 manual transmission seal features a nitrile sealing material known for its resistance to oils and wear, making it suitable for transmission applications. The rubber spring seal type maintains consistent pressure around the bore diameter of 54 mm, ensuring a tight seal. With an outside diameter of 54.28 mm and a width of 10.008 mm, this seal fits precisely within the manual transmission assembly to prevent fluid leaks and protect internal components.

Compatible Vehicles and Applications

This manual transmission seal is compatible with various Chevrolet and GMC models, including the Chevrolet Jimmy, S10, S10 Blazer, S15 Jimmy, and GMC Sonoma. The part number SS2514 is specifically designed to meet the sealing requirements of these vehicles' manual transmissions, providing reliable performance in demanding driving conditions.

• Prevents manual transmission fluid leaks
• Protects transmission internals from dirt and debris
• Maintains proper lubrication within the transmission
• Reduces wear on transmission components
• Ensures smooth gear operation and longevity

Installation Notes and Tips

When installing the FAG SS2514 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Proper alignment during installation is critical to avoid damage to the seal or transmission components. Use appropriate tools to press the seal evenly into place without distortion. Verify the seal’s fitment with the specific Chevrolet or GMC model to ensure compatibility.

Quality Assurance and Warranty

FAG manufactures the SS2514 manual transmission seal to meet industry standards for durability and performance. The use of nitrile sealing material and a rubber spring design contributes to long-lasting service life. While specific warranty details are not provided, FAG products typically adhere to strict quality control processes to ensure reliability in automotive applications.
