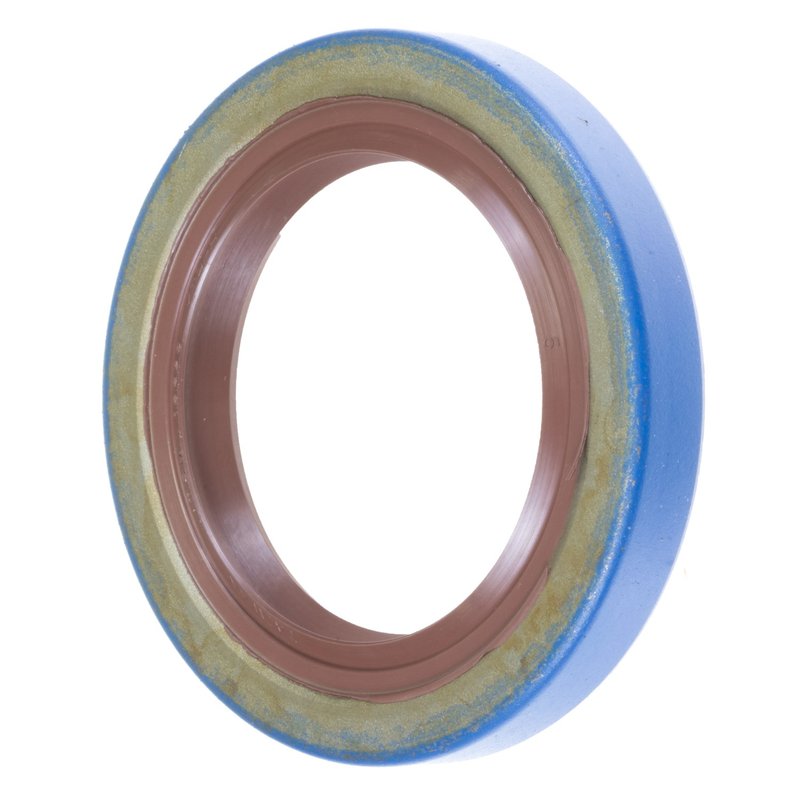

FAG SS2555 Manual Transmission Seal - Front or Rear

Overview of FAG SS2555 Manual Transmission Seal

The FAG SS2555 manual transmission seal is engineered for reliable sealing performance in select Chrysler, Dodge, and Plymouth vehicles. Designed to maintain transmission integrity, this seal is compatible with models such as the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable Viton compound for resistance to heat and chemicals
• Bore Diameter: 2.25 inches (57.15 mm)
• Seal Outside Diameter: 2.254 inches (57.252 mm)
• Seal Width: 1.5 inches (7.95 mm)

Technical Details and Specifications

The SS2555 manual transmission seal features a metal construction with an integrated spring and auxiliary lip, providing a secure and consistent seal under varying operating conditions. The use of Viton as the sealing material ensures excellent resistance to transmission fluids, high temperatures, and wear. With precise bore and outside diameters of approximately 2.25 inches and 2.254 inches respectively, this seal fits tightly within the transmission housing to prevent leaks. The 1.5-inch width contributes to its durability and sealing effectiveness.

Compatible Vehicles and Applications

This manual transmission seal is specifically designed for use in Chrysler, Dodge, and Plymouth vehicles, including the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. The part number SS2555 corresponds to OEM specifications, making it suitable for maintenance or repair of manual transmissions in these vehicles.

• Prevents transmission fluid leaks in manual transmissions
• Maintains proper lubrication and pressure within the transmission
• Reduces risk of contamination entering the transmission system
• Helps avoid premature wear of transmission components
• Supports smooth gear operation and shifting performance

Installation Notes and Tips

When installing the FAG SS2555 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Proper alignment during installation is critical to avoid damage to the seal lips and to ensure an effective seal. Use appropriate tools to press the seal evenly into place without distortion. Verify compatibility with your specific vehicle model and transmission type before installation.

Quality Assurance and Warranty

FAG manufactures the SS2555 manual transmission seal to meet stringent quality standards, ensuring reliable performance and durability. The use of Viton sealing material and metal spring design reflects a focus on longevity and resistance to harsh operating conditions. Warranty coverage details should be confirmed with the parts provider or manufacturer documentation.
