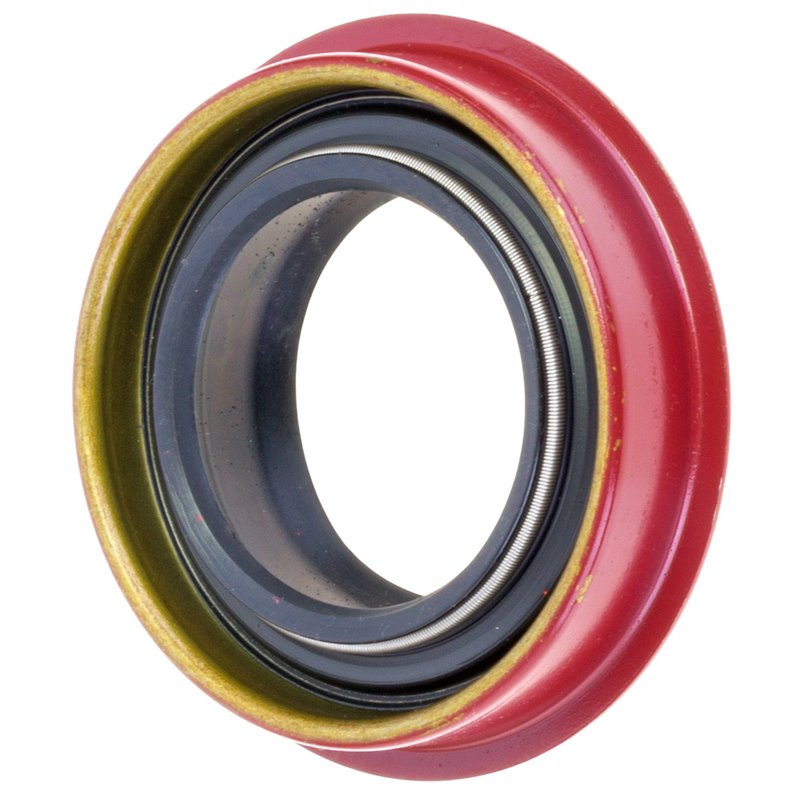

FAG SS2561 Manual Transmission Seal - Rear

Reliable Manual Transmission Seal for Chevrolet and Ford Vehicles

The FAG SS2561 manual transmission seal is engineered to provide durable sealing performance for a range of Chevrolet, Ford, GMC, Jeep, Lincoln, and Mercury models. Designed with a metal spring auxiliary lip and nitrile sealing material, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile for resistance to oils and wear
• Bore Diameter: 2.372 inches (60.249 mm)
• Seal Outside Diameter: 2.376 inches (60.35 mm)
• Seal Width: 1.5 inches (9.525 mm)

Technical Details and Specifications

The FAG SS2561 manual transmission seal features a robust metal construction combined with a spring-loaded auxiliary lip that maintains consistent contact with the shaft, reducing the risk of fluid leaks. The nitrile sealing material offers excellent resistance to transmission fluids, heat, and mechanical wear, making it suitable for demanding automotive applications. With precise bore and outside diameters, this seal fits tightly within the transmission housing to maintain optimal sealing integrity.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a wide range of vehicles, including Chevrolet Bobcat, Bronco, Capri, and Corvette models; Ford F-100, F-150, F-250, F-350, Mustang, Ranger, and Thunderbird; GMC K3500 and Sierra; Jeep Cherokee, Grand Cherokee, Liberty, and Wrangler; Lincoln Continental, Mark VII, and Town Car; as well as Mercury Cougar, Marquis, and Zephyr. The part number SS2561 is specifically designed to meet the sealing requirements of these models' manual transmissions.

Common Issues Addressed by the SS2561 Seal

• Prevents manual transmission fluid leaks that can cause shifting problems
• Protects transmission internals from dirt and contaminants
• Reduces wear on transmission shafts by maintaining proper lubrication
• Helps maintain consistent transmission performance and longevity
• Eliminates noise and vibration caused by faulty seals

Installation Notes and Tips

• Ensure the transmission housing and shaft surfaces are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the auxiliary lip to face the fluid side
• Check fitment against vehicle specifications to confirm compatibility
• Inspect the seal for any damage prior to installation

Quality Assurance and Warranty

FAG manufactures the SS2561 manual transmission seal to meet strict quality standards, ensuring reliable performance in demanding automotive environments. The seal is made from high-grade materials and undergoes rigorous testing to verify durability and sealing effectiveness. While specific warranty details may vary, FAG products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
