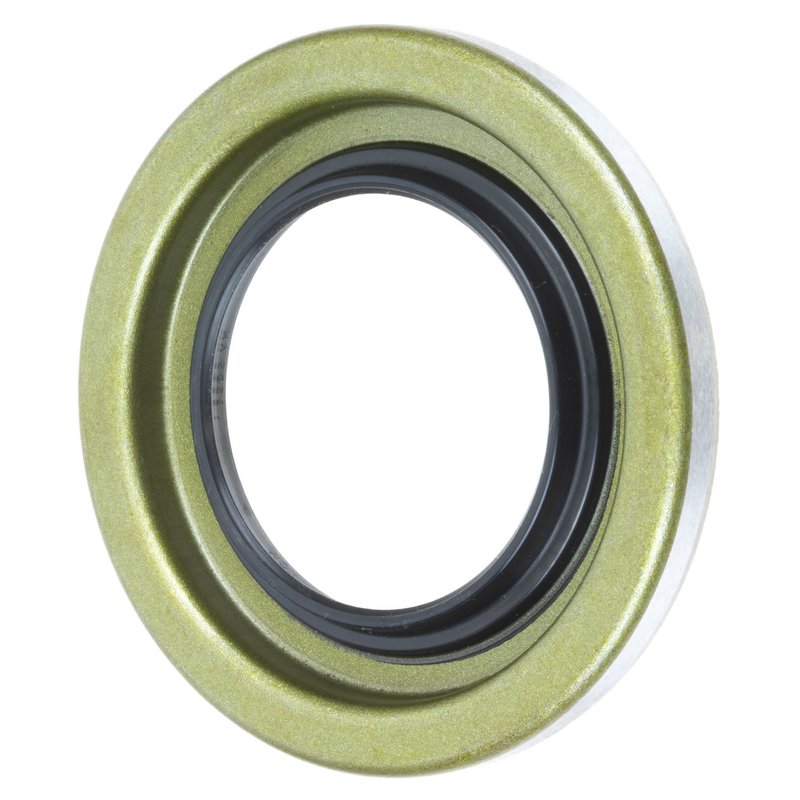

FAG SS2580 Axle Spindle Seal - Front

FAG SS2580 Axle Spindle Seal Overview

The FAG SS2580 axle spindle seal is a metal seal with nitrile sealing material, built for front wheel-end service where contamination control matters. It is engineered to help keep dirt, dust, and moisture out of the bearing area while retaining grease at the spindle seal location.

Compatible With 1975-1985 Dodge W200, W300, W250, and W350 front axle applications, this seal is sized for specific wheel-end dimensions and vehicle class requirements. The FAG SS2580 is a direct-fit style option for front axle spindle seal replacement on these Dodge trucks.

Key Features

• Part number: SS2580
• Axle spindle seal / wheel seal application
• Metal seal type with nitrile sealing material
• Bore diameter: 2.623 in. / 66.624 mm
• Seal outside diameter: 2.627 in. / 66.726 mm
• Seal width: 1.5 in. / 38.1 mm
• Front position fitment for select Dodge W-series trucks

Detailed Description

FAG SS2580 is designed for wheel-end sealing where precise dimensions are critical. The metal construction and nitrile sealing surface are specified to support a secure seal at the spindle, helping protect bearing components from road contamination and helping maintain grease retention over time. This part cross-references Bosch 15190 for the same application.

Fits 1975-1980 Dodge W200, front; fits 1975-1979 Dodge W300, front; fits 1981-1985 Dodge W250, front; and fits 1981-1985 Dodge W350, front. For Dodge W200 and Dodge W300 front axle service, the SS2580 provides the dimensional match needed for the listed applications.

What This Seal Helps Address

• Grease loss at the wheel-end seal area
• Ingress of dirt, dust, and moisture into the bearing cavity
• Wear caused by contaminated wheel-end lubrication
• Seal replacement on front axle spindle service
• Dimensional mismatch during Dodge W-series front hub repair

Installation Notes and Tips

Verify bore diameter, outside diameter, and seal width before installation to confirm the seal matches the hub and spindle dimensions. Clean the sealing surfaces thoroughly, inspect the spindle and hub for wear or scoring, and install the seal squarely to avoid distortion. Always confirm front-position application and vehicle year before ordering.

Quality Assurance

FAG wheel seals are built to meet vehicle manufacturer specifications using materials selected for wheel-end sealing performance. The SS2580 is produced to FAG quality standards for the listed Dodge front axle applications.
