FAG SS2613 Transfer Case Output Shaft Seal - Front or Rear

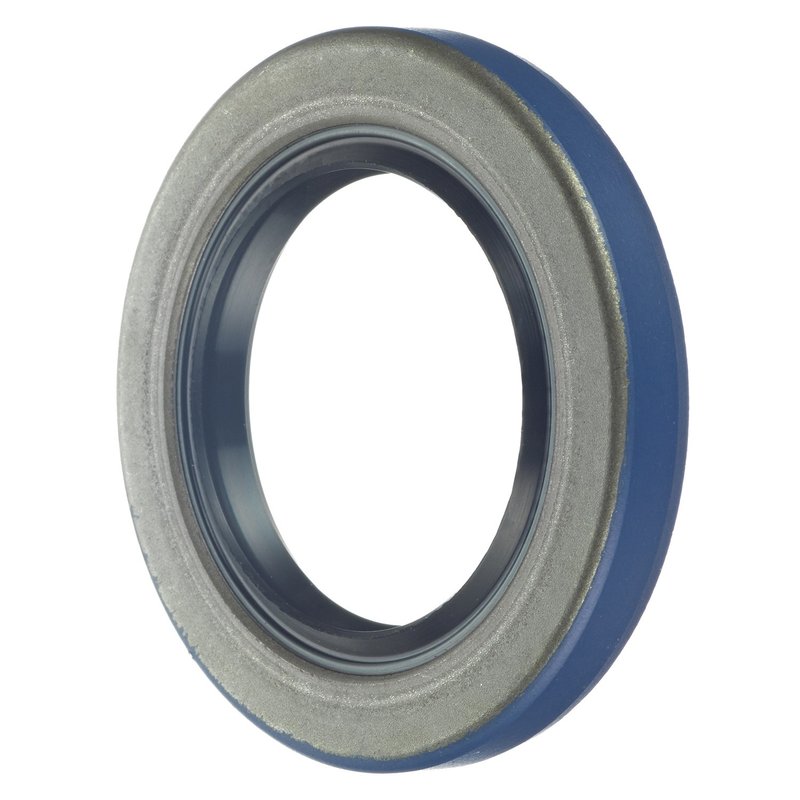

Overview of FAG Transfer Case Output Shaft Seal SS2613

The FAG SS2613 transfer case output shaft seal is engineered for reliable sealing performance in Ford Bronco and Jeep Scrambler vehicles. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to wear and fluids
• Bore Diameter: 2.502 inches (63.551 mm)
• Seal Outside Diameter: 2.506 inches (63.652 mm)
• Seal Width: 1.563 inches (7.95 mm)

Technical Details and Specifications

The SS2613 transfer case output shaft seal features precise dimensions to fit transfer cases on select Ford and Jeep models. The bore diameter of approximately 2.5 inches and outside diameter near 2.5 inches provide a tight fit to prevent fluid leakage. The seal width of 1.563 inches ensures adequate surface contact for durability. Constructed with a metal casing and spring-energized auxiliary lip, the seal maintains consistent pressure against the shaft. The nitrile sealing material offers resistance to oil, grease, and temperature variations commonly encountered in transfer case environments.

Compatible Vehicles and Applications

This transfer case output shaft seal SS2613 is compatible with the following vehicles:

• Ford Bronco transfer case sealing systems
• Jeep Scrambler transfer case output shaft sealing

It is designed specifically for transfer case gaskets and sealing systems, providing a reliable seal to prevent fluid leaks and maintain transfer case integrity.

Common Issues Addressed by the SS2613 Seal

• Prevents transfer case fluid leaks around the output shaft
• Reduces contamination ingress that can damage internal components
• Maintains proper lubrication by sealing fluid within the transfer case
• Minimizes wear on the output shaft and surrounding parts
• Helps avoid costly transfer case repairs due to seal failure

Installation Notes and Tips

• Ensure the transfer case output shaft and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the metal casing or sealing lip during installation
• Verify correct orientation of the seal with the auxiliary lip facing the fluid side
• Check dimensions against the original seal to confirm compatibility
• Apply a light coating of transfer case fluid to the sealing lip before installation for easier fitment

Quality Assurance and Warranty

The FAG SS2613 transfer case output shaft seal is manufactured to meet OEM standards for durability and performance. The use of nitrile sealing material and metal spring auxiliary lip ensures long-lasting service life under typical operating conditions. While specific warranty details are not provided, FAG products are generally backed by quality control processes to ensure reliability in automotive applications.
