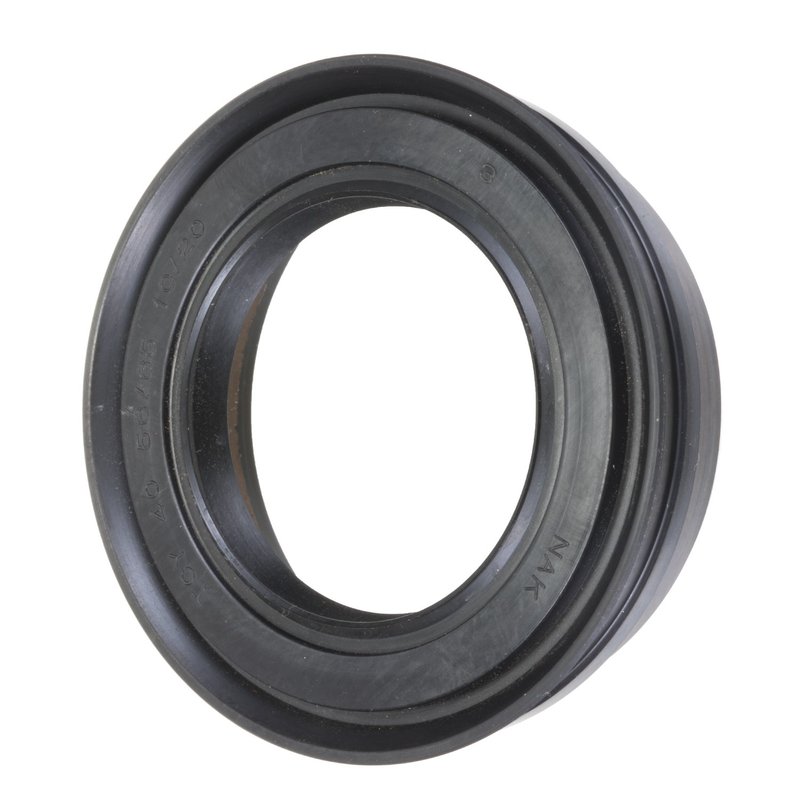

FAG SS2630 Manual Transmission Output Shaft Seal - Front, Rear or Right

Reliable Manual Transmission Output Shaft Seal for Mazda, Toyota, and Scion

The FAG SS2630 manual transmission output shaft seal is engineered to provide durable sealing performance for select Mazda, Toyota, and Scion models. Designed with high-quality polyacrylate sealing material and a rubber spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Polyacrylate for resistance to heat and wear
• Bore Diameter: 2.519 inches (63.983 mm)
• Seal Outside Diameter: 2.524 inches (64.11 mm)
• Seal Width: 1.575 inches (8.992 mm)

Technical Details and Specifications

The FAG SS2630 output shaft seal features a precise bore diameter of 2.519 inches (63.983 mm) and an outside diameter of 2.524 inches (64.11 mm), ensuring a tight fit within the manual transmission housing. The seal width of 1.575 inches (8.992 mm) provides adequate surface area for effective sealing. Constructed with a rubber spring and auxiliary lip design, this seal maintains consistent pressure against the shaft to prevent fluid leakage. The polyacrylate sealing material offers excellent resistance to transmission fluids and high operating temperatures, making it suitable for demanding driving conditions.

Compatible Vehicles and Applications

This manual transmission output shaft seal is compatible with various Mazda, Toyota, and Scion models, including:

• Mazda MX-5 Miata
• Toyota Camry, Corolla, Highlander, Matrix, RAV4, Solara
• Scion tC, xB

Use the FAG SS2630 seal when replacing worn or damaged output shaft seals in these vehicles to maintain transmission integrity and prevent leaks.

Common Issues Addressed by the SS2630 Seal

• Prevents manual transmission fluid leaks around the output shaft
• Reduces contamination ingress that can damage transmission components
• Maintains proper lubrication within the transmission system
• Minimizes wear on the output shaft and surrounding parts
• Helps avoid costly transmission repairs due to seal failure

Installation Notes and Tips

• Ensure the transmission output shaft and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Apply a light coating of transmission fluid or compatible lubricant to the seal lip for easier fitting
• Verify correct orientation of the seal with the spring lip facing the fluid side
• Check for proper seating and alignment to prevent premature wear or leaks

Quality Assurance and Warranty

FAG manufactures the SS2630 output shaft seal to meet strict quality standards, ensuring reliable performance and durability. The use of polyacrylate sealing material and robust rubber spring design contributes to long service life under normal operating conditions. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality guarantees to support professional automotive repairs.
