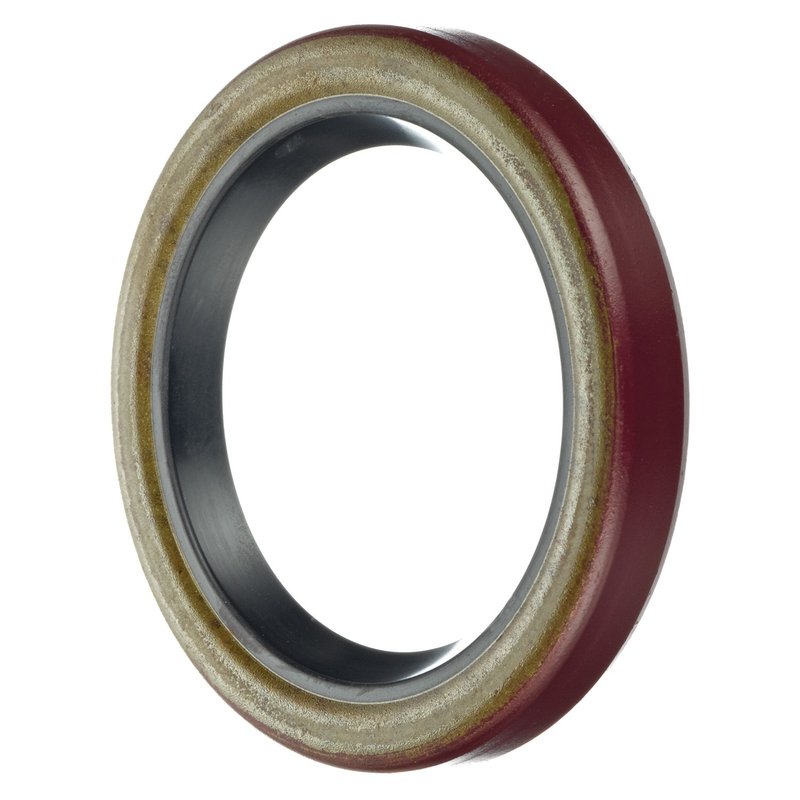

FAG SS2671 Drive Axle Shaft Seal - Front Right

Drive Axle Shaft Seal for Jeep Front Right

FAG SS2671 is a front right drive axle shaft seal built for Jeep applications that need reliable sealing at the wheel end. It uses a metal and spring seal design with nitrile sealing material to help keep contamination out and retain grease where it belongs.

Fits 1974-1992 Jeep Cherokee, front right; 1975-1986 Jeep Cherokee, front right; 1986-1992 Jeep Comanche, front right; 1986 Jeep Comanche, front right; 1982-1986 Jeep CJ7, front right; 1982-1985 Jeep Scrambler, front right; 1982-1983 Jeep CJ5, front right; 1987-1992 Jeep Wrangler, front right; 1984-1990 Jeep Wagoneer, front right; 1975-1986 Jeep Wagoneer, front right; 1974 Jeep Wagoneer, front right.

Key Features

• Part number: FAG SS2671
• Seal type: metal with spring
• Sealing material: nitrile
• Bore diameter: 2.282 in. / 57.963 mm
• Seal outside diameter: 2.286 in. / 58.064 mm
• Seal width: 1.625 in. / 7.95 mm
• Built for front right wheel-end sealing on listed Jeep models

Detailed Description

FAG SS2671 is a drive axle shaft seal engineered to match vehicle-specific requirements for Jeep front right wheel-end service. The metal and spring construction supports consistent sealing contact, while the nitrile sealing material is selected for durability in demanding driveline environments. This seal is sized with a 2.282-inch bore diameter, 2.286-inch outside diameter, and 1.625-inch width for the listed applications.

This part cross-references Carlson 16083 and Timken 710204 for the same application. It is a direct-fit option for many Jeep Cherokee, Jeep Comanche, Jeep Wrangler, Jeep Wagoneer, CJ7, CJ5, and Scrambler front right positions where the specified seal dimensions and axle configuration match.

What It Helps Address

• Grease loss at the wheel end
• Dirt, dust, and moisture intrusion into sealed driveline components
• Seal wear that can lead to axle-end leakage
• Service issues on front right Jeep axle assemblies
• Replacement needs for worn or damaged axle shaft seals

Installation Notes and Tips

Verify the axle configuration, seal dimensions, and front right position before installation. Clean the bore and surrounding housing thoroughly, and inspect the shaft surface for wear, scoring, or corrosion that could affect sealing performance. Proper seating is important for maintaining the seal’s contact and preventing leaks.

Quality Assurance

FAG designs these wheel seals using high-quality materials and application-specific specifications to meet vehicle manufacturer requirements. The seal is built to protect wheel-end components from contamination and help retain grease over the life of the bearing.
