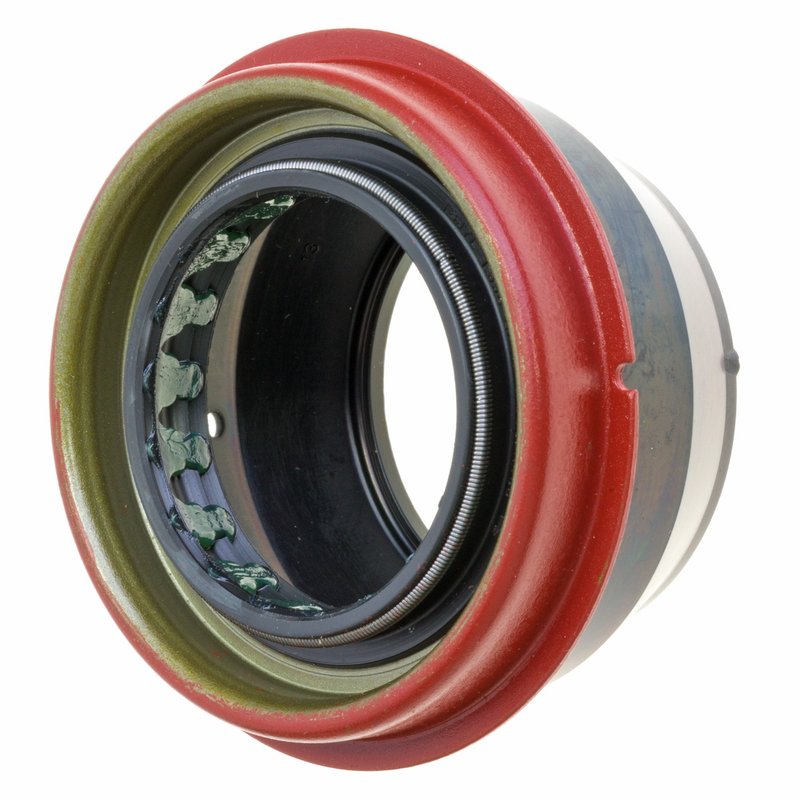

FAG SS2680 Automatic Transmission Seal - Rear

Overview of FAG SS2680 Automatic Transmission Seal

The FAG SS2680 is a precision-engineered automatic transmission seal designed for select Ford and Lincoln vehicles. Specifically compatible with Ford Crown Victoria, Lincoln Mark VIII, and Lincoln Town Car models, this seal ensures reliable transmission performance and fluid retention.

• Seal Type: Metal construction with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable Viton for resistance to heat and chemicals
• Bore Diameter: Approximately 2.48 inches (62.992 mm)
• Seal Outside Diameter: Approximately 2.485 inches (63.119 mm)
• Seal Width: 1.614 inches (8.89 mm)

Technical Details and Specifications

The FAG SS2680 automatic transmission seal features a metal body combined with a spring and auxiliary lip design, providing a secure and effective seal within the transmission assembly. The use of Viton as the sealing material offers superior resistance to high temperatures and transmission fluids, which is critical for maintaining seal integrity over time. The bore diameter measures 2.48 inches, while the outside diameter is 2.485 inches, ensuring a precise fit. The seal width of 1.614 inches supports proper sealing surface contact, reducing the risk of leaks.

Compatible Vehicles and Applications

This transmission seal is compatible with the following vehicles:

• Ford Crown Victoria
• Lincoln Mark VIII
• Lincoln Town Car

It is designed to replace worn or damaged seals in automatic transmissions, helping to maintain fluid containment and transmission efficiency.

Common Issues Addressed by FAG SS2680

• Prevents transmission fluid leaks that can cause slipping or shifting problems
• Reduces contamination ingress to protect transmission components
• Maintains proper hydraulic pressure within the transmission system
• Minimizes premature wear of transmission parts due to fluid loss
• Helps avoid costly transmission repairs related to seal failure

Installation Notes and Tips

• Ensure the transmission housing and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the metal spring and auxiliary lip for optimal sealing
• Check dimensions against the original seal to confirm compatibility
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

FAG manufactures the SS2680 transmission seal to meet strict quality standards, using high-grade materials such as Viton for durability and performance. While specific warranty details may vary, FAG products typically come with manufacturer-backed warranties covering defects in materials and workmanship. This ensures confidence in the seal’s reliability for Ford Crown Victoria, Lincoln Mark VIII, and Lincoln Town Car transmissions.
