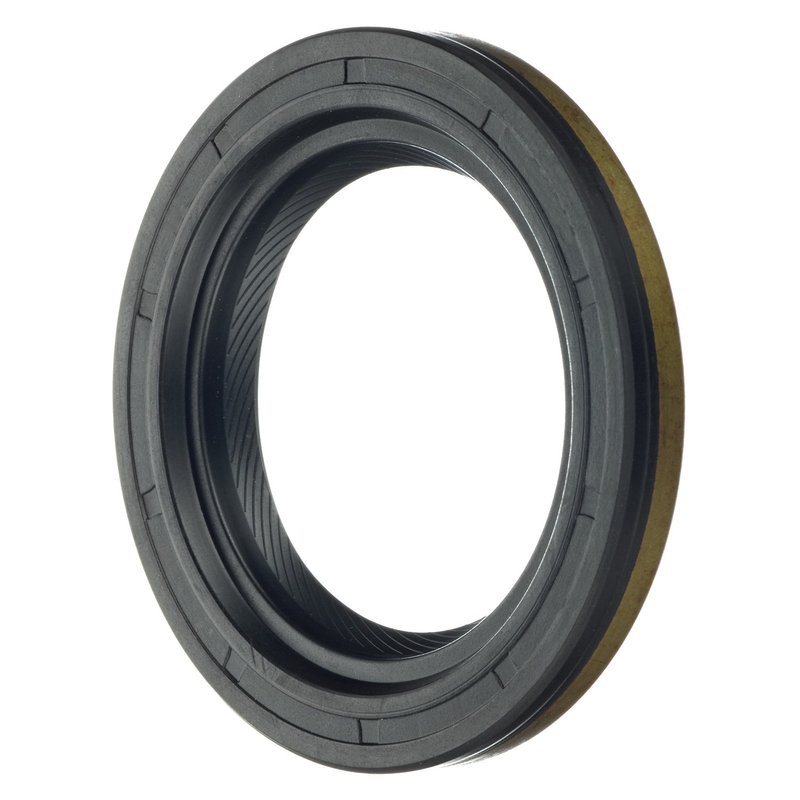

FAG SS2684 Automatic Transmission Oil Pump Seal - Front or Front Inner

Reliable Automatic Transmission Oil Pump Seal for Ford and Jaguar Vehicles

The FAG SS2684 automatic transmission oil pump seal is engineered to provide durable sealing performance for a range of Ford, Jaguar, Lincoln, Mazda, and Mercury models. Designed with precision, this seal helps maintain optimal transmission fluid pressure and prevents leaks in critical transmission components.

• Seal Type: Metal with spring for secure fit and durability
• Sealing Material: High-quality Viton for excellent chemical and temperature resistance
• Bore Diameter: 2.435 inches (61.849 mm) ensuring precise fit
• Seal Outside Diameter: 2.44 inches (61.976 mm) for reliable sealing surface
• Seal Width: 1.614 inches (7.595 mm) providing robust sealing depth

Technical Details and Material Specifications

The SS2684 seal features a metal spring design that maintains consistent pressure against the bore, reducing the risk of leaks under varying operating conditions. The Viton sealing material offers superior resistance to transmission fluids, heat, and wear, making it suitable for demanding automatic transmission environments. With bore diameters of 2.435 inches and an outside diameter of 2.44 inches, this seal fits precisely within the transmission oil pump assembly, ensuring a tight seal and preventing fluid loss.

Compatible Vehicles and Applications

This automatic transmission oil pump seal is compatible with multiple vehicle makes and models, including Ford Aerostar, Explorer, Mustang, Ranger, and Thunderbird; Jaguar S-Type; Lincoln LS and Aviator; Mazda B2300, B2500, B3000, and B4000; Mercury Mountaineer and Explorer Sport Trac. The part number SS2684 is specifically designed to meet the sealing requirements of these vehicles' automatic transmissions.

Common Issues Addressed by the SS2684 Seal

• Prevents transmission fluid leaks that can cause low fluid levels
• Maintains proper hydraulic pressure within the automatic transmission oil pump
• Reduces risk of transmission overheating due to fluid loss
• Helps avoid premature transmission wear caused by contamination
• Improves overall transmission reliability and performance

Installation Notes and Tips

Ensure the transmission oil pump housing is clean and free of debris before installing the SS2684 seal. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect related transmission components for wear or damage during replacement.

Quality Assurance and Warranty

FAG manufactures the SS2684 seal to meet strict quality standards, using durable materials and precise engineering. The Viton sealing compound and metal spring design contribute to long service life under normal operating conditions. Warranty coverage details should be confirmed with the parts provider, as FAG supports its products with standard manufacturer warranties.
