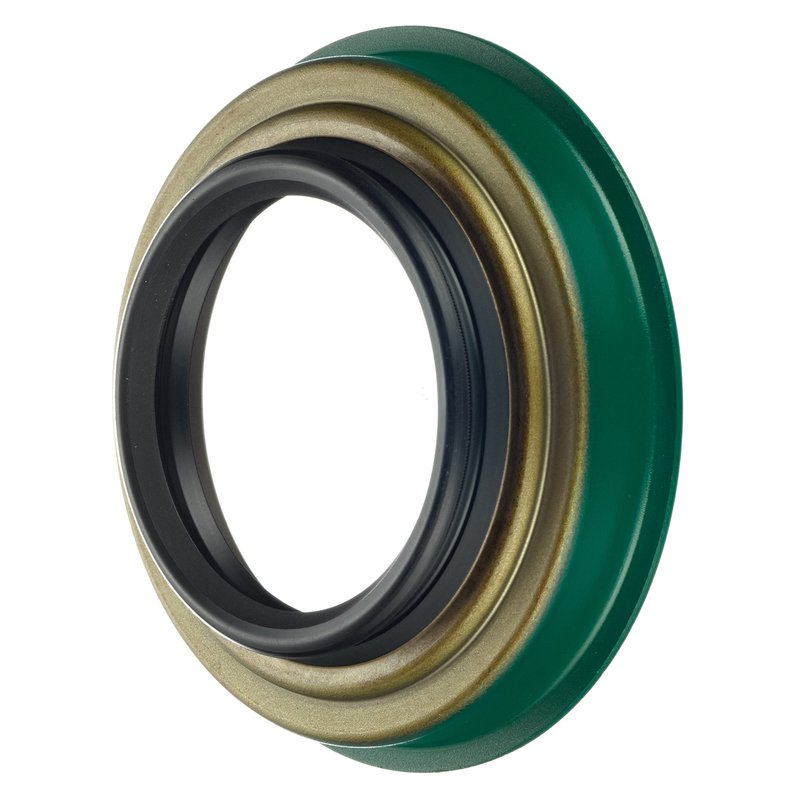

FAG SS2696 Automatic Transmission Output Shaft Seal - Left

Overview of FAG SS2696 Automatic Transmission Output Shaft Seal

The FAG SS2696 is a precision-engineered automatic transmission output shaft seal designed for select Cadillac and Oldsmobile models. This seal ensures reliable sealing performance to maintain transmission integrity and prevent fluid leaks in vehicles such as the Cadillac DeVille and Oldsmobile Aurora.

• Seal Type: Rubber with spring, auxiliary lip, and inner shell construction
• Sealing Material: Durable nitrile compound for resistance to heat and transmission fluids
• Bore Diameter: Approximately 2.56 inches (65.024 mm)
• Seal Outside Diameter: Approximately 2.565 inches (65.151 mm)
• Seal Width: Approximately 1.605 inches (17.602 mm)

Technical Description and Specifications

The FAG SS2696 automatic transmission output shaft seal features a multi-component design including a rubber sealing lip supported by a spring and an auxiliary lip, all housed within a robust inner shell. The nitrile sealing material offers excellent resistance to transmission fluids and high operating temperatures, making it suitable for the demanding environment of automatic transmissions. The precise bore and outside diameters ensure a secure fit on the output shaft, minimizing the risk of leaks and contamination.

Compatible Vehicles and Applications

This transmission output shaft seal is compatible with various Cadillac and Oldsmobile models, including:

• Cadillac Allante
• Cadillac Aurora
• Cadillac DeVille
• Cadillac DTS
• Cadillac Eldorado
• Cadillac Seville

It is specifically designed to replace worn or damaged seals in these vehicles’ automatic transmissions, helping to maintain proper fluid retention and transmission performance.

Common Issues Addressed by the SS2696 Seal

• Prevents automatic transmission fluid leaks from the output shaft area
• Reduces contamination ingress that can cause premature transmission wear
• Maintains proper hydraulic pressure within the transmission system
• Eliminates noise and vibration caused by faulty or worn seals
• Helps avoid costly transmission repairs due to fluid loss

Installation Notes and Tips

• Ensure the transmission output shaft and seal housing are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the seal’s spring and auxiliary lip for optimal sealing
• Check for proper fitment dimensions matching the bore and outside diameters
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

The FAG SS2696 transmission output shaft seal is manufactured to meet strict quality standards, ensuring durability and reliable performance in automotive transmission applications. The use of nitrile sealing material and robust construction supports long service life under normal operating conditions. Warranty coverage details should be confirmed with the product supplier or manufacturer.
