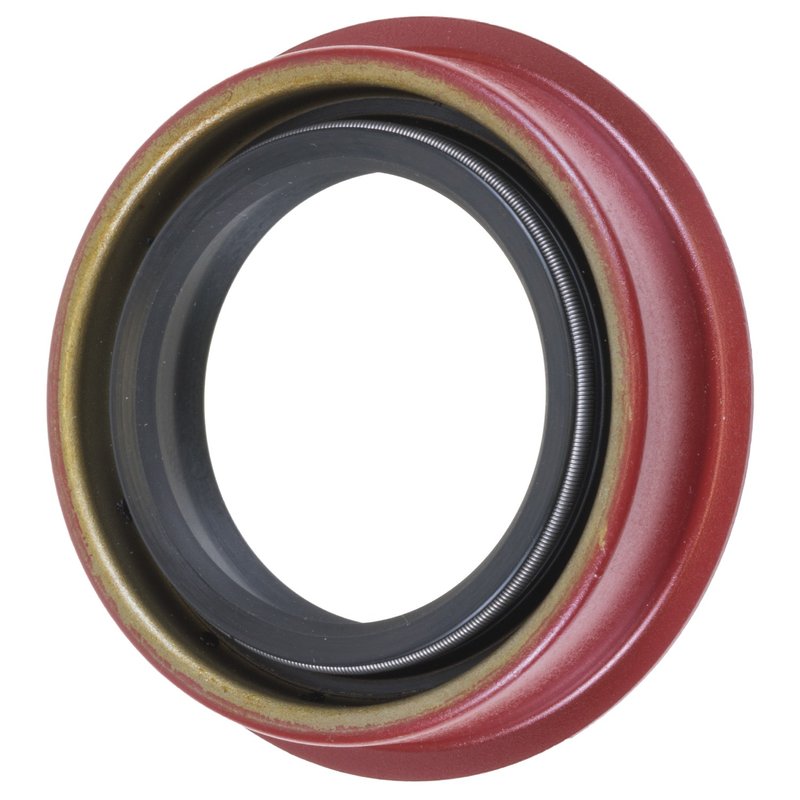

FAG SS2746 Manual Transmission Seal - Rear

Overview of FAG SS2746 Manual Transmission Seal

The FAG SS2746 manual transmission seal is engineered for reliable sealing performance in a variety of vehicle models including Buick, Cadillac, Chevrolet, Ford, Jeep, Lincoln, Mercury, Oldsmobile, Pontiac, and Volvo. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oils and wear
• Bore Diameter: 2.502 inches (63.551 mm)
• Seal Outside Diameter: 2.506 inches (63.652 mm)
• Seal Width: 1.688 inches (12.7 mm)
• Compatible with multiple manual transmission applications across various makes and models

Technical Details and Specifications

The FAG SS2746 manual transmission seal features a robust metal construction combined with a spring-loaded auxiliary lip that maintains consistent pressure against the shaft, preventing fluid leakage. The nitrile sealing material offers excellent resistance to transmission fluids and temperature variations, making it suitable for demanding automotive environments. With precise bore and outside diameters of approximately 2.5 inches and a width of 1.688 inches, this seal fits tightly within the transmission housing to maintain optimal sealing integrity.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a wide range of vehicles, including but not limited to Buick models like the LeSabre and Riviera, Cadillac DeVille and Fleetwood, Chevrolet Impala and Caprice, Ford Mustang and Cougar, Jeep CJ5, Lincoln Continental, Mercury Cougar, Oldsmobile Delta 88, Pontiac Grand Prix, and Volvo 740 and 760. The part number SS2746 is designed to meet the sealing requirements of these models’ manual transmissions, ensuring proper fit and function.

Common Issues Addressed by FAG SS2746 Seal

• Prevents manual transmission fluid leaks that can cause shifting problems
• Protects transmission internals from dirt and contaminants
• Reduces wear on transmission shafts by maintaining lubrication
• Helps maintain consistent transmission performance and longevity
• Eliminates noise and vibration caused by faulty seals

Installation Notes and Tips

When installing the FAG SS2746 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal casing. Lubricate the seal lip with transmission fluid before installation to reduce initial wear. Verify correct orientation of the auxiliary lip to maintain proper sealing function. Follow vehicle-specific service manual instructions for torque specifications and installation procedures.

Quality Assurance and Warranty

FAG manufactures the SS2746 manual transmission seal to meet stringent quality standards, ensuring durability and reliable sealing performance. The use of nitrile sealing material and metal spring design provides resistance to wear and fluid degradation. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support professional automotive repairs.
