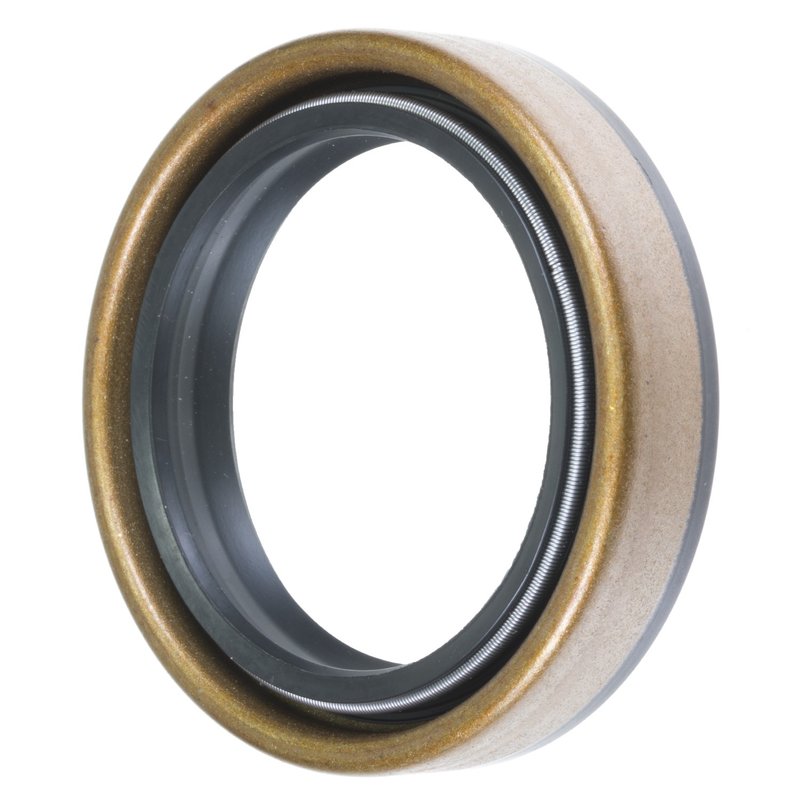

FAG SS2806 Transfer Case Main Shaft Seal

Overview of FAG Transfer Case Main Shaft Seal SS2806

The FAG SS2806 transfer case main shaft seal is engineered for reliable sealing performance in select Chevrolet, Ford, and GMC vehicles. Designed to maintain optimal transfer case function, this seal helps prevent fluid leaks and contamination in models such as the Chevrolet Astro, Ford Bronco, and GMC Safari.

• Seal Type: Metal with spring for secure fit and durability
• Sealing Material: Polyacrylate-poliacrylate for effective fluid retention
• Bore Diameter: 2.362 inches (59.995 mm)
• Seal Outside Diameter: 2.373 inches (60.274 mm)
• Seal Width: 1.771 inches (12.573 mm)

Technical Details and Specifications

The FAG SS2806 main shaft seal features a metal spring design that ensures consistent pressure against the shaft, reducing the risk of leaks under varying operating conditions. The polyacrylate-poliacrylate sealing material offers resistance to transfer case fluids and temperature fluctuations, maintaining a tight seal over time. With precise bore and outside diameters of approximately 2.362 inches and 2.373 inches respectively, this seal fits securely within the transfer case housing, providing reliable protection for the main shaft.

Compatible Vehicles and Applications

This transfer case main shaft seal is compatible with a range of Chevrolet, Ford, and GMC models, including:

• Chevrolet Astro and S10
• Ford Bronco, Bronco II, F-150, F-250, F-350, and Ranger
• GMC Safari

Part number SS2806 is specifically designed to meet the sealing requirements of these vehicles’ transfer cases, ensuring proper fit and function.

Common Issues Addressed by the SS2806 Seal

• Prevents transfer case fluid leaks that can lead to drivetrain damage
• Reduces contamination ingress to protect internal components
• Maintains transfer case pressure for smooth operation
• Minimizes wear on the main shaft by providing a secure seal
• Helps avoid costly repairs related to seal failure

Installation Notes and Tips

• Ensure the transfer case housing and shaft surfaces are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the metal spring seal for optimal sealing performance
• Check for proper fit by confirming bore and outside diameters match the transfer case specifications

Quality Assurance and Warranty

FAG transfer case seals are manufactured to meet strict quality standards, ensuring durability and reliable performance. The SS2806 seal undergoes rigorous testing to comply with OEM specifications. While specific warranty details may vary, FAG products typically include coverage against manufacturing defects to provide confidence in your purchase.
