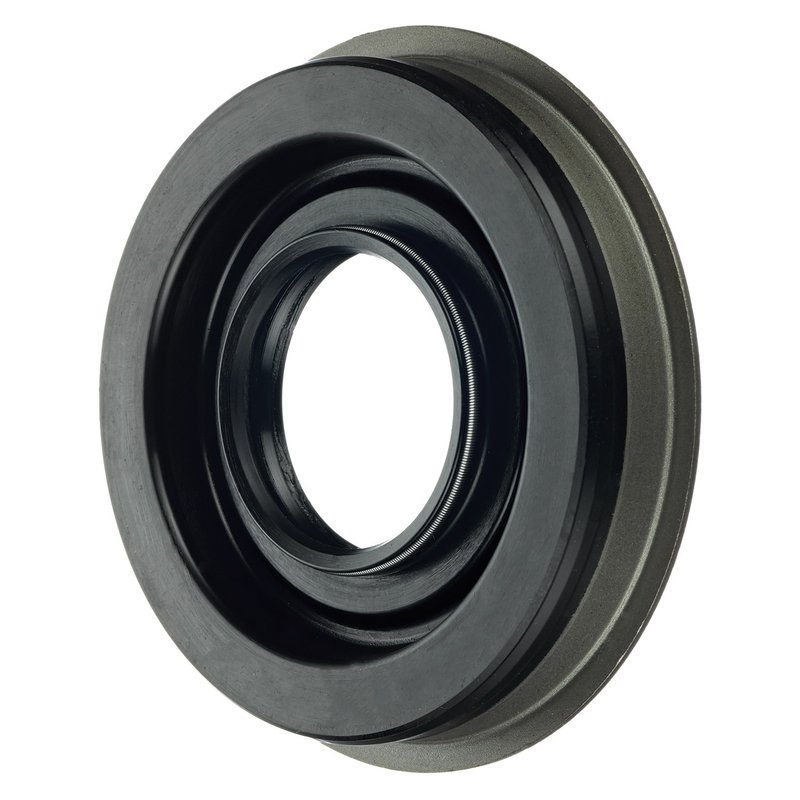

FAG SS2862 Transfer Case Output Shaft Seal - Rear

Transfer Case Output Shaft Seal for Jeep Applications

The FAG SS2862 transfer case output shaft seal is built for Jeep and Hummer applications that need a precise sealing solution at the transfer case. It uses a metal and spring seal design with an auxiliary lip to help keep contaminants out and retain lubricant at the shaft interface.

With a polyacrylate sealing material and dimensions matched to the listed applications, this seal is suited for service work on Jeep Cherokee, Grand Cherokee, Liberty, Commander, TJ, Wrangler, and select Hummer H1 rear positions. FAG SS2862 is a direct-fit style seal for transfer case sealing service where the original seal has worn, hardened, or begun leaking.

Key Features

• Transfer case output shaft seal for listed Jeep and Hummer applications
• Seal type: metal, spring, and auxiliary lip construction
• Sealing material: polyacrylate
• Bore diameter: 2.559 in. / 64.999 mm
• Seal outside diameter: 2.572 in. / 65.329 mm
• Seal width: 1.177 in. / 29.896 mm
• Cross-references Bosch 18108 and National 710663 for the same application
• Part number: SS2862

Detailed Description

FAG SS2862 is engineered for transfer case sealing service where shaft rotation, fluid retention, and contamination control are critical. The metal-backed, spring-loaded design with an auxiliary lip helps maintain sealing contact at the output shaft, while the polyacrylate sealing material is selected for demanding drivetrain environments. This seal is listed across multiple Jeep platforms, including Jeep Cherokee, Grand Cherokee, Liberty, Commander, TJ, and Wrangler, plus select Hummer H1 rear applications. The part number SS2862 is also referenced under global number 413 2862 100 in the listed fitment notes.

Vehicle Fitment

• Fits 2006-2008 Jeep Commander, N/A, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 2000-2008 Jeep Grand Cherokee, N/A, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 2002-2008 Jeep Liberty, N/A, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 2006 Jeep H1, Rear
• Fits 2002-2004 Jeep H1, Rear
• Fits 2006 Jeep TJ, N/A, New Process 231; Schaeffler Seal Global Number 413 2862 100
• Fits 2006 Jeep Wrangler, N/A, New Process 231; Schaeffler Seal Global Number 413 2862 100
• Fits 1997-2005 Jeep TJ, N/A, New Process 231 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1997-2005 Jeep Wrangler, N/A, New Process 231 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1997-2004 Jeep Grand Cherokee, Rear, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 2000-2001 Jeep Cherokee, N/A, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 2000-2001 Jeep Cherokee, Rear, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1991-1995 Jeep Cherokee, Rear, New Process 242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1997-1999 Jeep Cherokee, N/A, New Process 231,242 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1997-1999 Jeep Grand Cherokee, N/A, New Process 249 Transfer Case; Schaeffler Seal Global Number 413 2862 100
• Fits 1996 Jeep Cherokee, Rear

Common Repair Uses

• Transfer case fluid seepage at the output shaft
• Contamination entering the transfer case seal area
• Worn or hardened original shaft seal material
• Leak repair during transfer case service on Jeep Cherokee, Grand Cherokee, Liberty, TJ, or Wrangler
• Rear transfer case seal replacement on select Hummer H1 applications

Installation Notes and Tips

Verify transfer case type and position before installation, since this seal is listed for multiple New Process 231, 242, and 249 applications as well as rear-position Hummer H1 use. Inspect the shaft surface for wear, scoring, or corrosion before installing the new seal, and confirm the bore and outside diameter match the housing specification. Clean the sealing bore thoroughly so the seal seats evenly and maintains proper contact.

Quality Assurance

FAG specifies this seal using manufacturer-level dimensional control and application-specific sealing requirements. The design is intended to protect drivetrain components from dirt, dust, and moisture while helping retain grease or fluid at the bearing or shaft interface. Part number SS2862 is built to the listed OE-style dimensions and application references.
