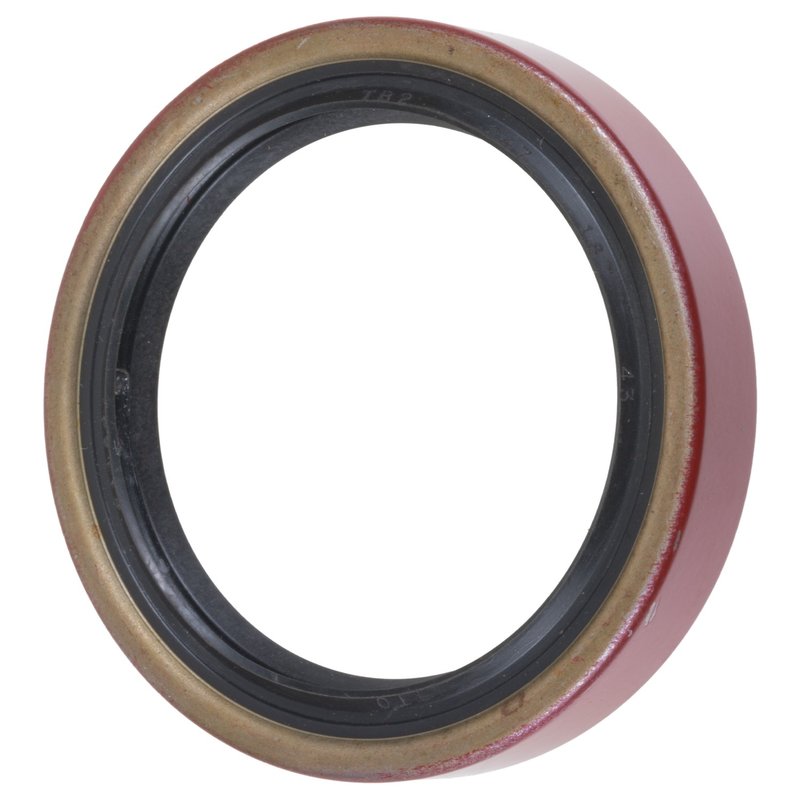

FAG SS2893 Wheel Seal - Rear or Rear Outer

Wheel Seal for Ford Rear Axles

FAG SS2893 is a wheel seal built for rear axle service where contamination control and grease retention matter. It is specified for select Ford F-100 and Ford F-150 applications, including rear outer positions on Spicer 44 and 60 axles.

With a nitrile sealing material and a metal spring auxiliary-lip design, this seal is made to match vehicle-specific dimensions and support reliable wheel-end sealing in classic Ford truck driveline service.

Key Features

• Wheel seal for rear axle wheel-end applications
• Seal type: metal, spring, auxiliary lip
• Nitrile sealing material for wheel-end sealing service
• Bore diameter: 2.471 in. / 62.763 mm
• Seal outside diameter: 2.475 in. / 62.865 mm
• Seal width: 1.875 in. / 47.625 mm
• Designed for select Ford F-100 and Ford F-150 rear outer positions
• Cross-references National 472747 and Gates 18545 for the same application

Detailed Description

FAG SS2893 wheel seal is engineered for wheel-end protection against dirt, dust, and moisture while helping retain grease at the bearing. The seal dimensions and construction are matched to demanding vehicle-specific requirements, which is important when servicing older Ford truck rear axles. This part number is used in select Ford F-100 and Ford F-150 rear outer applications, including vehicles with Spicer 44 and 60 axles. FAG SS2893 is also referenced by National 472747 and Gates 18545.

Compatible With 1953-1963 Ford F-100, rear outer; 1964-1974 Ford F-100, rear outer; 1975 Ford F-100, rear; 1975-1979 Ford F-100, rear outer; 1975-1979 Ford F-150, rear outer; and 1975-1976 Ford F-150, rear outer. Use the listed axle and serial/chassis notes to confirm the exact application before ordering.

Common Uses

• Stopping gear oil or grease loss at the wheel end
• Reducing contamination from road dirt, dust, and moisture
• Replacing a worn or hardened rear axle seal
• Addressing wheel-end noise or bearing service concerns tied to seal wear
• Supporting maintenance on classic Ford F-100 and Ford F-150 rear axles

Installation Notes and Tips

Verify the seal outside diameter, bore diameter, and width against the original part before installation. Confirm axle type, position, and serial or chassis break points listed for your Ford F-100 or Ford F-150, since the correct seal depends on the exact rear axle configuration. Inspect the sealing surface and bearing area for wear, scoring, or contamination before fitting the new seal.

Quality Assurance

FAG designs wheel seals to meet vehicle manufacturer specifications and works with suppliers to maintain FAG quality standards. The seal construction is selected to support long-term wheel-end protection in the specified application.
