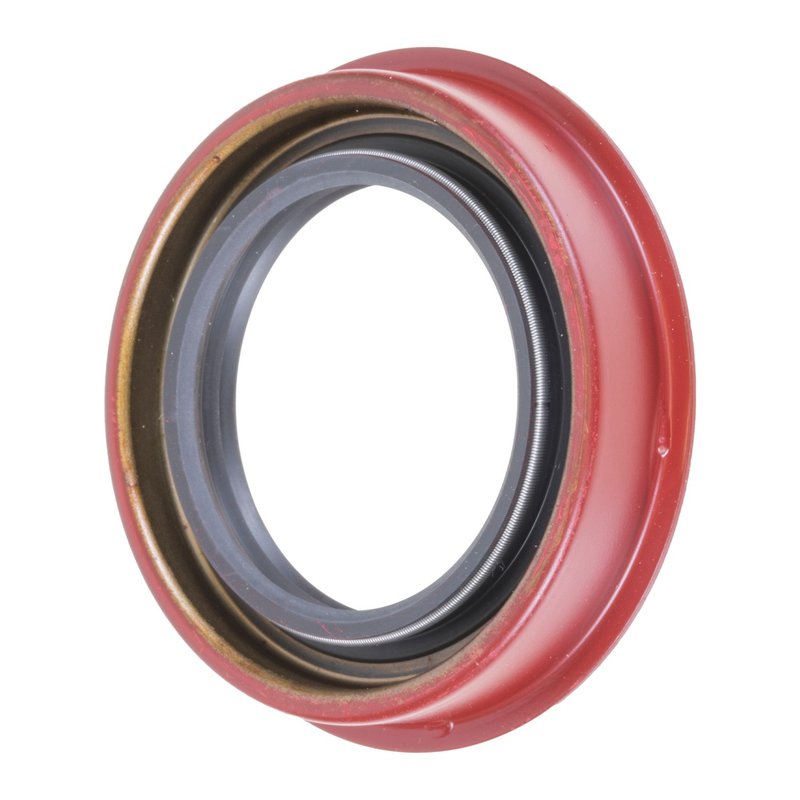

FAG SS2909 Transfer Case Output Shaft Seal - Front or Rear

Overview of FAG Transfer Case Output Shaft Seal SS2909

The FAG SS2909 transfer case output shaft seal is engineered for reliable sealing performance in various transfer case applications. Designed to fit select Cadillac, Chevrolet, Dodge, GMC, and Jeep models, this seal helps maintain optimal drivetrain function by preventing fluid leaks.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound resistant to wear and heat
• Bore Diameter: 2.75 inches (69.85 mm)
• Seal Outside Diameter: Approximately 2.75 inches (69.95 mm)
• Seal Width: 1.875 inches (47.625 mm)

Technical Details and Specifications

The SS2909 transfer case output shaft seal features a metal construction with an integrated spring and auxiliary lip, providing a secure and consistent seal around the output shaft. The nitrile sealing material offers resistance to oil, heat, and abrasion, making it suitable for demanding transfer case environments. With precise bore and outside diameters of 2.75 inches and 69.85-69.95 mm respectively, this seal ensures a tight fit to prevent fluid leakage. The 1.875-inch width supports durability and long service life under typical operating conditions.

Compatible Vehicles and Applications

This transfer case output shaft seal is compatible with a range of vehicles including Cadillac Escalade, Chevrolet Silverado 1500, Suburban 1500 and 2500, Dodge Ram 2500, GMC Sierra 1500, and Jeep Cherokee, Grand Cherokee, Grand Wagoneer, and Wagoneer. It also fits older models such as the Dodge Dakota, Ramcharger, and various Jeep Scrambler and Wagoneer variants. The SS2909 is designed specifically for transfer case sealing systems in these models, ensuring proper fit and function.

Common Issues Addressed by the SS2909 Seal

• Prevents transfer case fluid leaks that can cause drivetrain damage
• Reduces contamination ingress to protect internal components
• Maintains proper lubrication levels for transfer case output shaft
• Minimizes wear on output shaft bearings and gears
• Helps avoid costly repairs related to seal failure and fluid loss

Installation Notes and Tips

When installing the FAG SS2909 transfer case output shaft seal, ensure the transfer case housing and shaft surfaces are clean and free of debris. Use appropriate seal installation tools to avoid damage to the sealing lip or metal casing. Verify the seal orientation matches the original part, with the auxiliary lip facing the fluid side. After installation, check for leaks during initial operation and re-torque any related fasteners as specified by the vehicle manufacturer.

Quality Assurance and Warranty

FAG transfer case output shaft seals are manufactured to meet strict quality standards, ensuring consistent performance and durability. The SS2909 part number undergoes rigorous testing for material integrity and dimensional accuracy. While specific warranty terms may vary, FAG products typically come with a limited warranty against manufacturing defects, providing confidence in the seal’s reliability for your Cadillac, Chevrolet, Dodge, GMC, or Jeep transfer case application.
