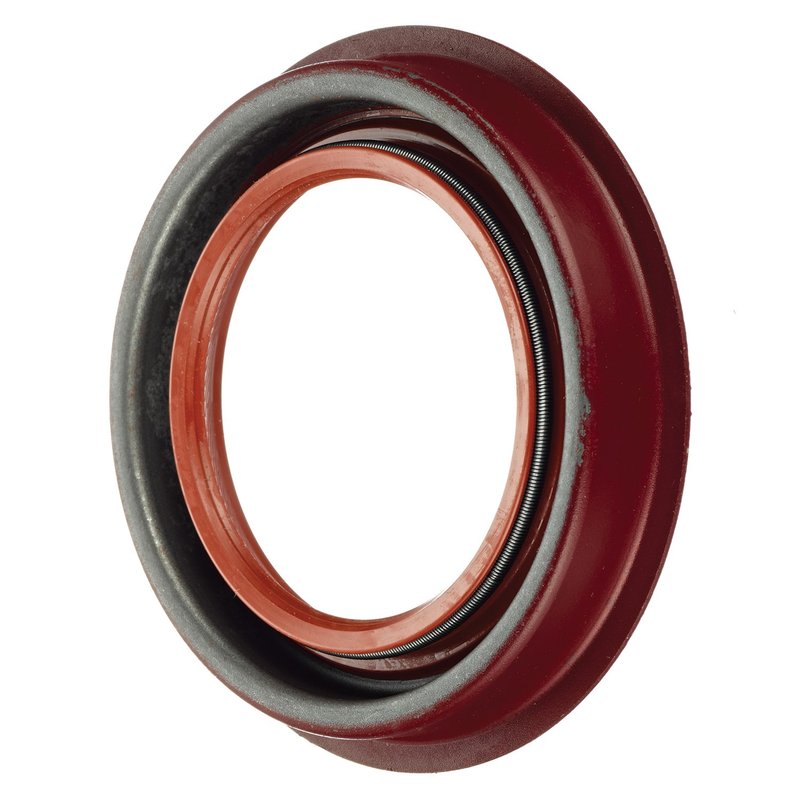

FAG SS2912 Automatic Transmission Seal - Front or Rear

Automatic Transmission Seal for Select Applications

FAG SS2912 is an automatic transmission seal built for specific vehicle applications that require precise sealing at the transmission interface. It uses a metal and spring seal design with silicone sealing material to help maintain a tight seal where transmission fluid retention and contamination control matter.

Key Features

• Part number: SS2912
• Automatic transmission seal for select import and domestic applications
• Metal and spring seal type for stable sealing performance
• Silicone sealing material
• Bore diameter: 2.76 in. / 70.104 mm
• Seal outside diameter: 2.764 in. / 70.206 mm
• Seal width: 1.875 in. / 47.625 mm
• Cross-references Gates 18692 and National 6712NA for the same application

Product Details

FAG SS2912 is engineered to meet vehicle-specific specifications for automatic transmission sealing. The seal dimensions and material selection are important for applications where the transmission needs consistent fluid control and protection from dirt, dust, and moisture. This part number is used across a wide range of vehicles, including Honda Passport, Isuzu Trooper, BMW Z3, Cadillac Catera, and Chevrolet Tracker applications.

For buyers searching for a transmission seal by fitment, SS2912 is listed for many year-specific applications across Honda, Isuzu, BMW, Chevrolet, GMC, Cadillac, Pontiac, Buick, Oldsmobile, Jeep, Jaguar, Suzuki, Bentley, Rolls-Royce, and Geo models. If you are replacing a leaking automatic transmission seal on a BMW 318i, Isuzu VehiCROSS, or Chevrolet Tracker, confirm the exact year, position, and transmission notes before ordering.

Common Problems This Part Can Address

• Automatic transmission fluid leakage at the seal area
• Contamination entering the transmission through a worn seal
• Grease or fluid loss at the sealing interface
• Noise or drivability issues related to low transmission fluid level
• Service replacement for worn OE-style transmission seals

Installation Notes and Fitment Tips

Compatible With select applications including 1994-2002 Honda Passport, 1990-2002 Isuzu Trooper, 1996-2000 BMW Z3, and 1998-1999 Chevrolet Tracker, rear. Additional fitment includes 1997-2001 Cadillac Catera, front, and 1993-1995 Geo Tracker, rear, with application-specific transmission notes. Because this seal is used across many platforms, verify the year, make, model, position, and transmission code before installation.

Measure the bore diameter, seal outside diameter, and seal width against the original part before service. Clean the sealing surface thoroughly and inspect the shaft or housing for wear, scoring, or contamination that could affect seal life. The metal and spring construction should be seated evenly to avoid distortion during installation.

Quality Assurance

FAG designs seals to meet manufacturer specifications using high-quality materials and supplier-controlled production standards. SS2912 follows those dimensional and material requirements for the listed applications, supporting consistent sealing performance in automatic transmission service.
