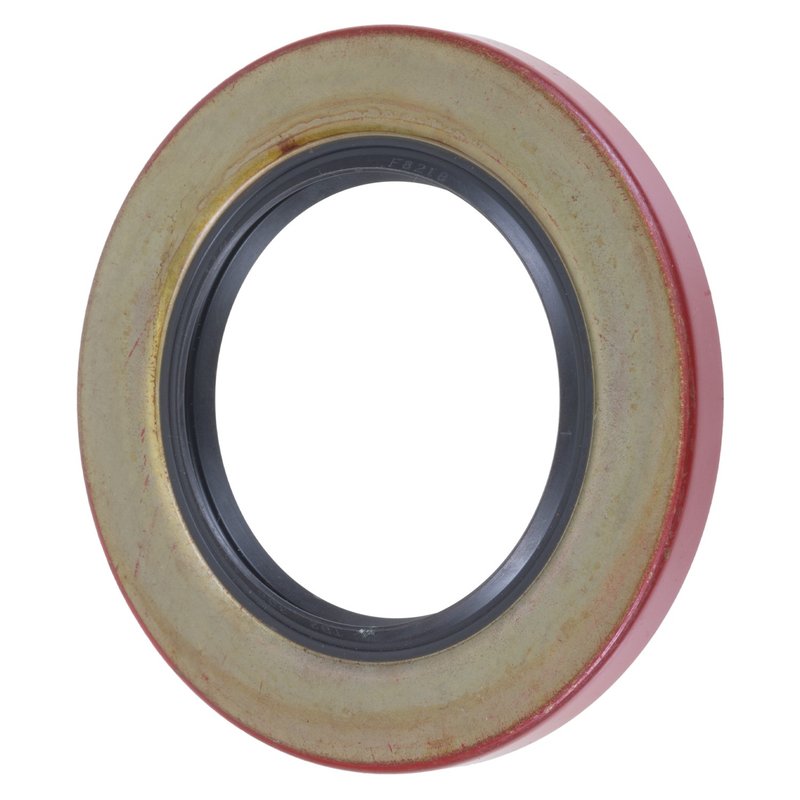

FAG SS2942 Transfer Case Output Shaft Seal - Front or Rear Lower

Overview of FAG Transfer Case Output Shaft Seal SS2942

The FAG SS2942 transfer case output shaft seal is engineered for reliable sealing performance in Ford Bronco, F-100, F-150, and F-250 models. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oil and wear
• Bore Diameter: 3.061 inches (77.749 mm)
• Seal Outside Diameter: 3.066 inches (77.876 mm)
• Seal Width: 1.875 inches (7.95 mm)

Technical Details and Specifications

The SS2942 transfer case output shaft seal from FAG is precisely manufactured to meet OEM specifications for Ford transfer cases. The metal spring and auxiliary lip design provide a secure fit around the output shaft, minimizing the risk of fluid leaks. The nitrile sealing material offers excellent resistance to heat, oil, and abrasion, which is critical for maintaining transfer case integrity under demanding driving conditions. With a bore diameter of 3.061 inches and an outside diameter of 3.066 inches, this seal fits tightly to prevent contamination and fluid loss. The seal width of 1.875 inches ensures proper coverage and durability.

Compatible Vehicles and Applications

This transfer case output shaft seal is compatible with the following Ford models:

• Ford Bronco
• Ford F-100
• Ford F-150
• Ford F-250

It is specifically designed to replace worn or damaged seals in these vehicles’ transfer cases, helping maintain proper drivetrain function.

Common Issues Addressed by the SS2942 Seal

• Prevents transfer case fluid leaks that can lead to drivetrain damage
• Reduces contamination from dirt and debris entering the transfer case
• Minimizes wear on the output shaft by maintaining proper lubrication
• Helps avoid costly repairs related to seal failure
• Maintains transfer case pressure and performance

Installation Notes and Tips

• Ensure the transfer case output shaft and bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Apply a light coat of compatible lubricant on the seal lip to ease installation
• Verify correct orientation of the metal spring and auxiliary lip for optimal sealing
• Check for proper fit and alignment to prevent premature wear

Quality Assurance and Warranty

FAG manufactures the SS2942 transfer case output shaft seal to meet stringent quality standards. The use of nitrile sealing material and metal spring construction ensures durability and reliable performance. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support long-term use in Ford Bronco, F-100, F-150, and F-250 vehicles.
