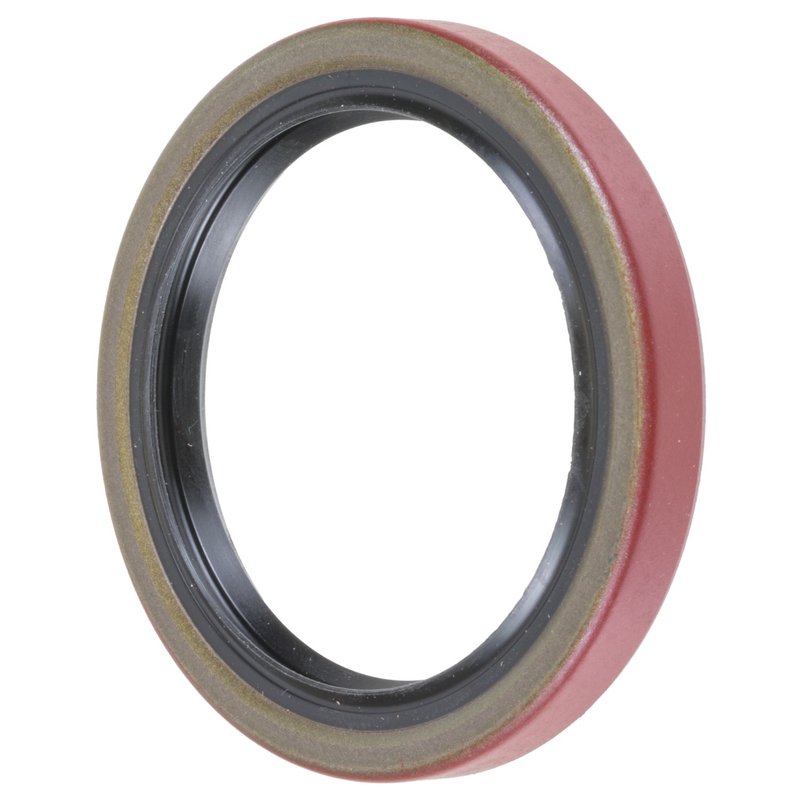

FAG SS3023 Manual Transmission Seal - Rear

Overview of FAG SS3023 Manual Transmission Seal

The FAG SS3023 manual transmission seal is engineered for reliable sealing performance in select Cadillac and Dodge vehicles. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oils and wear
• Bore Diameter: 2.623 inches (66.624 mm)
• Seal Outside Diameter: 2.627 inches (66.726 mm)
• Seal Width: 2 inches (7.95 mm)
• Compatible with manual transmissions in Cadillac and Dodge models

Technical Details and Specifications

The SS3023 manual transmission seal features a robust metal construction combined with a spring and auxiliary lip design to maintain a tight seal under varying operating conditions. The nitrile sealing material offers excellent resistance to transmission fluids and temperature fluctuations, making it suitable for demanding automotive environments. With precise bore and outside diameters of approximately 2.623 and 2.627 inches respectively, and a seal width of 2 inches, this seal fits specific manual transmission applications requiring these exact dimensions.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a range of Cadillac and Dodge vehicles, including models such as the Cadillac 60 Special, Allante, Commercial Chassis, DeVille, Eldorado, Fleetwood, Seville, and Dodge D250, D350, Ram 2500, Ram 3500, and W250. The SS3023 part number is designed to meet the sealing requirements of these vehicles’ manual transmissions, ensuring proper fit and function.

Common Issues Addressed by the SS3023 Seal

• Prevents manual transmission fluid leaks
• Protects transmission internals from dirt and contaminants
• Reduces wear caused by fluid contamination
• Maintains consistent transmission performance
• Helps avoid costly transmission repairs due to seal failure

Installation Notes and Tips

When installing the FAG SS3023 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the auxiliary lip direction to optimize sealing performance. Lubricate the seal with compatible transmission fluid before installation to facilitate proper seating and reduce initial wear.

Quality Assurance and Warranty

FAG manufactures the SS3023 seal to meet stringent quality standards, ensuring durability and reliable sealing performance. The use of nitrile sealing material and metal spring design contributes to long service life. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support professional automotive repair needs.
