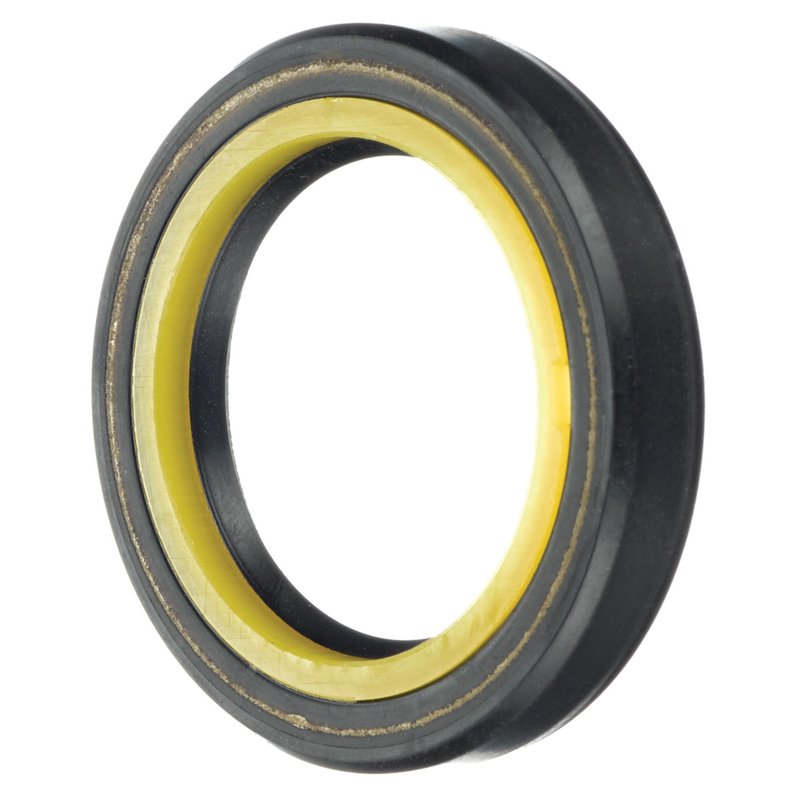

FAG SS3047 Transfer Case Actuator Seal - Front, Left or Rear

Overview of FAG Transfer Case Actuator Seal SS3047

The FAG Transfer Case Actuator Seal SS3047 is engineered to provide reliable sealing performance for transfer case actuators in select Lexus, Subaru, and Toyota vehicles. Designed with durable polyacrylate sealing material and a rubber spring seal type, this component ensures effective protection against leaks and contamination.

• Seal Type: Rubber with integrated spring for consistent tension
• Sealing Material: High-quality polyacrylate for durability and resistance
• Bore Diameter: 2.598 inches and 65.989 mm for precise fitment
• Seal Outside Diameter: 2.606 inches and 66.192 mm ensuring secure sealing
• Seal Width: 2.008 inches and 6.502 mm for optimal coverage

Technical Details and Specifications

The SS3047 transfer case actuator seal features a dual measurement system accommodating both imperial and metric dimensions, ensuring compatibility with various transfer case designs. The rubber spring seal type maintains consistent pressure against the bore, preventing fluid leakage and ingress of contaminants. The polyacrylate sealing material offers resistance to heat, oil, and wear, which is critical for maintaining transfer case integrity under demanding driving conditions.

Compatible Vehicles and Applications

This transfer case actuator seal is compatible with multiple models including the Lexus LX570, Toyota Land Cruiser, Sequoia, Tundra, Tercel, and Subaru Forester and Tribeca. The part number SS3047 is specifically designed to meet the sealing requirements of these vehicles’ transfer case actuators, ensuring proper fit and function.

• Prevents transfer case fluid leaks
• Protects actuator components from dirt and debris
• Maintains transfer case pressure and performance
• Reduces wear on actuator seals and related parts
• Helps avoid costly transfer case repairs

Installation Notes and Tips

When installing the FAG SS3047 transfer case actuator seal, ensure the bore and surrounding surfaces are clean and free of debris. Proper lubrication of the seal with compatible transfer case fluid can facilitate installation and improve sealing performance. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches manufacturer specifications for optimal sealing.

Quality Assurance and Warranty

FAG transfer case actuator seals are manufactured to meet stringent quality standards, ensuring durability and reliable performance. The SS3047 part undergoes rigorous testing to comply with OEM specifications. While specific warranty details may vary, FAG products typically come with a limited warranty covering manufacturing defects to provide confidence in product quality.
