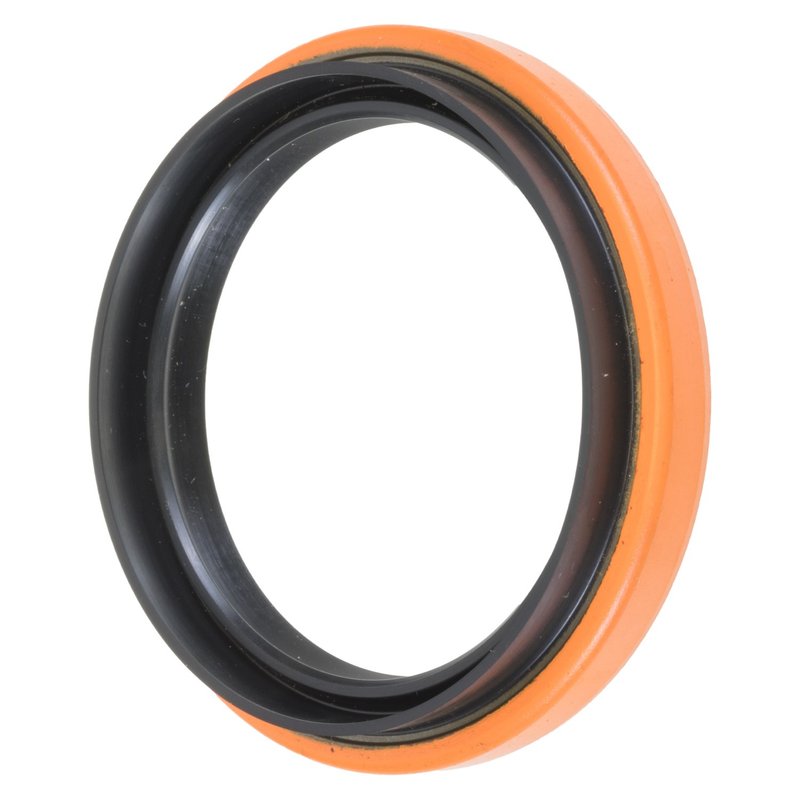

FAG SS3070 Wheel Seal

FAG SS3070 Wheel Seal for OE-Style Wheel End Protection

The FAG SS3070 wheel seal is built for wheel end service where contamination control and grease retention matter. It uses a metal and spring seal design with nitrile sealing material to help protect bearings from dirt, dust, and moisture while maintaining proper lubrication.

Compatible With select front and rear wheel end applications on Toyota Camry, Toyota Corolla, Toyota Celica, Toyota RAV4, Chrysler 300M, Chrysler Concorde, Kia Rio, and other listed vehicles.

Key Features

• Part number: SS3070
• Seal type: metal with spring
• Sealing material: nitrile
• Bore diameter: 2.677 in. / 67.996 mm
• Seal outside diameter: 2.683 in. / 68.148 mm
• Seal width: 2.047 in. / 8.001 mm
• Engineered to help keep contaminants out of the wheel end
• Helps retain grease over the service life of the bearing

Detailed Description

FAG SS3070 is a wheel seal designed to meet vehicle-specific requirements for wheel end sealing. Its metal and spring construction, paired with nitrile sealing material, supports a secure seal at the bearing interface. This matters in applications where the seal must handle exposure to road debris, moisture, and heat while maintaining consistent lubrication. The SS3070 is used across multiple front inner, front outer, rear inner, and rear outer positions depending on the vehicle application, including Toyota Camry, Toyota Corolla, and Toyota RAV4 fitments.

This part cross-references Eastern Catalytic 20421 for the same application.

What It Helps Address

• Grease loss at the wheel bearing seal area
• Contamination from dirt, dust, and moisture
• Wheel end noise caused by worn sealing surfaces
• Premature bearing wear from lubricant breakdown
• Seal leakage in serviceable hub and bearing assemblies

Installation Notes and Tips

• Verify the exact position before ordering; this seal is used in front inner, inner, front outer, rear inner, and rear outer locations depending on the vehicle.
• Confirm bore diameter, outside diameter, and width against the original seal before installation.
• Inspect the hub, spindle, and bearing surfaces for wear or scoring before pressing in the new seal.
• Clean all sealing surfaces thoroughly so the nitrile lip can seat correctly.
• Use the vehicle-specific service procedure for the listed application, including Toyota Camry, Toyota Corolla, and Kia Rio where applicable.

Quality Assurance

FAG designs wheel seals to meet vehicle manufacturer specifications and works with suppliers to maintain its quality standards. The SS3070 is built for demanding wheel end service where seal performance directly affects bearing protection and lubrication retention.
