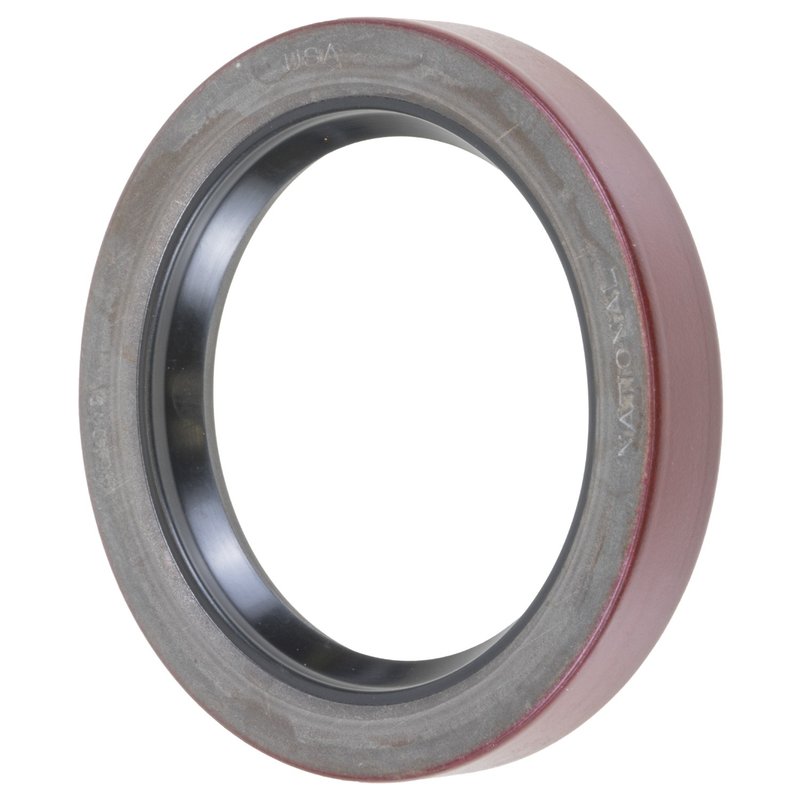

FAG SS3080 Wheel Seal - Rear Outer

FAG SS3080 Wheel Seal Overview

The FAG SS3080 wheel seal is built for wheel end service where contamination control and grease retention matter. It uses a nitrile sealing material with a metal, spring, and inner shell design to help protect bearing components from dirt, dust, and moisture.

For technicians and parts buyers searching for a wheel seal for axle and hub service, SS3080 is a direct-fit style replacement for applications that require precise bore and outside diameter dimensions. It is a practical choice for wheel end maintenance on vehicles such as Honda Civic and Toyota Corolla applications where correct sealing dimensions are critical.

Key Features

• FAG wheel seal, part number SS3080
• Seal type: metal, spring, inner shell
• Sealing material: nitrile
• Bore diameter: 2.875 in. / 73.025 mm
• Seal outside diameter: 2.879 in. / 73.127 mm
• Seal width: 2.063 in. / 52.4 mm
• Designed to help keep contaminants out of the wheel end
• Helps retain grease over bearing service life

Detailed Description

FAG SS3080 is a wheel seal engineered to meet vehicle manufacturer specifications for demanding wheel end applications. The seal construction combines a metal shell, spring, and inner shell with nitrile sealing material to support consistent sealing performance at the hub and bearing interface. When selecting a replacement wheel seal, matching the bore diameter, outside diameter, and width is essential for proper seating and sealing.

This part number, SS3080, is suited for service work where the original seal must control contamination and preserve lubricant in the bearing assembly. It cross-references SKF 20554 and Timken 451948 for the same application. For buyers comparing wheel seal options for Honda Civic or Toyota Corolla service, FAG SS3080 provides the dimensional and material details needed for accurate selection.

What This Wheel Seal Helps Address

• Grease loss at the wheel end
• Dirt and dust intrusion into the hub area
• Moisture contamination around bearing components
• Seal wear from age or heat exposure
• Improper sealing caused by incorrect dimensions

Installation Notes and Tips

Verify bore diameter, seal outside diameter, and seal width against the original part before installation. Inspect the hub, spindle, and bearing surfaces for wear, scoring, or corrosion before pressing in the new seal. Clean the sealing area thoroughly and confirm the seal seats evenly to avoid leaks or premature wear. Always match the seal to the specific wheel end application, position, and vehicle class.

Quality Assurance

FAG designs wheel seals to meet manufacturer specifications and works with suppliers to maintain its quality standards. SS3080 is built for wheel end sealing performance where precise fit and material selection are important.
