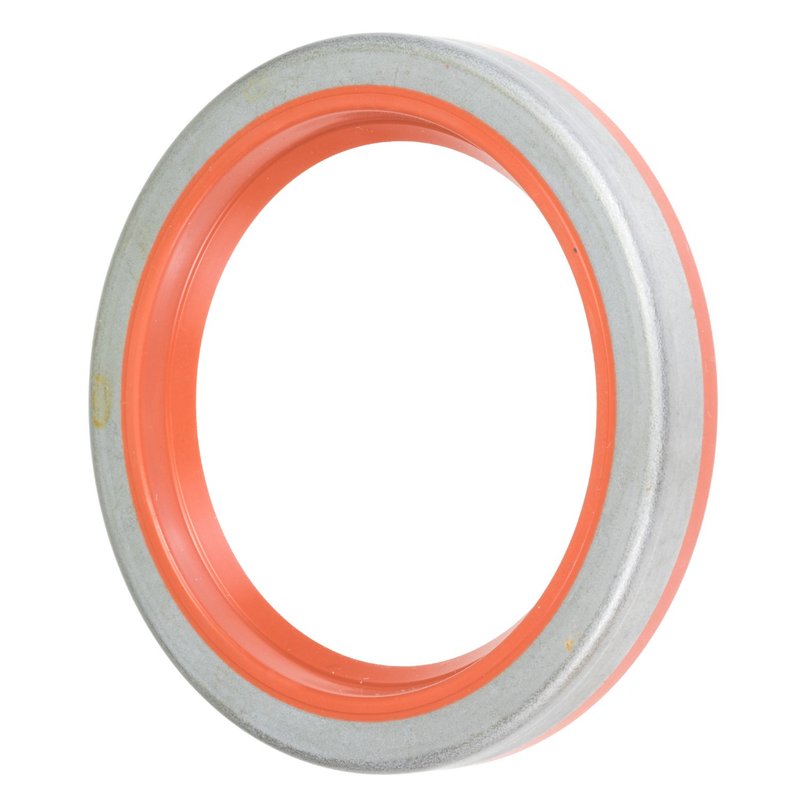

FAG SS3097 Manual Transmission Seal

Reliable Manual Transmission Seal for Chevrolet and Dodge Vehicles

The FAG SS3097 manual transmission seal is engineered to provide durable sealing performance for select Chevrolet, Chrysler, Dodge, and GMC models. Designed with precision dimensions and high-quality materials, this seal helps maintain transmission integrity and prevent leaks.

• Seal Type: Metal with spring for secure fitment
• Sealing Material: Silicone for enhanced durability and resistance
• Bore Diameter: 2.875 inches (73.025 mm)
• Seal Outside Diameter: 2.879 inches (73.127 mm)
• Seal Width: 2.125 inches (9.525 mm)

Technical Details and Specifications

The FAG SS3097 manual transmission seal features a metal spring design that ensures consistent pressure against the shaft, reducing the risk of leaks under various operating conditions. The silicone sealing material offers excellent resistance to heat, oil, and wear, making it suitable for demanding transmission environments. With precise bore and outside diameters, this seal fits tightly within the transmission housing, providing reliable sealing for manual transmissions in vehicles such as the Chevrolet Blazer, GMC Jimmy, Dodge Dart, and Chrysler Imperial.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a range of Chevrolet, Chrysler, Dodge, and GMC models, including:

• Chevrolet Blazer, C10 Suburban, C20 Suburban, K10 Suburban, K20 Suburban
• Chrysler Imperial
• Dodge Dart, Lancer
• GMC Jimmy

Common Issues Addressed by the FAG SS3097 Seal

• Prevents manual transmission fluid leaks
• Reduces contamination from dirt and debris entering the transmission
• Maintains proper lubrication within the transmission system
• Minimizes wear on transmission shafts and components
• Helps avoid costly transmission repairs due to seal failure

Installation Notes and Tips

When installing the FAG SS3097 manual transmission seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or spring. Verify the seal dimensions match the original equipment specifications for your Chevrolet Blazer or Dodge Dart to ensure proper fitment and performance.

Quality Assurance and Warranty

FAG manufactures the SS3097 seal to meet strict quality standards, using durable materials and precise engineering. While specific warranty details are not provided, FAG products are generally backed by manufacturer quality controls to ensure reliable service life in manual transmission applications.
