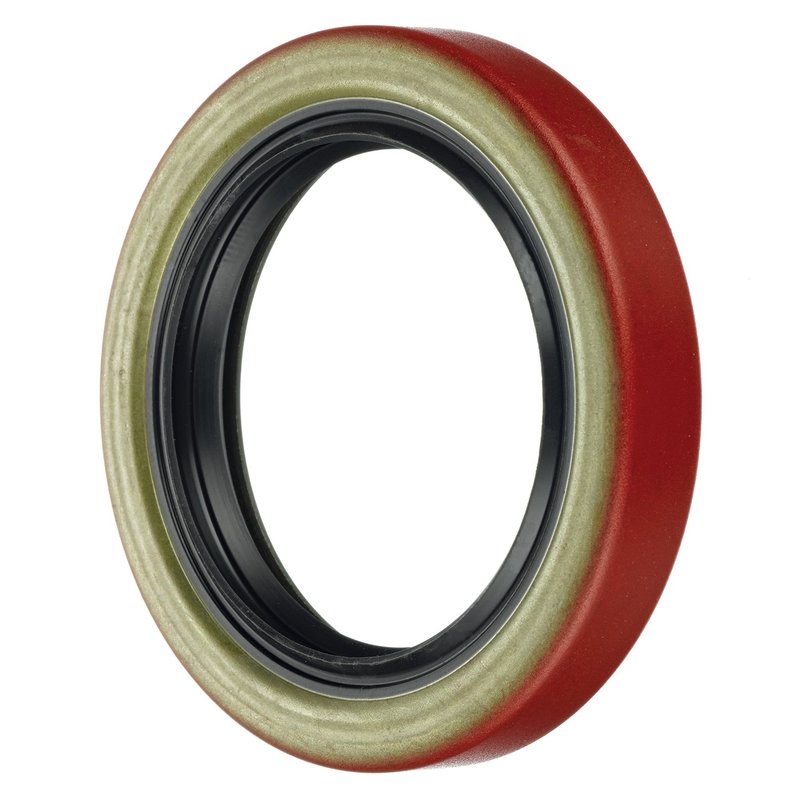

FAG SS3110 Manual Transmission Seal - Front, Rear or Rear Rearward

Overview of FAG SS3110 Manual Transmission Seal

The FAG SS3110 manual transmission seal is engineered for reliable sealing performance in a variety of manual transmissions. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination in vehicles such as Dodge Cherokee, Ford F-150, and Jeep Wagoneer.

• Seal Type: Metal construction with spring, auxiliary lip, and inner shell
• Sealing Material: High-quality nitrile for resistance to oils and wear
• Bore Diameter: 3.061 inches (77.749 mm)
• Seal Outside Diameter: 3.066 inches (77.876 mm)
• Seal Width: 0.5 inches (12.7 mm)
• Compatible with multiple Dodge, Ford, Jaguar, and Jeep models

Technical Details and Specifications

The SS3110 manual transmission seal features a robust metal design incorporating a spring and auxiliary lip to maintain consistent sealing pressure. The inner shell provides structural integrity, while the nitrile sealing material offers excellent resistance to transmission fluids and temperature variations. With precise bore and outside diameters of approximately 3.06 inches, this seal fits tightly within the transmission housing to prevent fluid leakage. The 12.7 mm width ensures a secure fit and long-lasting durability under demanding driving conditions.

Compatible Vehicles and Applications

This transmission seal is compatible with a range of manual transmission vehicles, including popular models such as the Dodge Cherokee, Jeep CJ5 and CJ7, Ford F-150, F-250, F-350, and the Jeep Wagoneer. It also fits various Ford Econoline models (E-100, E-150) and classic Jeep trucks like the J10 and J20. Additionally, it suits Jaguar models XJ6, XJ12, and XJS, making it a versatile choice for manual transmission maintenance and repair.

Common Issues Addressed by the SS3110 Seal

• Prevents transmission fluid leaks that can cause shifting problems
• Protects internal transmission components from dirt and contaminants
• Reduces wear on transmission shafts by maintaining proper lubrication
• Helps maintain consistent hydraulic pressure within the transmission
• Minimizes risk of transmission overheating due to fluid loss

Installation Notes and Tips

When installing the FAG SS3110 seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal shell. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect related transmission components during installation to address any additional wear or damage.

Quality Assurance and Warranty

FAG transmission seals are manufactured to meet strict quality standards, ensuring reliable performance and durability. The SS3110 seal undergoes rigorous testing for material integrity and dimensional accuracy. While specific warranty details may vary, FAG products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
