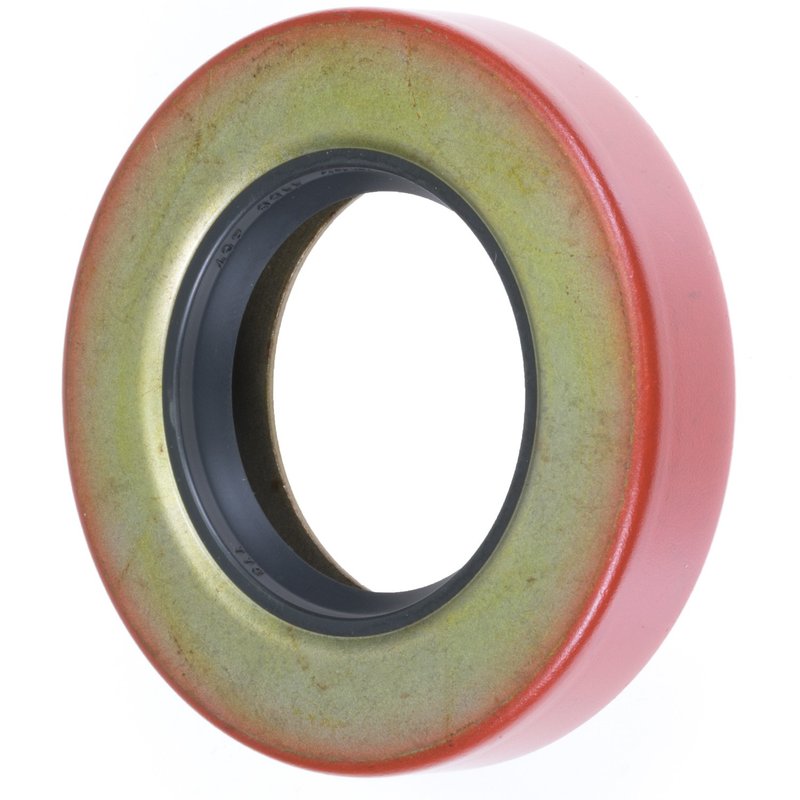

FAG SS3111 Transfer Case Output Shaft Seal - Front or Rear

Reliable Transfer Case Output Shaft Seal for Ford Vehicles

The FAG SS3111 transfer case output shaft seal is engineered to provide durable sealing performance for select Ford trucks and SUVs. Designed specifically for models like the Ford Bronco, F-100, F-150, F-250, and F-350, this seal helps maintain transfer case integrity and prevent fluid leaks.

• Seal Type: Metal with spring and inner shell for secure fitment
• Sealing Material: High-quality Viton for enhanced chemical and temperature resistance
• Bore Diameter: 3.061 inches (77.749 mm) ensuring precise fit
• Seal Outside Diameter: 3.066 inches (77.876 mm) for optimal sealing surface
• Seal Width: 2.125 inches (11.125 mm) providing robust sealing depth

Technical Details and Specifications

The FAG SS3111 transfer case output shaft seal features a metal construction with an integrated spring and inner shell, designed to maintain consistent pressure against the shaft and housing. The use of Viton as the sealing material offers superior resistance to heat, oil, and other automotive fluids, making it suitable for demanding transfer case environments. With precise bore and outside diameters, this seal ensures a tight, leak-free fit for Ford Bronco, F-100, F-150, F-250, and F-350 models, supporting reliable drivetrain operation.

Applications and Problem Solving

• Prevents transfer case fluid leaks that can lead to drivetrain damage
• Reduces contamination ingress to protect internal transfer case components
• Maintains proper lubrication levels for transfer case output shaft
• Addresses wear and tear issues from prolonged use or harsh driving conditions
• Helps avoid costly repairs related to seal failure in Ford Bronco and F-Series trucks

Installation Notes and Tips

When installing the FAG SS3111 transfer case output shaft seal, ensure the transfer case output shaft and bore are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or spring. Verify correct orientation of the seal to maintain optimal sealing performance. It is recommended to inspect related components for wear during installation and replace if necessary to ensure long-term reliability.

Quality Assurance and Warranty

FAG manufactures the SS3111 seal to meet stringent quality standards, using durable materials like Viton and metal spring components to ensure consistent performance. This part is designed for compatibility with specific Ford models, providing a reliable sealing solution for transfer case output shafts. Warranty coverage details should be confirmed with the supplier or manufacturer to ensure protection against defects.
