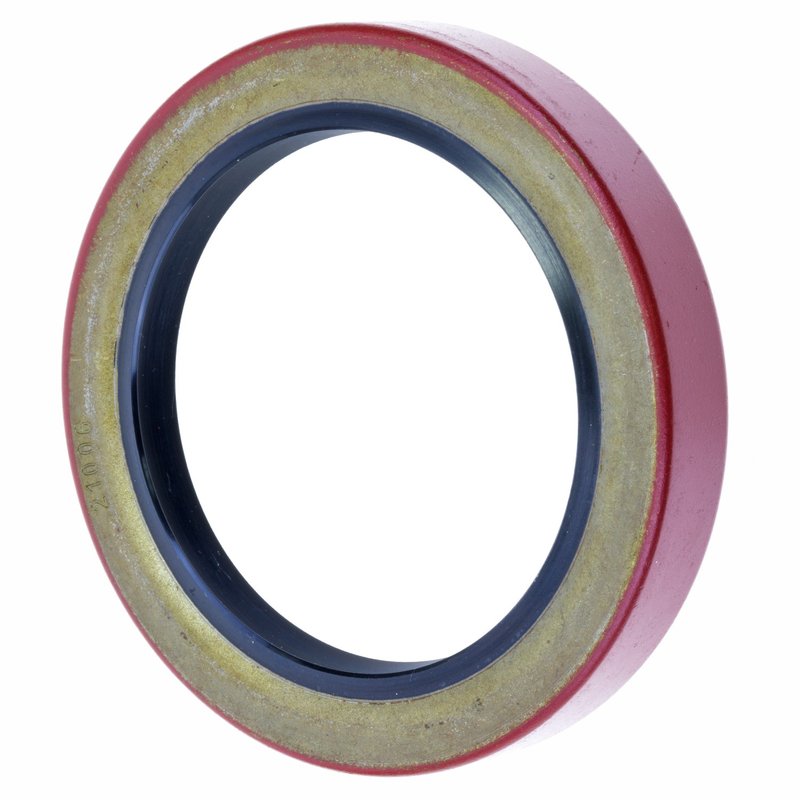

FAG SS3141 Wheel Seal - Front or Rear

FAG SS3141 Wheel Seal for Front Axles

FAG SS3141 is a wheel seal built for front wheel-end service on select Chevrolet and GMC trucks, vans, and Suburban models. It uses a metal case with an auxiliary lip and nitrile sealing material to help keep dirt, dust, and moisture out of the hub area while retaining grease at the bearing.

Key Features

• Part number: SS3141
• Wheel seal for front and front inner positions, depending on application
• Metal seal design with auxiliary lip
• Nitrile sealing material for wheel-end sealing service
• Seal dimensions: 3.000 in bore diameter, 3.005 in outside diameter, 2.188 in width
• Metric dimensions: 76.2 mm bore diameter, 76.327 mm outside diameter, 55.575 mm width
• Cross-references National 8974S and Gates 21771 for the same application

Detailed Description

This FAG wheel seal is engineered to meet vehicle manufacturer specifications for demanding wheel-end applications. The seal is designed to protect bearing components from contamination and help prevent grease loss over the life of the bearing. Compatible With 1967-1992 Chevrolet and GMC front axle applications, including Chevrolet C20, C30, G20, G30, P30, R20, R30, and GMC C2500, C3500, G1500, G2500, G3500, P3500, and R2500/R3500 models, as well as select Suburban, Blazer, Jimmy, and van applications. SS3141 is a direct-fit wheel seal choice for front and front inner positions where the listed dimensions and application notes match.

What This Wheel Seal Helps Address

• Grease leakage at the wheel bearing area
• Contamination from road dirt, dust, and moisture
• Premature wear caused by compromised wheel-end sealing
• Service issues on front hub and bearing assemblies
• Application mismatch when replacing an OE-style wheel seal

Installation Notes and Tips

Verify the seal type, bore diameter, outside diameter, and width before installation. Match the vehicle position exactly, since this part is listed for both front and front inner applications depending on the model. Confirm brake and axle notes such as JD5 brakes, 8600 lb. G.V.W., I-beam suspension, or IFS axle requirements before ordering. Clean the hub and bearing surfaces thoroughly and inspect the bearing and spindle for wear before installing the new seal.

Quality Assurance

FAG designs these wheel seals using high-quality materials and supplier-controlled manufacturing to meet demanding wheel-end specifications. The seal construction is intended to support long-term contamination control and grease retention in service.
