FAG SS3220 Automatic Transmission Seal - Rear

Overview of FAG SS3220 Automatic Transmission Seal

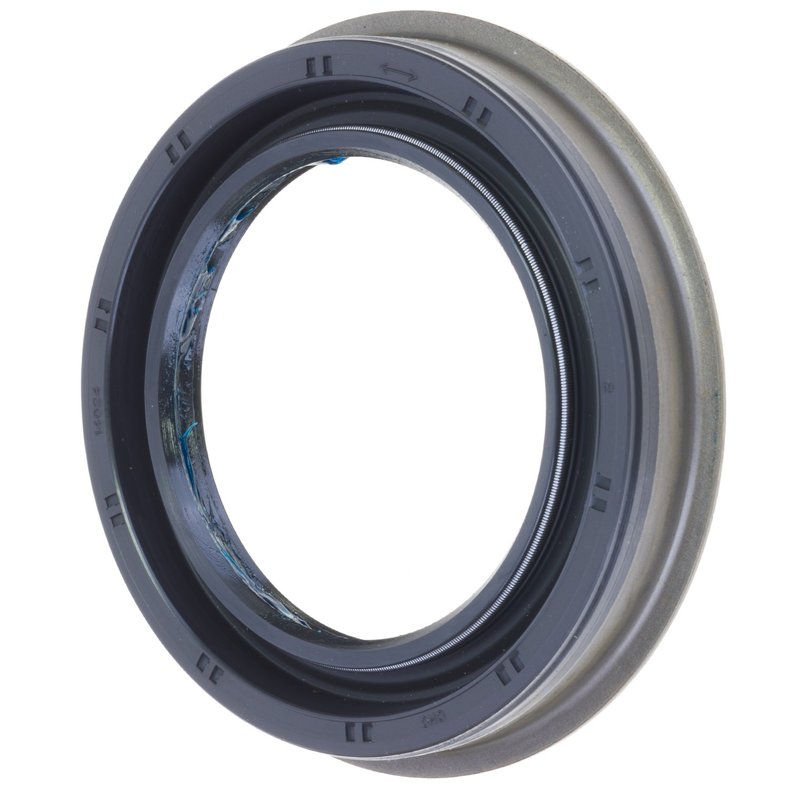

The FAG SS3220 is a precision-engineered automatic transmission seal designed for select Ford vehicles. Crafted with durable Viton sealing material and a rubber spring auxiliary lip, this seal ensures reliable performance and long-lasting protection for your transmission system.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality Viton for chemical and heat resistance
• Bore Diameter: 90.5 mm (3.563 inches)
• Seal Outside Diameter: 90.78 mm (3.574 inches)
• Seal Width: 12.954 mm (2.48 inches)

Detailed Product Description

The FAG SS3220 automatic transmission seal is engineered to maintain optimal sealing integrity in demanding transmission environments. Featuring a rubber seal with a spring and auxiliary lip, it provides a secure fit that minimizes fluid leakage and contamination. The use of Viton as the sealing material offers superior resistance to heat, oil, and other automotive fluids, making it suitable for heavy-duty applications. With precise bore and outside diameters of approximately 90.5 mm and 90.78 mm respectively, and a seal width of nearly 13 mm, this seal fits tightly within the transmission housing to ensure consistent performance.

Compatible Ford Models and Applications

This transmission seal is compatible with a range of Ford vehicles, including the E-150, E-150 Club Wagon, E-350 Club Wagon, E-350 Super Duty, Excursion, Expedition, Explorer, Explorer Sport Trac, F-250, F-250 Super Duty, F-350 Super Duty, and Ranger models. The part number SS3220 is specifically designed to meet the sealing requirements of these vehicles' automatic transmissions.

Common Issues Addressed by FAG SS3220 Seal

• Prevents automatic transmission fluid leaks
• Reduces contamination ingress into transmission components
• Maintains hydraulic pressure within the transmission system
• Minimizes premature wear of transmission parts due to fluid loss
• Helps avoid transmission overheating caused by fluid leakage

Installation Notes and Tips

• Ensure the transmission housing bore is clean and free of debris before installation
• Lubricate the seal lip with compatible transmission fluid to ease installation
• Use proper tools to avoid damaging the seal during insertion
• Verify correct orientation of the auxiliary lip and spring for optimal sealing
• Inspect the transmission shaft and bore for wear or damage prior to seal replacement

Quality Assurance and Warranty

FAG manufactures the SS3220 transmission seal to meet stringent automotive standards, ensuring durability and reliable sealing performance. The use of Viton material and precision engineering supports extended service life under typical operating conditions. Warranty coverage details should be confirmed with the original equipment manufacturer or supplier.
