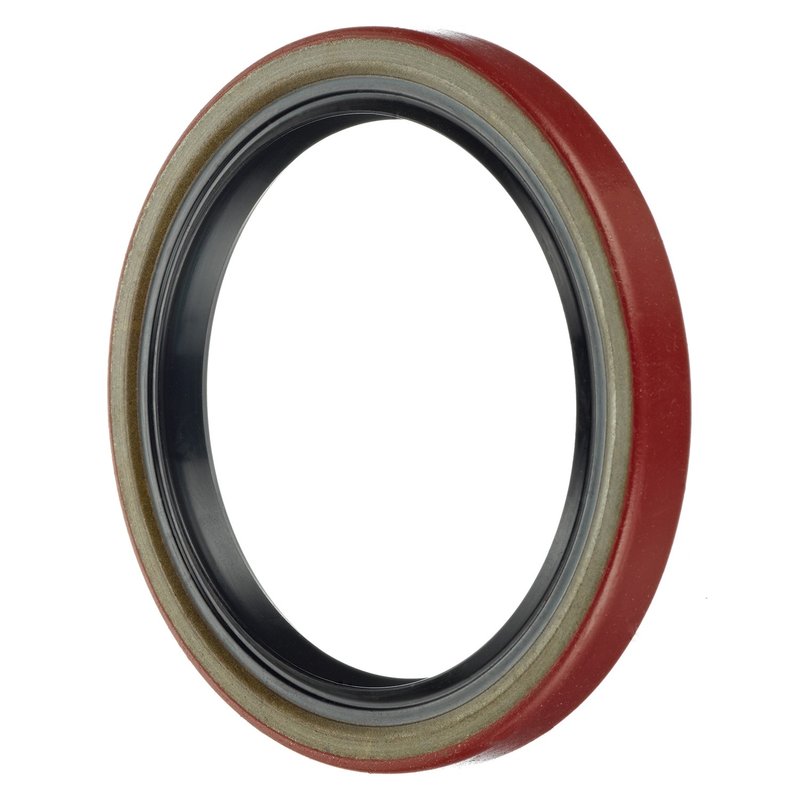

FAG SS3230 Manual Transmission Seal - Front or Rear

Manual Transmission Seal for Classic Truck Fitment

The FAG SS3230 manual transmission seal is built for front-position applications that need reliable sealing around the transmission or axle interface. It uses a nitrile sealing material with a metal case, spring, and auxiliary lip to help retain lubricant and block contamination in demanding driveline service.

Compatible With select Chevrolet, GMC, Jeep, Dodge, and Ford applications from 1965-1991, including front-position service on models such as the Chevrolet Blazer, GMC Jimmy, Jeep Grand Wagoneer, and Ford F-250. The FAG SS3230 is a direct-fit style seal for many older 4x4 and truck platforms.

Key Features

• Part number: SS3230
• Manual transmission seal for front-position applications
• Seal type: metal, spring, and auxiliary lip
• Nitrile sealing material for fluid resistance
• Bore diameter: 3.251 in. / 82.575 mm
• Outside diameter: 3.256 in. / 82.702 mm
• Seal width: 2.5 in. / 9.525 mm
• Cross-references National 471271 and SKF 24898 for the same application

Detailed Description

FAG SS3230 is engineered to meet vehicle manufacturer specifications for sealing performance in wheel-end and transmission-related service. The seal design helps protect internal components from dirt, dust, and moisture while helping prevent grease or lubricant loss over the service life of the bearing or transmission assembly. Its dimensions and sealing profile make it suitable for a range of older truck and SUV platforms, including Chevrolet K10, GMC K1500, and Jeep Cherokee applications where the correct front seal is required.

Because fitment varies by vehicle class, axle design, and position, verify the application details before ordering. This part number is also referenced as global number 413 3230 100 in several listings.

What It Helps Address

• Fluid seepage at the seal interface
• Contamination from road dirt, dust, and moisture
• Lubricant loss from the transmission or wheel-end area
• Wear caused by degraded or hardened sealing material
• Service issues on older front-position driveline assemblies

Installation Notes and Tips

Confirm bore diameter, outside diameter, seal width, and position before installation. Match the seal to the exact axle or transmission design noted in the vehicle listing, especially on 4WD trucks and older Dana or Spicer axle applications. Inspect the shaft or bore for scoring, corrosion, or wear before pressing in the new seal.

Fits 1987-1991 Chevrolet Blazer, Front; 1989-1991 Chevrolet V1500 Suburban, Front; 1989-1991 Chevrolet V2500 Suburban, Front; 1989-1991 Chevrolet V3500, Front; 1987-1991 GMC Jimmy, Front; 1987-1991 GMC V1500 Suburban, Front; 1987-1991 GMC V2500 Suburban, Front; 1987-1991 GMC V3500, Front; 1984-1991 Jeep Grand Wagoneer, Front; 1987-1988 Chevrolet V10 Suburban, Front; 1987-1988 Chevrolet V20 Suburban, Front; 1987-1988 Chevrolet V30, Front; 1981-1988 Jeep J10, Front; 1981-1988 Jeep J20, Front; 1987 Chevrolet V10, Front; 1987 Chevrolet V20, Front; 1987 GMC V1500, Front; 1987 GMC V2500, Front; 1978-1986 Chevrolet K10, Front; 1977-1986 Chevrolet K10 Suburban, Front; 1986 Chevrolet K10 Suburban, Front; 1976 Chevrolet K10 Suburban, Front; 1972-1974 Chevrolet K10 Suburban, Front; 1977-1986 Chevrolet K20, Front; 1977-1986 Chevrolet K20 Suburban, Front; 1975-1986 Chevrolet K5 Blazer, Front; 1981-1986 GMC Jimmy, Front Inner; 1979-1986 GMC K1500, Front; 1979-1986 GMC K1500 Suburban, Front; 1986 GMC K1500 Suburban, Front; 1979-1986 GMC K2500, Front; 1986 GMC K2500 Suburban, Front; 1979-1985 GMC K2500 Suburban, Front; 1975-1984 Dodge Ramcharger, Front; 1977-1984 Dodge W150, Front; 1978-1984 Dodge W150, N/A; 1981-1984 Dodge W250, N/A; 1982-1984 Dodge W250, Front; 1981-1984 Dodge W350, N/A; 1982-1984 Dodge W350, Front; 1980-1983 Ford E-100 Econoline, N/A; 1980-1983 Ford E-100 Econoline Club Wagon, N/A; 1965-1983 Ford F-100, N/A; 1977-1983 Jeep Cherokee, Front; 1977-1983 Jeep Wagoneer, Front; 1975-1980 Dodge W200, N/A; 1975-1980 Dodge W300, N/A; 1974-1980 Jeep J10, Front; 1975-1980 Jeep J20, Front; 1975-1977 Chevrolet K10, Front; 1975-1977 Dodge W100, Front; 1975 Chevrolet K10 Suburban, Front; 1967-1974 Chevrolet K10 Suburban, Front; 1969-1974 Ford Bronco, N/A; 1973-1974 GMC Jimmy, Front; 1974 Jeep Cherokee, Front; 1974 Jeep Wagoneer, Front.

Quality Assurance

FAG designs this seal using high-quality materials and supplier specifications aligned with manufacturer requirements. The SS3230 is built to the dimensional and sealing standards needed for demanding driveline service on classic truck and SUV applications.
