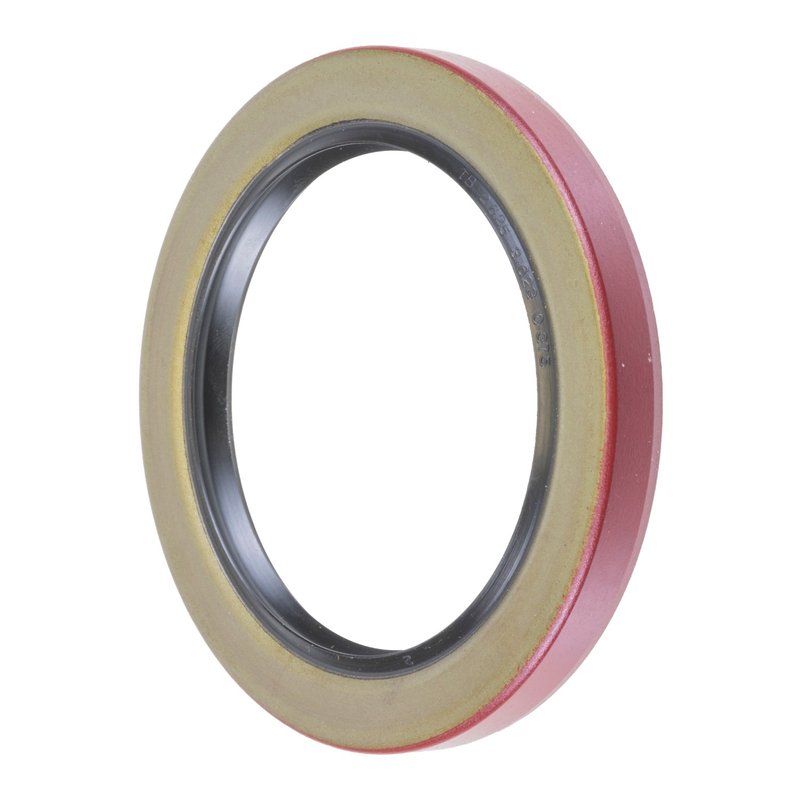

FAG SS3262 Wheel Seal - Rear

FAG SS3262 Wheel Seal for Rear Axle Service

The FAG SS3262 wheel seal is built for rear wheel-end sealing where contamination control and grease retention matter. It is a direct-fit style seal for select Dodge B300, D300, and W300 applications with a Spicer 60 axle and single rear wheels.

With a metal case, spring, and auxiliary lip design, this wheel seal uses nitrile sealing material to help maintain a stable seal at the wheel end. The FAG SS3262 is specified for demanding axle applications where bore size, outside diameter, and seal width must match the hub and bearing assembly precisely.

Key Features

• Wheel seal for rear axle applications
• Seal type: metal, spring, auxiliary lip
• Sealing material: nitrile
• Bore diameter: 3.623 in / 92.024 mm
• Seal outside diameter: 3.628 in / 92.151 mm
• Seal width: 2.625 in / 66.675 mm
• Cross-reference part numbers include National 475458 and SKF 26238

Detailed Description

FAG SS3262 is a wheel seal engineered to protect wheel-end components from dirt, dust, and moisture while helping retain grease inside the bearing assembly. The seal’s metal construction, spring-loaded sealing edge, and auxiliary lip support consistent contact at the sealing surface, while the nitrile material is selected for common driveline sealing demands. This part number is used in rear axle service on 1975-1977 Dodge B300, 1975-1976 Dodge D300, and 1975-1976 Dodge W300 models equipped with a Spicer 60 axle and single rear wheels. For buyers searching by application, FAG SS3262 rear wheel seal for Dodge B300, D300, and W300 is the relevant OE-style service part to match the listed dimensions and axle configuration.

What This Part Helps Address

• Grease loss at the wheel end
• Contamination from road dirt and dust
• Moisture intrusion into the bearing area
• Seal wear from incorrect dimensional match
• Rear axle service on Spicer 60-equipped Dodge trucks

Installation Notes and Tips

Verify the axle configuration, wheel position, and seal dimensions before installation. This part is listed for rear use on 1975-1977 Dodge B300 and 1975-1976 Dodge D300 and W300 models with a Spicer 60 axle and single rear wheels. Clean the hub and sealing surface thoroughly, inspect the bearing and spindle area for wear, and confirm the bore diameter, outside diameter, and width match the original specification before pressing the seal into place.

Quality Assurance

FAG designs wheel seals to meet vehicle manufacturer specifications and works with suppliers to maintain FAG quality standards. The SS3262 is built to the dimensional and material requirements expected for wheel-end sealing in the listed Dodge applications.
