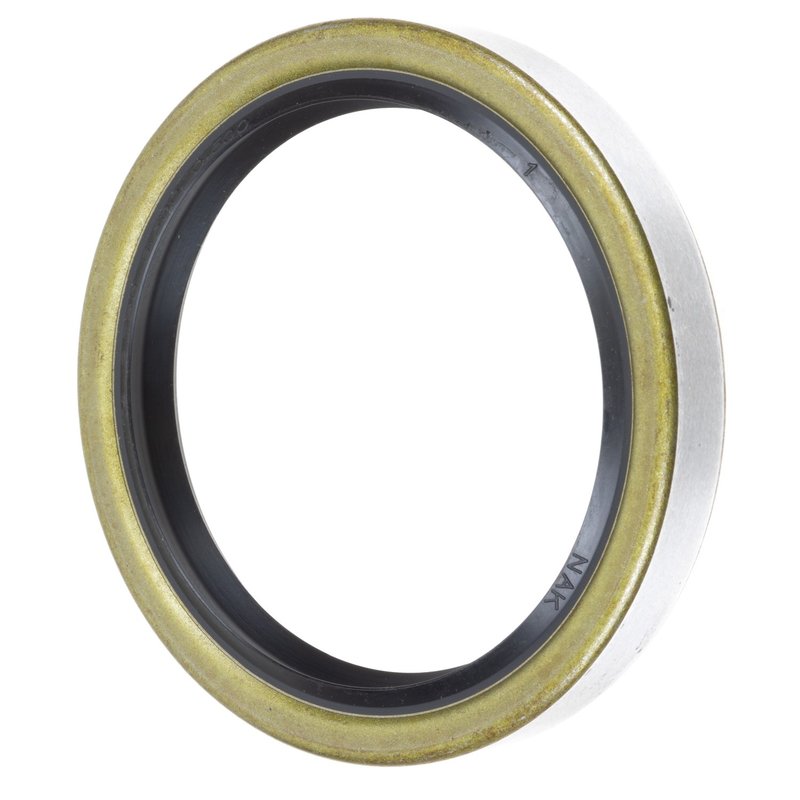

FAG SS3274 Manual Transmission Seal - Rear

Reliable Manual Transmission Seal for Accurate Fitment

The FAG SS3274 manual transmission seal is engineered to provide dependable sealing performance for various vehicle makes and models requiring precise transmission maintenance. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal construction with spring, auxiliary lip, and inner shell for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oil and wear
• Bore Diameter: 3.5 inches (88.9 mm) for accurate shaft fitment
• Seal Outside Diameter: Approximately 3.505 inches (89.027 mm) for proper housing fit
• Seal Width: 2.75 inches (69.85 mm) ensuring adequate sealing surface

Technical Details and Construction

The FAG SS3274 manual transmission seal features a robust metal outer shell combined with a spring-loaded auxiliary lip that maintains consistent pressure against the shaft. The nitrile sealing material offers excellent resistance to transmission fluids and temperature variations, making it suitable for manual transmissions in a range of vehicles. With precise bore and outside diameters, this seal fits securely to prevent fluid leaks and protect internal transmission components from dirt and debris.

Applications and Common Issues Addressed

• Prevents manual transmission fluid leaks that can cause shifting problems
• Protects transmission internals from contamination and premature wear
• Replaces worn or damaged seals to restore proper transmission function
• Helps maintain optimal transmission pressure and performance
• Suitable for vehicles requiring a 3.5 inch bore diameter manual transmission seal

Installation Notes and Tips

When installing the FAG SS3274 seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal shell. Verify the seal orientation matches the original part to maintain proper sealing function. Consult vehicle-specific service manuals for torque specifications and installation procedures.

Quality Assurance and Warranty

FAG manufactures the SS3274 manual transmission seal to meet industry standards for durability and performance. The use of nitrile sealing material and metal spring components ensures long-lasting service life under normal operating conditions. While specific warranty details are not provided, FAG products typically adhere to strict quality control processes to support reliable automotive repairs.
