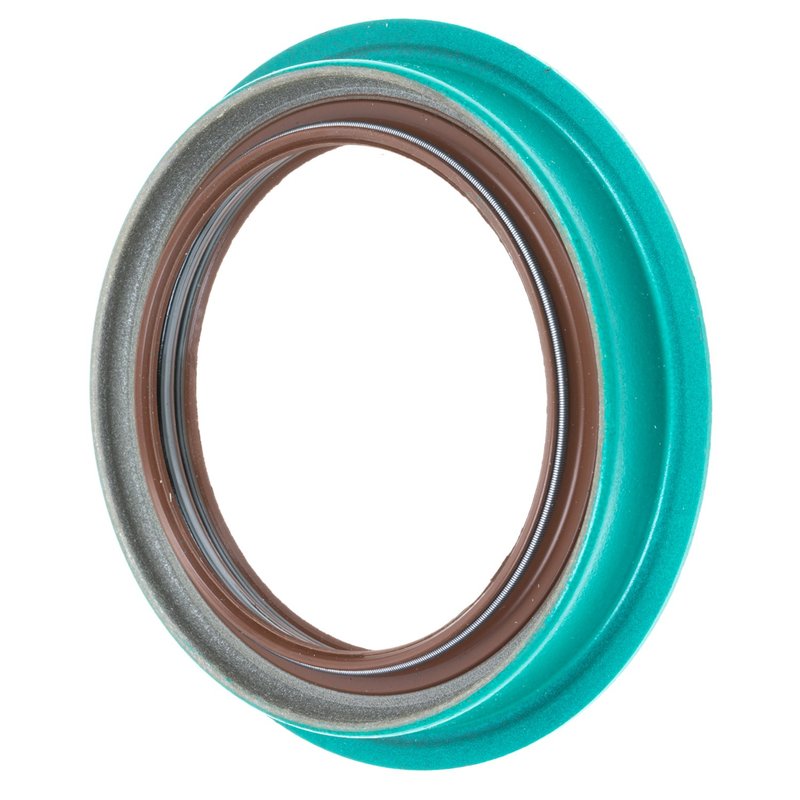

FAG SS3288 Manual Transmission Seal - Rear

Reliable Manual Transmission Seal for Precise Fitment

The FAG SS3288 manual transmission seal is engineered to provide durable sealing performance for a range of vehicle applications. Designed with high-quality Viton sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination in manual transmissions.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: Viton for superior chemical and temperature resistance
• Bore Diameter: 3.543 inches (approx. 89.992 mm)
• Seal Outside Diameter: 3.548 inches (approx. 90.119 mm)
• Seal Width: 2.75 inches (approx. 14.021 mm)

Technical Details and Material Specifications

The SS3288 manual transmission seal from FAG is constructed with a metal case and a spring-loaded auxiliary lip, which maintains consistent pressure against the shaft to prevent fluid leakage. The use of Viton as the sealing material offers excellent resistance to heat, oil, and other automotive fluids, making it suitable for demanding transmission environments. The precise bore and outside diameters ensure a secure fit within the transmission housing, minimizing the risk of seal failure due to improper sizing.

Compatible Vehicles and Applications

This manual transmission seal is compatible with various vehicle makes and models requiring a seal with the specified dimensions and material properties. It is commonly used in manual transmissions where reliable sealing is critical to maintain transmission fluid integrity and prevent contamination.

• Prevents transmission fluid leaks in manual gearboxes
• Protects against dirt and debris ingress into transmission components
• Reduces wear on transmission shafts by maintaining lubrication
• Helps maintain optimal transmission performance and longevity

Installation Notes and Tips

When installing the FAG SS3288 seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal case. Verify the seal orientation matches the original part to maintain proper sealing function. Avoid using excessive force during installation to prevent deformation.

Quality Assurance and Warranty

FAG manufactures the SS3288 manual transmission seal to meet stringent quality standards, ensuring reliable performance in automotive transmission systems. The use of Viton sealing material and metal spring design reflects FAG's commitment to durability and precision. Warranty coverage details should be confirmed with the original equipment manufacturer or supplier.
