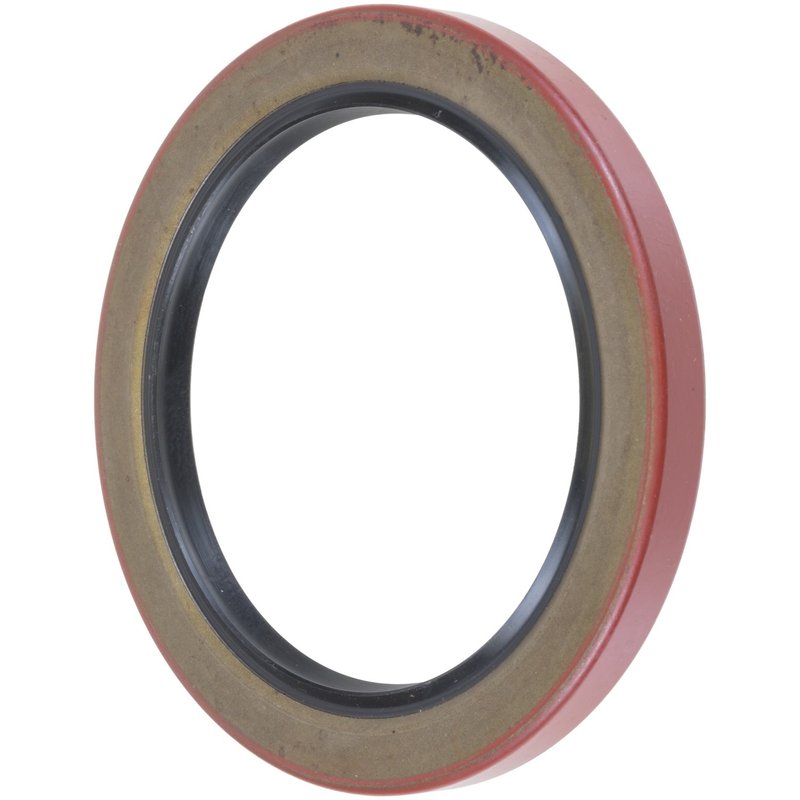

FAG SS3309 Automatic Transmission Oil Pump Seal - Front

Overview of FAG SS3309 Automatic Transmission Oil Pump Seal

The FAG SS3309 is a precision-engineered automatic transmission oil pump seal designed specifically for Chrysler 300 models. Crafted with durable nitrile sealing material and a metal spring inner shell, this seal ensures reliable performance and long-lasting protection against leaks.

• Seal Type: Metal with spring and inner shell construction
• Sealing Material: High-quality nitrile for resistance to transmission fluids
• Bore Diameter: 3.876 inches (98.45 mm)
• Seal Outside Diameter: 3.881 inches (98.577 mm)
• Seal Width: 2.875 inches (11.125 mm)

Technical Details and Specifications

The SS3309 automatic transmission oil pump seal from FAG features a robust metal spring inner shell that maintains consistent sealing pressure under varying operating conditions. The nitrile sealing material offers excellent resistance to heat, oil, and wear, making it suitable for the demanding environment inside the transmission system of Chrysler 300 vehicles. With precise bore and outside diameters, this seal fits securely to prevent fluid leakage and maintain optimal transmission performance.

Compatible Vehicles and Applications

This transmission oil pump seal is compatible with Chrysler 300 models, providing a direct replacement for the original equipment part. It is designed to address common transmission sealing issues such as oil leaks, pressure loss, and contamination ingress, helping to maintain smooth automatic transmission operation.

• Prevents automatic transmission fluid leaks
• Maintains hydraulic pressure within the transmission pump
• Reduces risk of transmission overheating due to fluid loss
• Protects internal transmission components from contamination
• Helps extend transmission service life

Installation Notes and Tips

When installing the FAG SS3309 seal, ensure the transmission oil pump surface is clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal is seated evenly and securely to prevent leaks. It is recommended to inspect related transmission components for wear or damage during replacement.

Quality Assurance and Warranty

FAG manufactures the SS3309 seal to meet strict quality standards, ensuring reliable sealing performance in Chrysler 300 automatic transmissions. The use of nitrile sealing material and metal spring inner shell construction supports durability and resistance to transmission fluids. Warranty coverage details should be confirmed with the parts provider or manufacturer.
