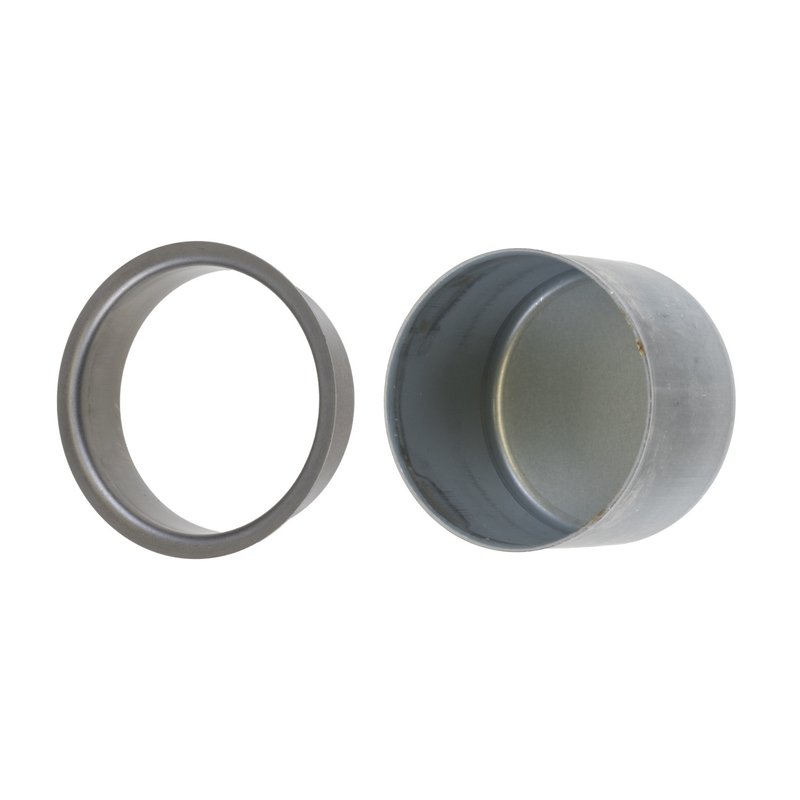

FAG SS3480 Engine Timing Cover Repair Sleeve

Engine Timing Cover Repair Sleeve

FAG SS3480 is an engine timing cover repair sleeve built to restore a worn sealing surface on the shaft. With a 1.575 in. shaft diameter, 1.85 in. flange diameter, and 0.39 in. shaft width, it provides a precise repair dimension for applications that need a clean, consistent seal surface.

Use FAG SS3480 when the original shaft area has wear, grooves, or contamination-related damage that can interfere with sealing performance. This sleeve is sized for a 1 in. installation depth and is engineered to support reliable sealing in demanding engine and drivetrain service.

Key Features

• Engine timing cover repair sleeve for restoring a worn sealing surface
• 1.575 in. shaft diameter for accurate application matching
• 1.85 in. flange diameter for stable positioning during repair
• 0.39 in. shaft width and 0.509 in. overall width
• 1 in. installation depth for controlled fitment
• Designed with FAG quality standards and supplier-controlled material selection

Detailed Description

The FAG SS3480 repair sleeve is intended for service situations where the sealing area has been compromised by wear or surface damage. By creating a renewed contact surface, it helps the seal maintain proper engagement and reduces the chance of leakage caused by an uneven shaft. This part cross-references Dorman - HELP 99153 for the same application. Search terms such as engine timing cover repair sleeve, shaft repair sleeve, and seal surface repair sleeve apply to this part.

Fitment coverage includes a wide range of vehicles, including Toyota Camry, Toyota Avalon, Hyundai Elantra, and BMW 330i applications. It also appears in many front, rear, left, right, and rear inner positions across import and domestic platforms. The part number SS3480 is also referenced in applications tied to Schaeffler global number 413 3480 100.

What It Helps Fix

• Grooved or worn shaft sealing surfaces
• Oil seepage at the timing cover area
• Seal wear caused by contamination or surface damage
• Repeat leaks after seal replacement on a damaged shaft
• Loss of sealing consistency on high-mileage components

Installation Notes and Tips

• Measure the shaft diameter before installation to confirm the 1.575 in. specification.
• Inspect the sealing surface for scoring, corrosion, or debris before fitting the sleeve.
• Verify installation depth and flange clearance so the sleeve seats fully and evenly.
• Use the vehicle position and notes in the fitment data to confirm the correct application.
• For vehicles such as Toyota Camry, Toyota Avalon, and Hyundai Elantra, match the listed year, model, and position exactly.

Quality Assurance

FAG designs this sleeve using high-quality materials and application-specific specifications to meet demanding sealing requirements. The part is built to support consistent fit and sealing performance across the listed vehicle applications, including Toyota Camry, Toyota Avalon, and Hyundai Elantra fitments. Part number SS3480 is identified with Schaeffler Seal global number 413 3480 100.
