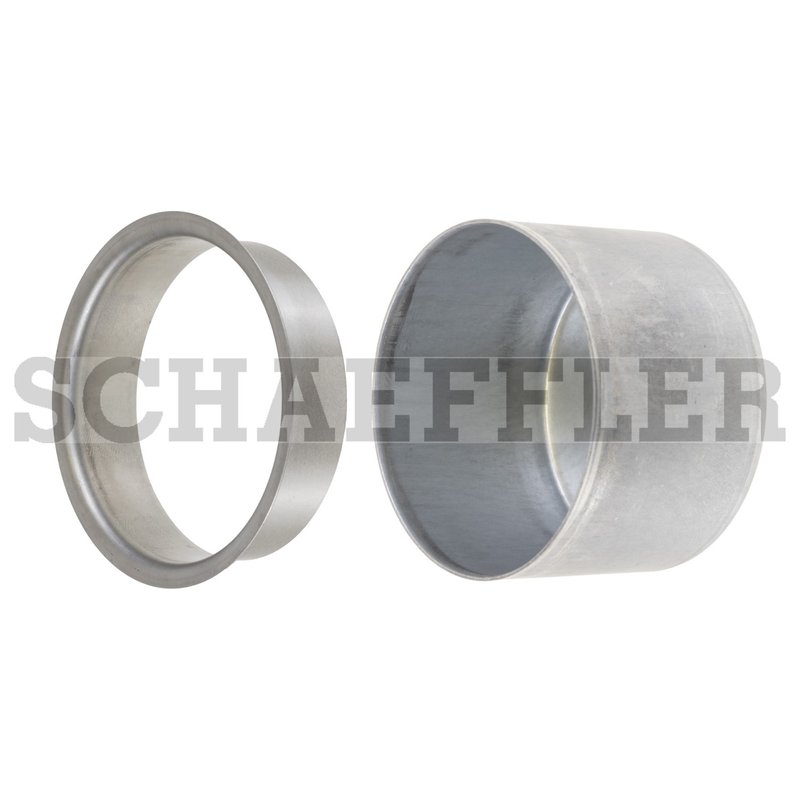

FAG SS3523 Engine Crankshaft Repair Sleeve - Front

Overview of FAG SS3523 Engine Crankshaft Repair Sleeve

The FAG SS3523 Engine Crankshaft Repair Sleeve is engineered for precise restoration of crankshaft dimensions in automotive engines. Designed to meet exacting specifications, this repair sleeve ensures reliable fitment and durability for vehicles requiring crankshaft refurbishment.

• Width on shaft: 0.526 inches (13.36 mm) and 0.683 inches (17.348 mm)
• Installation depth: 1.375 inches (34.925 mm)
• Shaft diameter: 2.375 inches (60.325 mm)
• Flange diameter: 2.75 inches (69.85 mm)
• Part number: SS3523 by FAG

Technical Specifications and Design Details

The SS3523 crankshaft repair sleeve features dual width measurements on the shaft, allowing for a secure and precise fit during installation. The installation depth of 1.375 inches (34.925 mm) provides adequate engagement for stability and performance. With a shaft diameter of 2.375 inches (60.325 mm) and a flange diameter of 2.75 inches (69.85 mm), this sleeve is designed to restore crankshaft surfaces to factory tolerances. These dimensions are critical for maintaining engine balance and preventing premature wear.

Applications and Compatibility

This engine crankshaft repair sleeve is compatible with a range of automotive makes and models that require crankshaft surface restoration. It is particularly suited for vehicles where the crankshaft journals have experienced wear or minor damage, allowing for cost-effective engine repair without full crankshaft replacement. The FAG SS3523 is commonly used in engine rebuilds and maintenance for various passenger cars and light trucks.

• Restores worn crankshaft journals to original dimensions
• Corrects minor surface damage and scoring
• Prevents oil leakage and improves bearing fit
• Supports engine longevity by maintaining proper clearances
• Facilitates cost-effective engine refurbishment

Installation Notes and Recommendations

Proper installation of the SS3523 repair sleeve is essential for optimal engine performance. Ensure the crankshaft surface is thoroughly cleaned and free of debris before fitting the sleeve. Use appropriate tools to press the sleeve evenly onto the shaft to avoid distortion. Verify installation depth and alignment according to manufacturer specifications. It is recommended to inspect bearing clearances after installation to confirm correct fitment.

Quality Assurance and Warranty Information

Manufactured by FAG, a reputable brand in engine components, the SS3523 repair sleeve adheres to stringent quality control standards. Each sleeve undergoes dimensional inspection to ensure compliance with engineering tolerances. While specific warranty details may vary, FAG products typically come with a limited warranty covering manufacturing defects. Consult product documentation or supplier for exact warranty terms.
