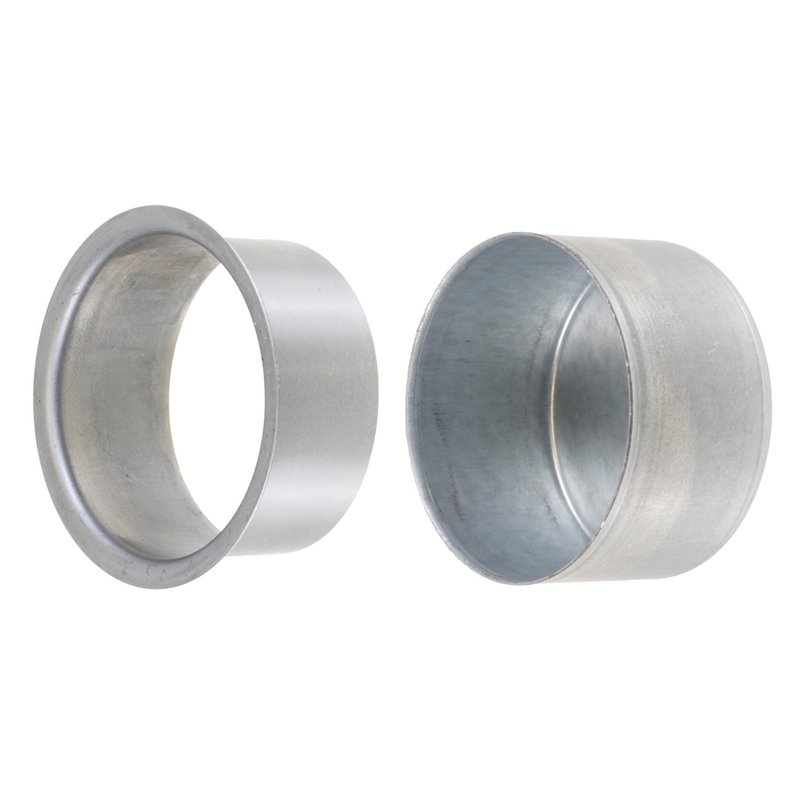

FAG SS3586 Automatic Transmission Torque Converter Repair Sleeve

Overview of FAG Automatic Transmission Torque Converter Repair Sleeve SS3586

The FAG SS3586 Automatic Transmission Torque Converter Repair Sleeve is engineered for precision fitment and durability. Designed to meet the specifications required for various BMW, Chevrolet, Isuzu, Lexus, Nissan, Ram, Toyota, and Volvo models, this repair sleeve ensures reliable performance in transmission applications.

• Width on shaft options: 0.5 inches and 12.7 mm for versatile installation
• Installation depth ranges from 1.359 inches to 34.519 mm for accurate seating
• Width dimensions of 0.625 inches and 15.875 mm to accommodate different shaft profiles
• Shaft diameter compatibility of 2.047 inches and 51.994 mm for secure fit
• Flange diameter measurements of 2.469 inches and 62.713 mm for proper alignment

Detailed Product Description

The FAG SS3586 repair sleeve is a critical component designed to restore the integrity of automatic transmission torque converters. Its precise dimensions, including dual measurements for width on shaft, installation depth, width, shaft diameter, and flange diameter, allow it to fit a range of transmission shafts accurately. This part is compatible with multiple vehicle makes and models such as BMW 335xi and 535xi, Chevrolet Equinox, Lexus LX450, Nissan Sentra and Supra, Ram 2500 and 3500, Toyota Land Cruiser, and Volvo 740 and 780 series. The dual unit measurements in inches and millimeters provide flexibility for technicians working with different standards.

Common Applications and Issues Addressed

• Repairing worn or damaged torque converter shafts in automatic transmissions
• Eliminating slippage caused by improper shaft fitment
• Restoring proper alignment between torque converter and transmission components
• Preventing premature wear of transmission hardware due to loose fittings
• Addressing leaks or mechanical failures related to torque converter sleeve degradation

Installation Notes and Tips

Ensure the shaft and surrounding components are clean and free of debris before installation. Verify the correct width on shaft and flange diameter measurements to match the vehicle’s transmission specifications. Use appropriate tools to press the sleeve evenly onto the shaft to avoid damage. Double-check installation depth to confirm the sleeve is seated properly for optimal performance.

Quality Assurance and Warranty

FAG manufactures the SS3586 repair sleeve to meet stringent automotive standards, ensuring durability and reliable fitment. While specific warranty details are not provided, FAG products typically adhere to industry quality controls and are designed for long-term service in transmission repair applications.
