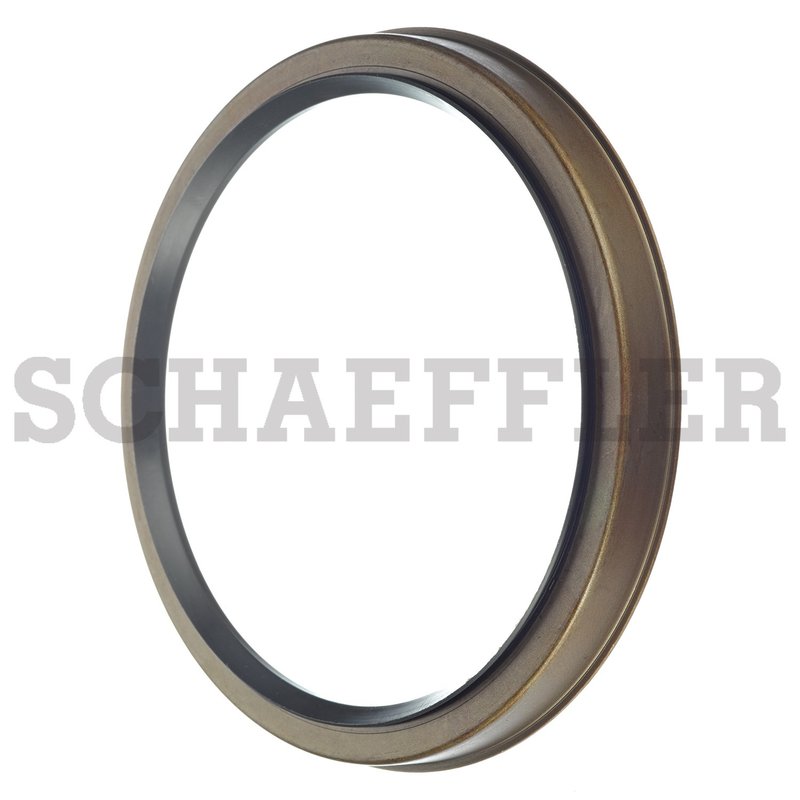

FAG SS3769 Wheel Seal - Front

FAG SS3769 Wheel Seal Overview

FAG SS3769 is a metal wheel seal with nitrile sealing material, built to help protect wheel end components from contamination and retain grease at the bearing. With a 2.726 in. bore diameter, 2.73 in. outside diameter, and 1.797 in. width, it is sized for precise wheel-end sealing service.

For buyers searching wheel seal replacement for FAG SS3769, or an OE-style wheel seal for wheel end maintenance, this part is built around application-specific sealing dimensions and material selection. It is a direct-fit style service part for wheel bearing protection where the correct seal dimensions are required.

Key Features

• Metal wheel seal construction for wheel-end service
• Nitrile sealing material for grease retention and contamination control
• Seal width: 1.797 in. (45.644 mm)
• Bore diameter: 2.726 in. (69.24 mm)
• Seal outside diameter: 2.73 in. (69.342 mm)
• FAG SS3769 part number for catalog matching and replacement lookup

Detailed Description

FAG designs wheel seals to meet vehicle manufacturer specifications using high-quality materials selected for the demands of wheel-end operation. This seal helps keep dirt, dust, and moisture away from the bearing area while helping retain grease over the service life of the bearing. The metal seal design and nitrile sealing element support consistent sealing performance where the correct dimensions matter.

This FAG SS3769 wheel seal is a practical choice for wheel seal replacement on vehicles that require the listed bore, outside diameter, and width. It is also cross-referenced to BBB Industries 17836 for the same application. If you are sourcing a wheel seal for FAG SS3769, verify the dimensions against the original part before installation.

What It Helps Address

• Grease loss at the wheel bearing seal area
• Dirt and dust intrusion into the wheel end
• Moisture contamination around the bearing assembly
• Seal wear from incorrect dimensional match
• Wheel-end service issues requiring a replacement seal

Installation Notes and Tips

Confirm bore diameter, seal outside diameter, and seal width before installation. Clean the hub and bearing surfaces thoroughly, and inspect the wheel end for wear, scoring, or contamination that could affect sealing performance. Use the correct installation method for the application so the seal seats evenly and does not distort.

For vehicle-specific searches, this part is commonly researched as a wheel seal replacement for Honda Civic and similar wheel-end service applications, but final fitment must be verified by dimensions and catalog data. The FAG SS3769 part number should be matched carefully during ordering and service.

Quality Assurance

FAG states that its wheel seals are engineered to meet manufacturer specifications and are designed with supplier input to maintain quality standards for wheel-end sealing service.
