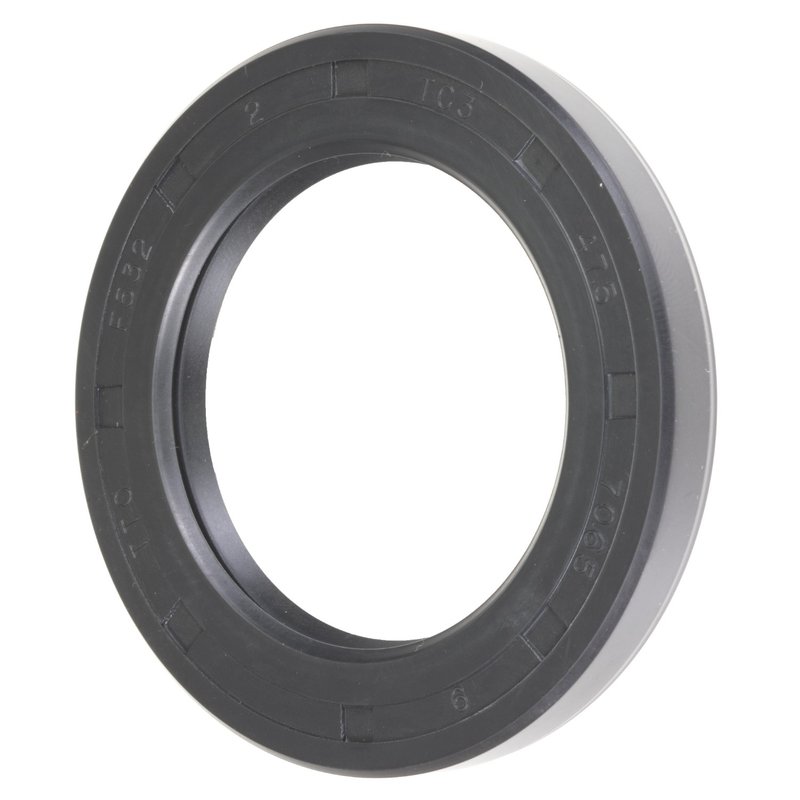

FAG SS3776 Wheel Seal - Rear

FAG SS3776 Wheel Seal for Toyota Land Cruiser

The FAG SS3776 wheel seal is built for rear wheel-end service on the Toyota Land Cruiser, covering model years 1965-1997. It is engineered with a metal, spring, and inner shell design plus nitrile sealing material to help keep contamination out of the wheel end and retain grease at the bearing.

Key Features

• Rear wheel seal for 1965-1997 Toyota Land Cruiser applications
• Seal construction: metal, spring, and inner shell
• Nitrile sealing material for wheel-end sealing performance
• Bore diameter: 2.782 in. / 70.663 mm
• Seal outside diameter: 2.786 in. / 70.764 mm
• Seal width: 1.875 in. / 47.625 mm
• FAG part number SS3776 for direct identification

Detailed Description

FAG SS3776 is a rear wheel seal designed for the Toyota Land Cruiser and specified to match the demands of wheel-end sealing in this application. The seal uses nitrile sealing material with a metal, spring, and inner shell construction to help protect wheel-end components from dirt, dust, and moisture while helping preserve grease around the bearing. This part cross-references National 1959 for the same application.

For buyers searching for a Toyota Land Cruiser rear wheel seal, FAG SS3776 provides the dimensional details needed for application matching: 2.782-inch bore diameter, 2.786-inch outside diameter, and 1.875-inch width. The part number SS3776 is also referenced as global seal number 413 3776 100.

What This Wheel Seal Helps Address

• Grease loss at the wheel bearing area
• Contamination from dirt and road dust
• Moisture intrusion at the rear wheel end
• Seal wear in Toyota Land Cruiser rear axle service
• Incorrect seal sizing when replacing an OE-style wheel seal

Installation Notes and Tips

Confirm the rear position and compare the bore diameter, outside diameter, and width before installation. Match the seal to the specific Toyota Land Cruiser year and rear axle application listed for SS3776, and inspect the hub and bearing surfaces for wear or damage before pressing in the new seal. Clean the sealing area thoroughly so the nitrile lip can seat properly.

Quality Assurance

FAG designs wheel seals to meet vehicle manufacturer specifications and works with suppliers to maintain FAG quality standards. The SS3776 is built for demanding wheel-end sealing requirements in the Toyota Land Cruiser rear application.
