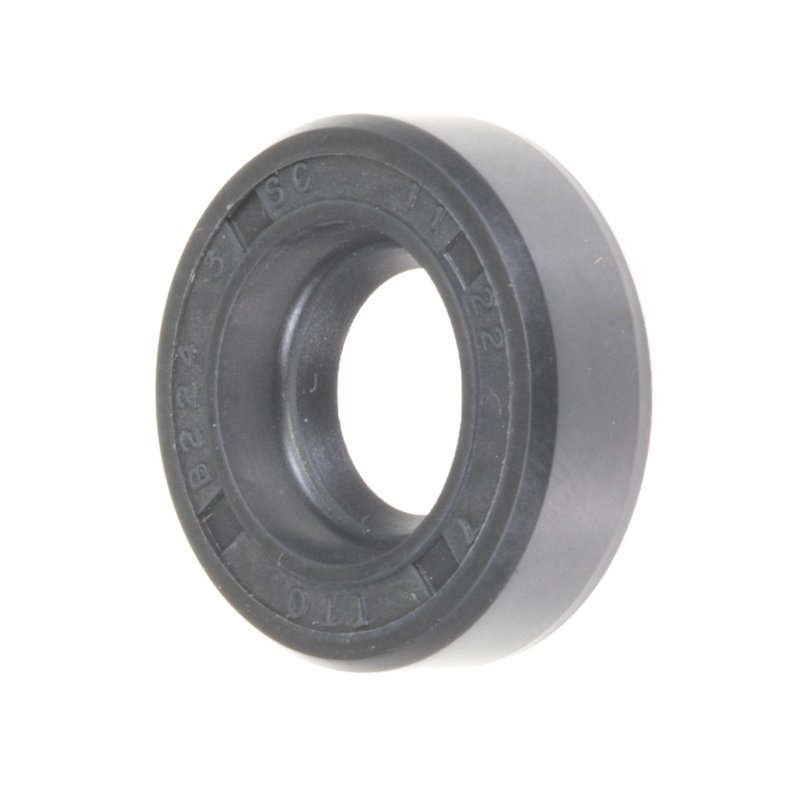

FAG SS3946 Automatic Transmission Shift Shaft Seal

Reliable Automatic Transmission Shift Shaft Seal for Suzuki Vehicles

The FAG SS3946 automatic transmission shift shaft seal is engineered to provide durable sealing performance for Suzuki Sidekick and Vitara models. Designed with nitrile sealing material and a rubber spring seal type, this component ensures effective protection against fluid leaks and contamination.

• Seal Type: Rubber with spring for secure fit
• Sealing Material: Durable nitrile compound
• Bore Diameter: 0.866 inches (21.996 mm)
• Seal Outside Diameter: 0.872 inches (22.149 mm)
• Seal Width: 0.433 inches (7.01 mm)

Technical Details and Specifications

The FAG SS3946 shift shaft seal features precise dimensions to match the transmission requirements of Suzuki Sidekick and Vitara vehicles. The bore diameter of approximately 0.866 inches (21.996 mm) and an outside diameter near 0.872 inches (22.149 mm) ensure a tight, leak-resistant fit. The seal width of 0.433 inches (7.01 mm) provides adequate surface area for effective sealing. Constructed from nitrile, the sealing material offers resistance to transmission fluids and temperature variations, while the rubber spring design maintains consistent pressure on the shaft to prevent leaks.

Compatible Applications and Common Uses

This automatic transmission shift shaft seal is specifically compatible with Suzuki Sidekick and Vitara models, making it suitable for transmission maintenance and repair tasks. It addresses several common issues including:

• Preventing transmission fluid leaks around the shift shaft
• Reducing contamination ingress into the transmission system
• Maintaining proper hydraulic pressure within the transmission
• Minimizing wear on transmission components due to fluid loss

Installation Notes and Recommendations

When installing the FAG SS3946 shift shaft seal, ensure the transmission shift shaft and bore are clean and free of debris. Proper lubrication of the seal with compatible transmission fluid can facilitate installation and reduce initial wear. Use appropriate tools to avoid damaging the seal during insertion. Verify the seal is seated evenly to maintain optimal sealing performance.

Quality Assurance and Warranty Information

FAG manufactures the SS3946 shift shaft seal to meet stringent quality standards for automotive transmission components. The use of nitrile sealing material and a rubber spring design reflects a focus on durability and reliability. While specific warranty details may vary, FAG products typically come with manufacturer-backed quality assurance to support their performance in Suzuki Sidekick and Vitara transmissions.
