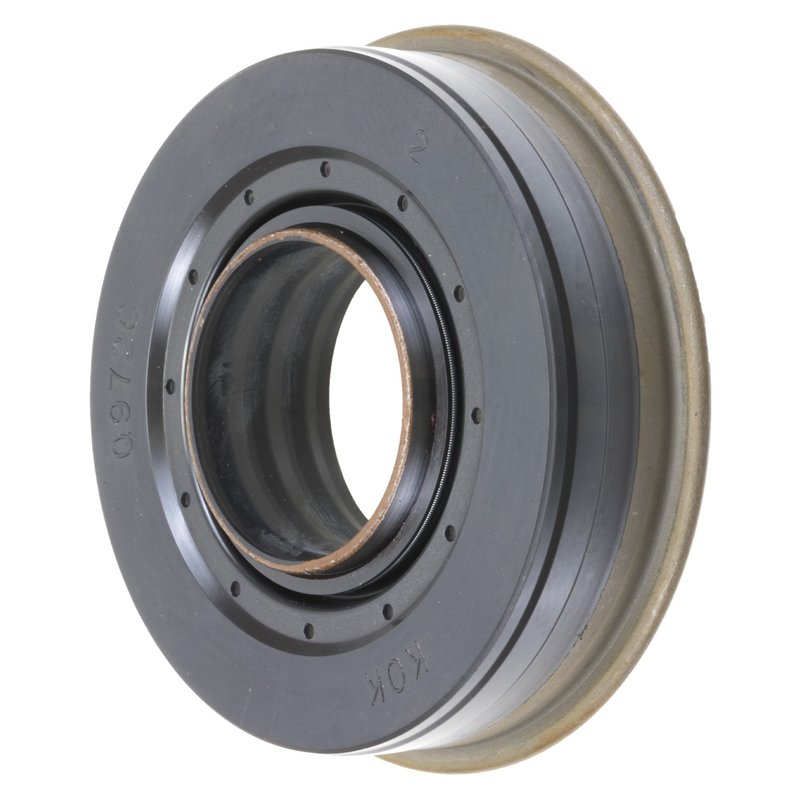

FAG SS6196 Drive Axle Shaft Seal - Front Inner

Overview of FAG Drive Axle Shaft Seal SS6196

The FAG SS6196 drive axle shaft seal is engineered for reliable sealing performance in heavy-duty Chevrolet and GMC trucks. Designed specifically for models like the Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, and Silverado 3500 HD, this seal ensures effective protection against contaminants and fluid leaks.

• Seal Type: Metal construction with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable polyacrylate for long-lasting resistance to wear and fluids
• Bore Diameter: Approximately 3.708 inches (94.183 mm)
• Seal Outside Diameter: Approximately 3.713 inches (94.31 mm)
• Seal Width: 1.625 inches (21.59 mm)

Technical Details and Specifications

The SS6196 drive axle shaft seal features a metal body combined with a spring and auxiliary lip design, providing a secure and tight fit around the axle shaft. The polyacrylate sealing material offers excellent resistance to oil, grease, and other automotive fluids, maintaining integrity under demanding operating conditions. With precise bore and outside diameters, this seal fits tightly within the axle housing to prevent leakage and contamination.

Compatible Vehicles and Applications

This drive axle shaft seal is compatible with select Chevrolet and GMC heavy-duty trucks, including:

• Chevrolet Sierra 2500 HD
• Chevrolet Sierra 3500 HD
• GMC Silverado 2500 HD
• GMC Silverado 3500 HD

It is designed to maintain axle shaft sealing performance in these models, helping to preserve drivetrain reliability and reduce maintenance needs.

Common Issues Addressed by the SS6196 Seal

• Prevents axle shaft oil leaks that can lead to drivetrain damage
• Blocks dirt, dust, and water intrusion into the axle housing
• Reduces premature wear of axle components due to contamination
• Maintains proper lubrication retention for axle bearings and gears
• Helps avoid costly repairs related to seal failure in heavy-duty trucks

Installation Notes and Tips

When installing the FAG SS6196 drive axle shaft seal, ensure the axle housing bore is clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal casing. Verify the seal orientation matches the original part to maintain proper sealing function. Regular inspection during maintenance intervals can help detect early signs of wear or leakage.

Quality Assurance and Warranty

FAG manufactures the SS6196 seal to meet stringent quality standards for driveline components. The use of polyacrylate sealing material and metal spring design ensures durability under heavy-duty conditions. While specific warranty details are not provided, FAG products typically adhere to industry standards for reliability and performance in automotive applications.
