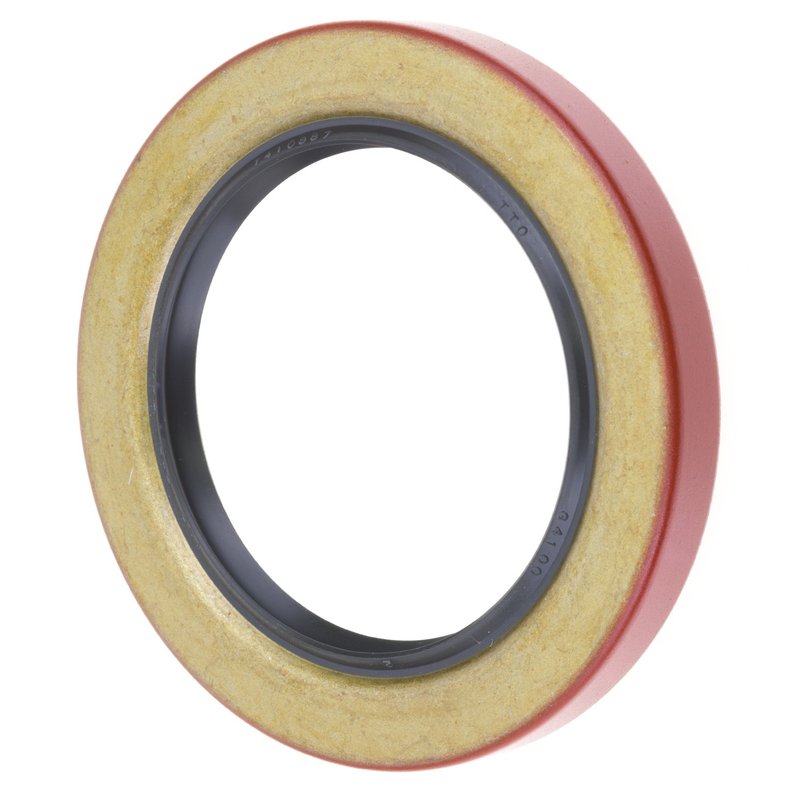

FAG SS6202 Wheel Seal - Rear Inner

FAG SS6202 Wheel Seal for Ford F-250 Rear Inner

The FAG SS6202 wheel seal is built for rear inner wheel-end service on 1953-1969 Ford F-250 applications. It helps keep contamination out of the wheel end while retaining grease at the bearing, which is critical for long-term bearing performance.

• Fits 1953-1969 Ford F-250, rear inner
• Seal type: metal, spring, auxiliary lip, inner shell
• Sealing material: nitrile
• Bore diameter: 3.481 in / 88.417 mm
• Seal outside diameter: 3.486 in / 88.544 mm
• Seal width: 2.375 in / 60.325 mm

Detailed Product Overview

FAG SS6202 is a wheel seal engineered to meet vehicle-specific specifications for demanding wheel-end environments. The seal design uses a metal shell with spring and auxiliary lip construction, along with nitrile sealing material, to help protect the bearing area from dirt, dust, and moisture while helping retain grease over the service life of the bearing. This part number, SS6202, is listed for rear inner use on Ford F-250 trucks from 1953 through 1969, making it a direct search match for classic Ford F-250 rear inner wheel seal replacement needs.

This part cross-references Gates 23756 for the same application.

Common Problems This Seal Helps Address

• Grease loss at the wheel end
• Contamination from road dirt and dust
• Moisture intrusion around the bearing area
• Wear caused by degraded or leaking wheel seals
• Noisy or rough wheel-end operation linked to seal failure

Installation Notes and Tips

Verify the rear inner position before ordering, since wheel seal requirements vary by application and vehicle class. Confirm bore diameter, seal outside diameter, and seal width against the original seal or service specifications before installation. Clean the hub and bearing surfaces thoroughly, and inspect the bearing and sealing surfaces for wear or scoring that could affect seal performance. For Ford F-250 rear inner service, matching the correct seal dimensions is essential for proper fitment.

Quality Assurance

FAG wheel seals are manufactured to meet vehicle manufacturer specifications using high-quality materials selected for wheel-end sealing performance. The SS6202 is designed around the demands of the application and the dimensional requirements listed above.
