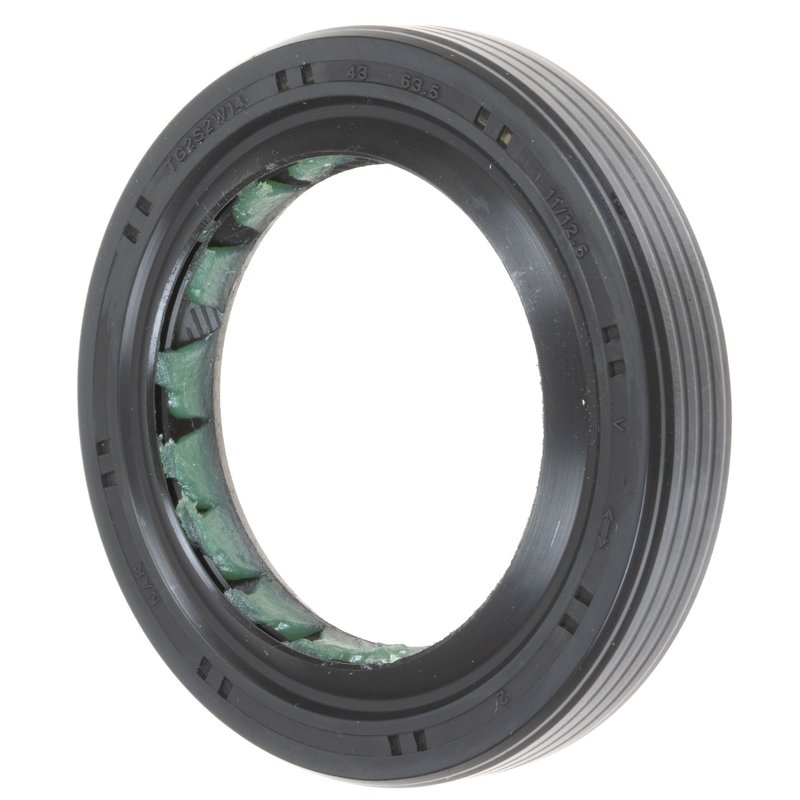

FAG SS6314 Manual Transmission Seal - Rear

Manual Transmission Seal for Ford Mustang

FAG SS6314 is a manual transmission seal built to help protect drivetrain components from contamination and fluid loss. It is specified for rear applications on select Ford Mustang models and uses a rubber seal design with a spring and auxiliary lip for sealing support.

Key Features

• Manual transmission seal for rear application use
• Seal type: rubber with spring and auxiliary lip
• Sealing material: polyacrylate
• Bore diameter: 2.5 in. / 63.5 mm
• Seal outside diameter: 2.505 in. / 63.627 mm
• Seal width: 1.692 in. / 42.977 mm
• FAG SS6314 part number for catalog matching and replacement lookup

Detailed Description

FAG SS6314 is engineered for rear manual transmission sealing on Ford Mustang applications listed below. The seal dimensions are tightly defined for proper fit at the bore and sealing surface, while the polyacrylate sealing material is selected for drivetrain sealing service. This part is also referenced under FAG SS6314 when searching for a rear transmission seal for 2001-2010 Ford Mustang models.

This part cross-references SKF 16909A for the same application.

What It Helps Address

• Transmission fluid seepage at the seal interface
• Contamination from dirt, dust, and moisture entering the sealed area
• Grease or lubricant loss around the bearing or seal area
• Wear-related sealing issues on rear transmission service points

Installation Notes and Tips

• Verify bore diameter, outside diameter, and seal width before installation.
• Inspect the shaft and housing surfaces for wear, scoring, or corrosion.
• Clean the sealing area thoroughly so the lip can seat correctly.
• Use the exact application position listed for the vehicle and year.
• Confirm the replacement part number FAG SS6314 against the original seal before service.

Quality Assurance

FAG designs seals to meet vehicle manufacturer specifications and works with suppliers to maintain its quality standards. This seal is built for demanding wheel-end and drivetrain sealing requirements, with application-specific sizing for the listed Ford Mustang models.

Compatible Vehicles

• Fits 2005-2010 Ford Mustang, Rear. Notes: Schaeffler Seal Global Number 413 6314 100
• Fits 2001-2004 Ford Mustang, N/A
