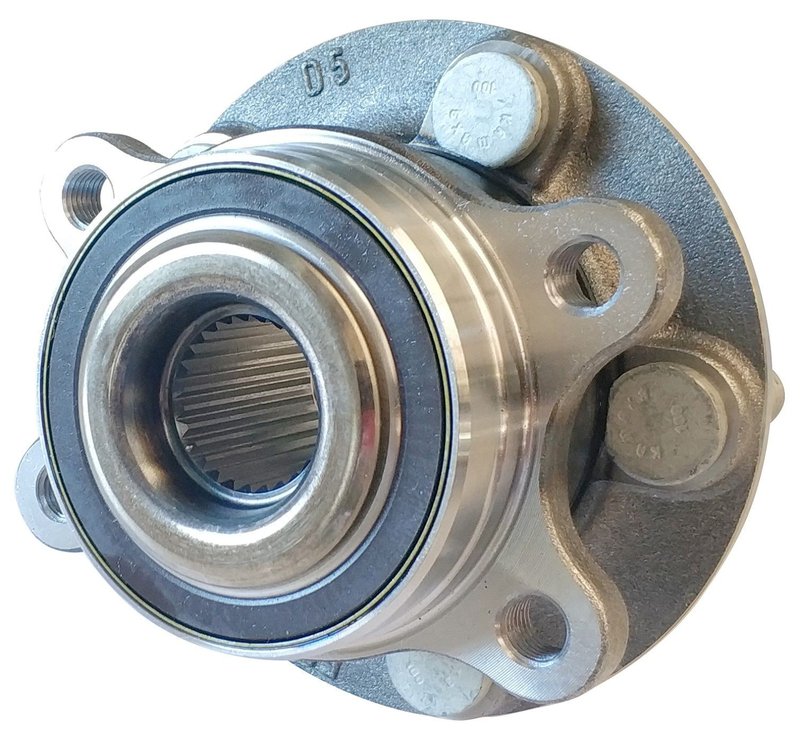

FAG WH1221 Wheel Bearing and Hub Assembly - Front or Rear
OE Quality 60-Day Returns
FAG

FAG WH1221 Wheel Bearing and Hub Assembly - Front or Rear

Brand FAG WH1221
Position Front and Rear
Bolt Hole Diameter 107.95
Bolt Hole Diameter 4.250
Brake Pilot Diameter 2.500
Brake Pilot Diameter 63.5
Wheel Stud Quantity 5
Hub Pilot Diameter 3.425
Hub Pilot Diameter 87
Hub Bolt Hole Diameter 113.5
Hub Bolt Hole Diameter 4.469
ABS Tone Ring Included [gen_1,2,3] multipol encoder (mpe)
Flange Diameter 136
Flange Diameter 5.354
Inlet Mounting Hole Quantity 4
Outer diameter wheel centering 1 2.491
Outer diameter wheel centering 1 63.26
Width wheel flange - knuckle flange 1.890
Width wheel flange - knuckle flange 48
Fits Ford and Lincoln · 30 vehicles

OE-style replacement. Precision-engineered wheel hub assembly for stable wheel support and accurate fit.

ABS encoder included. Multipole tone ring design supports modern wheel speed sensing systems.

Schaeffler engineering. Built with quality materials for dependable hub performance and road contact.

Cross-references SKF BR931102, Timken HA590611 and 513394 for the same application. See all 13.

$132.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $132.86
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options

Wheel Hub Assembly Overview

The FAG WH1221 wheel bearing and hub assembly is built for drivers who need a precise replacement hub with stable wheel support and consistent road contact. It is a fitment-based solution for Ford Edge, Ford Fusion, Lincoln MKX, Lincoln MKZ, and Lincoln Nautilus applications across the listed model years.

Using Schaeffler engineering and quality materials, this hub assembly is made to support smooth wheel rotation and dependable performance in everyday driving. The WH1221 part number is also referenced in interchange listings for related OE-style applications.

Key Features

  • Wheel bearing and hub assembly for driveline and axle service.
  • Includes an ABS tone ring with a multipole encoder design.
  • Five wheel studs for the listed applications.
  • Precision hub dimensions for proper wheel and brake component alignment.
  • Fits front and rear positions on select Ford and Lincoln vehicles.

Detailed Description

The FAG WH1221 is a wheel bearing and hub assembly engineered for direct replacement use on the listed Ford and Lincoln platforms. Fitment includes 2015-2020 Ford Edge, 2017-2019 Ford Fusion, 2016-2018 Lincoln MKX, 2017-2019 Lincoln MKZ, and 2019-2021 Lincoln Nautilus in the positions shown. The WH1221 part number appears in cross-reference listings with Monroe Shocks & Struts 172286 and Timken HA590611 for the same application.

Built with Schaeffler precision, this assembly uses a multipole encoder ABS tone ring and hub dimensions that support correct wheel centering and brake interface alignment. It is a practical choice when replacing a worn hub on a Ford Edge or Lincoln MKX where bearing noise, looseness, or ABS-related concerns are present.

Common Repair Reasons

  • Wheel bearing noise or growling during driving.
  • Excessive hub play or looseness at the wheel.
  • ABS warning concerns related to hub sensor encoding.
  • Uneven wheel rotation or vibration from hub wear.
  • Brake and wheel alignment issues tied to hub deterioration.

Installation Notes

Verify the vehicle position, stud count, and hub dimensions against the existing part before installation. Confirm ABS encoder compatibility and match the listed fitment exactly for the Ford Edge, Ford Fusion, Lincoln MKX, Lincoln MKZ, or Lincoln Nautilus application. Professional installation is recommended for proper torque, alignment, and sensor system verification.

Quality Assurance

Schaeffler hub assemblies are produced with precision engineering and high-quality materials to support reliable operation and long service life. The WH1221 part number is backed by the brand's focus on accurate fit and stable wheel support for the specified applications.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2021LincolnNautilus———FrontSchaeffler BRG Global Number 713 1221 100
2021LincolnNautilusAWD——RearSchaeffler BRG Global Number 713 1221 100
2020FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
2020FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2020LincolnNautilus———FrontSchaeffler BRG Global Number 713 1221 100
2020LincolnNautilusAWD——RearSchaeffler BRG Global Number 713 1221 100
2019FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2019FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
2019FordFusion—2.7LV6Front14mm Wheel Lug Stud; Schaeffler BRG Global Number 713 1221 100
2019LincolnMKZ———FrontSchaeffler BRG Global Number 713 1221 100
2019LincolnNautilusAWD——RearSchaeffler BRG Global Number 713 1221 100
2019LincolnNautilus———FrontSchaeffler BRG Global Number 713 1221 100
2018FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
2018FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2018FordFusion—2.7LV6Front14mm Wheel Lug Stud; Schaeffler BRG Global Number 713 1221 100
2018LincolnMKX———FrontSchaeffler BRG Global Number 713 1221 100
2018LincolnMKXAWD——RearSchaeffler BRG Global Number 713 1221 100
2018LincolnMKZ———FrontSchaeffler BRG Global Number 713 1221 100
2017FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
2017FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2017FordFusion—2.7LV6Front14mm Wheel Lug Stud; Schaeffler BRG Global Number 713 1221 100
2017LincolnMKX———FrontSchaeffler BRG Global Number 713 1221 100
2017LincolnMKXAWD——RearSchaeffler BRG Global Number 713 1221 100
2017LincolnMKZ———FrontSchaeffler BRG Global Number 713 1221 100
2016FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
2016FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2016LincolnMKXAWD——RearSchaeffler BRG Global Number 713 1221 100
2016LincolnMKX———FrontSchaeffler BRG Global Number 713 1221 100
2015FordEdge———FrontSchaeffler BRG Global Number 713 1221 100
2015FordEdgeAWD——RearSchaeffler BRG Global Number 713 1221 100
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
SKF — BR931102Timken — HA59061151339418646262006558210250022831167131221100E1GC-2C300-A2AE1GC-2C300-A2BE1GC-2C300-A2CK2GC-2C300-A2BTM513394
