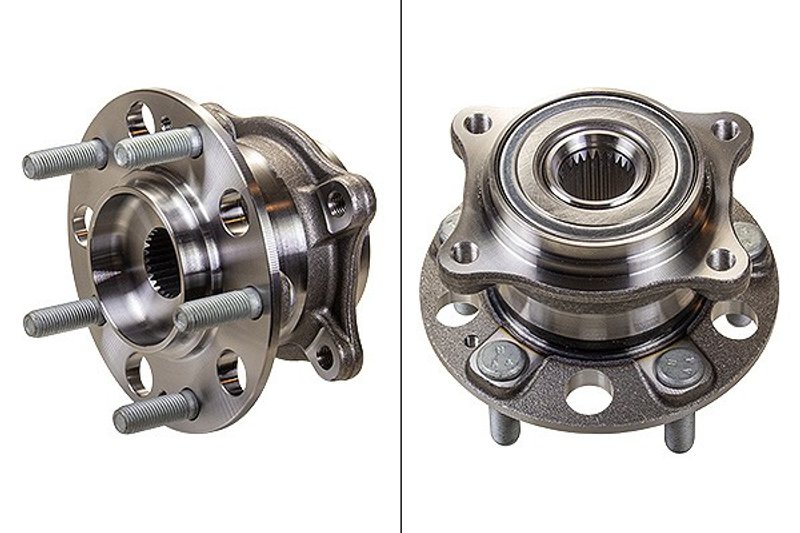

FAG WH1235 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Hyundai and Kia

The FAG WH1235 wheel bearing and hub assembly is engineered to meet the specific requirements of Hyundai Sportage and Kia Tucson models. Designed for durability and precise fitment, this component ensures smooth wheel rotation and vehicle stability.

• Compatible with Hyundai Sportage and Kia Tucson
• 5 wheel studs with 114.3 mm (4.500 inch) bolt hole diameter
• Brake pilot diameter of 76 mm (2.992 inches) for accurate brake rotor alignment
• Hub pilot diameter of 86 mm (3.386 inches) for secure hub centering
• Flange diameter of 139 mm (5.472 inches) with 4 inlet mounting holes
• Non-ABS tone ring design suitable for specific vehicle configurations
• Wheel flange width of 59 mm (2.323 inches) for proper knuckle flange fit

Technical Specifications and Design Details

The FAG WH1235 wheel bearing and hub assembly features a 5-stud configuration with a bolt hole diameter of 114.3 mm (4.500 inches), ensuring compatibility with the wheel mounting pattern of Hyundai Sportage and Kia Tucson vehicles. The brake pilot diameter measures 76 mm (2.992 inches), providing precise alignment for brake rotors, which is critical for consistent braking performance. The hub pilot diameter of 86 mm (3.386 inches) centers the hub securely on the axle, reducing vibration and enhancing wheel stability.

The flange diameter of 139 mm (5.472 inches) includes four inlet mounting holes, facilitating a secure attachment to the vehicle’s knuckle. The wheel flange width of 59 mm (2.323 inches) matches the knuckle flange width, ensuring a proper fit and reliable operation. This assembly is designed without an ABS tone ring, making it suitable for non-ABS equipped versions of the specified vehicles.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Hyundai Sportage and Kia Tucson
• Eliminates wheel noise caused by bearing wear or failure
• Resolves wheel vibration and instability issues
• Restores proper brake rotor alignment and performance
• Prevents premature tire wear due to hub misalignment

Installation Notes and Tips

When installing the FAG WH1235 wheel bearing and hub assembly, ensure the mounting surface is clean and free of debris to achieve proper seating. Torque the wheel studs and mounting bolts to manufacturer specifications to avoid premature wear or loosening. Verify the absence of an ABS tone ring matches the vehicle’s sensor system to prevent compatibility issues. It is recommended to inspect related suspension and braking components during installation for comprehensive maintenance.

Quality Assurance and Warranty

FAG manufactures the WH1235 wheel bearing and hub assembly to meet stringent quality standards, ensuring reliable performance and durability. While specific warranty details are not provided, FAG products typically undergo rigorous testing to comply with OEM specifications for Hyundai and Kia vehicles. Using this assembly helps maintain vehicle safety and drivability.
